Impulse TENS D5 Digital TENS Unit
Discontinued
This item has been discontinued by the manufacturer and is no longer available.
Sale:
$79.10
1
/ Each
Frequently Bought Together
Total Price:
$99.05
Recommended Accessories
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description

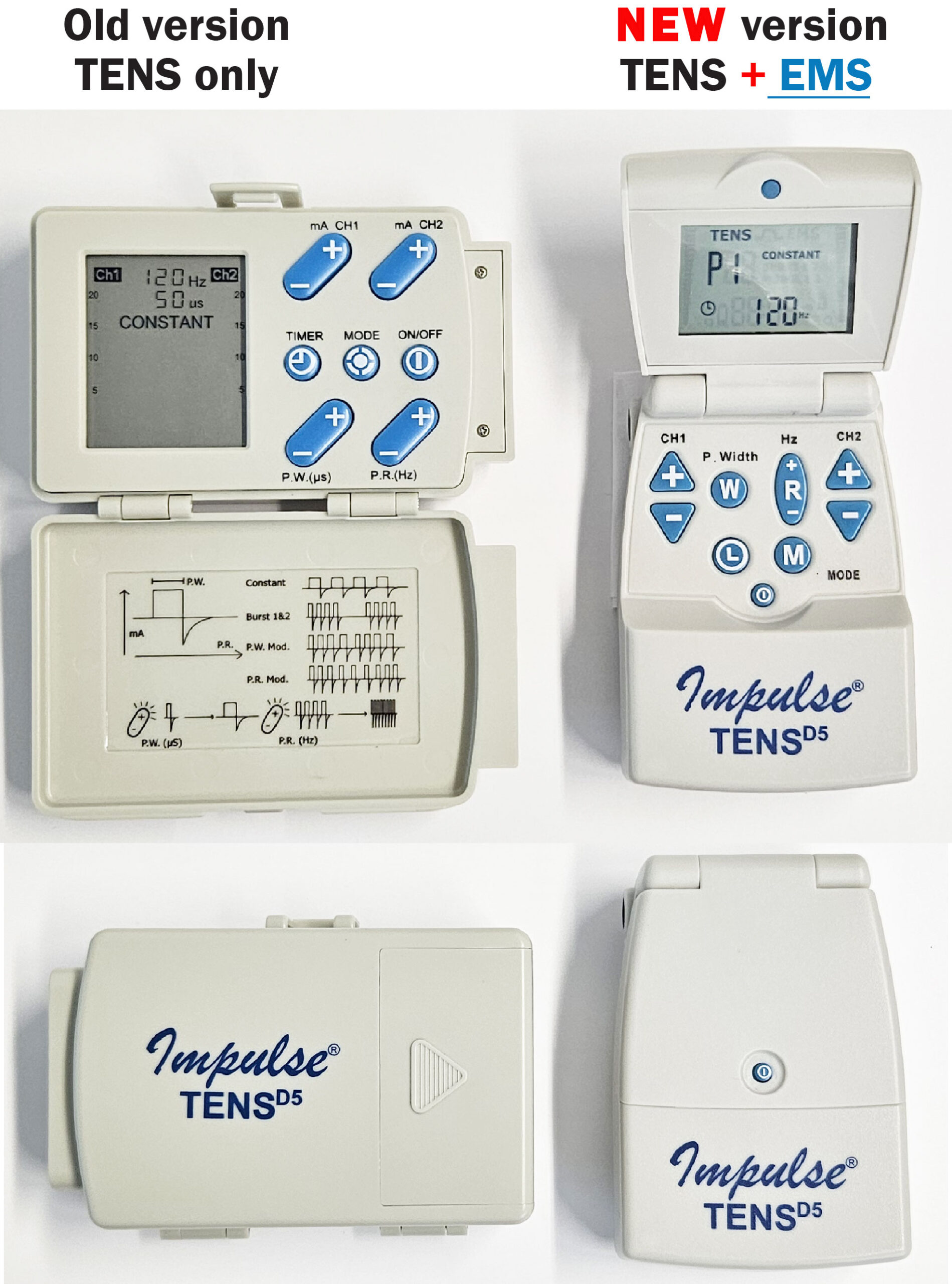

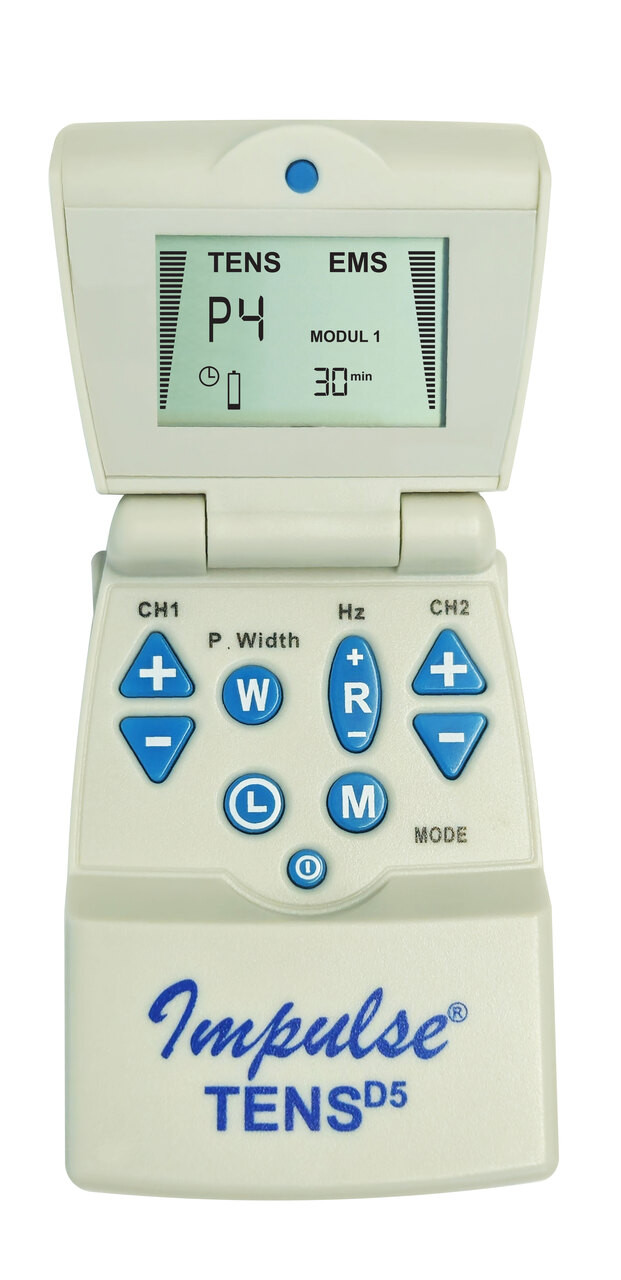

Introducing the next generation in Electro-Therapy Devices from BioMedical Life Systems, the Impulse® TENS D5. Designed with a sleek "Flip Style" that protects its LCD screen and control buttons from dust and grime, this portable dual channel transcutaneous electrical nerve stimulator (TENS) and electronic muscle stimulator (EMS) offers effective pain relief and muscle stimulation for improved performance.
Features
- Flip Style design for enhanced durability and cleanliness
- Dual channel TENS and EMS functionality
- Patient Compliance Meter (PCM) to track therapy usage
- Preset programs customizable by physicians
- Includes everything needed for therapy sessions
- 2 Year Limited Warranty
Product Specifications
| Channels: | Dual |
|---|---|
| Electrodes: | 4 |
| Waveform: | Symmetrical biphasic square wave |
| Amplitude: | 0-100 mA (adjustable) |
| Pulse Rate: | 1- 120 Hz (adjustable) |
| Pulse Width: | 25 – 250 µS (adjustable) |
| Continuous: | Constant Stimulation |
| Pulse Rate Modulation: | Pulse Rate modulates from 100Hz down to 20Hz over a 15-second cycle (7.5 seconds down 7.5 seconds up; Pulse width is adjustable |
| Pulse Width Modulation: | Pulse width modulates from 125-250µS and backs down over a 5-second cycle (2.5 seconds down, 2.5 seconds up); Pulse Rate is adjustable |
|---|---|
| Burst I: | One second ON. One second OFF; Pulse Rate and Pulse Width are adjustable |
| Burst II: | Seven Pulses per burst; 2 bursts per second; Pulse Width is adjustable. |
| Power Supply: | 2 AA Batteries, Type LR6 |
| Size: | 4.2” x 2.9” x 1.4” (10.7 cm x 7.4 cm x 4 cm) |
| Weight: | 3.35 oz (94.97 grams) |
| Resistance Load: | Data was recorded across a 500-ohm resistance load |
| Warranty: | 2 Year Limited |
See any errors on this page? Let us know
Frequently Asked Questions (FAQs)
The device comes with a 2-year limited warranty from BioMedical Life Systems.
Yes, it functions as both a TENS unit for pain relief and an EMS unit for muscle stimulation.
The PCM feature allows you to lock in your favorite programs set by your physician and keeps track of the hours used for each therapy session.
