Pre and Post Vacuum Autoclave
In Stock
Usually ships in Drop Ship
Sale:
$24,500.00
1
/ Each
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description
The Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave is an 85-liter autoclave sterilizer that's designed for large clinics and ASC's. It produces hospital-grade sterilization with a medium load capacity and is ideal for medical clinics, dental clinics, and operating rooms.
As the name suggests, the Tuttnauer 3870HSG-WS Pre and Post Vacuum Autoclave contains a built-in vacuum system designed for fractionated pre-vacuum air removal and post-vacuum drying. This removes air pockets from the chamber to ensure full steam sterilization on the entire load. The post-vacuum process dries the load efficiently for a bone-dry finish.
The HSG-WS model specifically has been designed for water saving, through an efficient recycling system. In total, it will utilize only five liters of tap water per day. In terms of utility connection, it can be hooked up to existing utilities for distilled water, tap water, and electricity, or can be independent of utilities with only a power connection needed. With the independence feature, the water reservoirs must be manually filled prior to cycles.
Safety features include double-locking doors to prevent accidental openings while the chamber is pressurized, as well as a control lock-out switch that won't start a cycle until the door is locked.
Quality Standards:
- ISO 9001:2015 - Quality Management Systems.
- EN ISO 13485:2016 Quality Management System – Medical Devices.
- In compliance with 21 CFR part 820 & part 11.
Directives:
- MDD 93/42/EEC amended in Directive 2007/47/EEC.
- PED 2014/68/EU - Pressure Equipment Directive.
- 2012/19/EU WEEE and 2017/2102 RoHS.
Technical Standards:
- EN 285: 2015 Large steam sterilizer.
- EN 61010-1: 2010.
- EN 61326-1: 2013.
- EN 61010-2-40: 2015.
- FDA Approved.
- ANSI/AAMI/ST8:2013 (R2018).
- ANSI/AAMI - ST55:2016.
- ASME Code section I and section VIII. Div.I.
Features

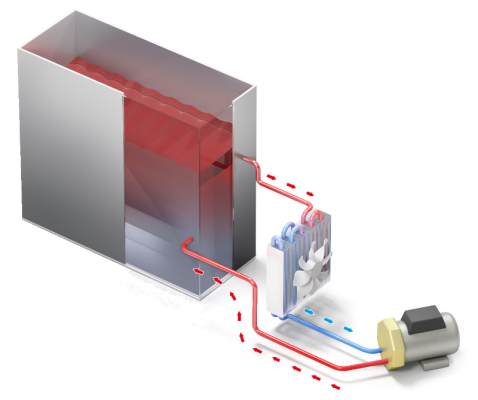

- Pre & Post Vacuum Performance: Built-in vacuum pump used for fractionated pre-vacuum air removal that eliminates air pockets from all load types.
- Plug & Play: Independent Mode - no need to connect the autoclave to the building utilities for distilled water, tap water, or drain.
- Green: Water Saving System – up to 5 liters of tap water per day only.

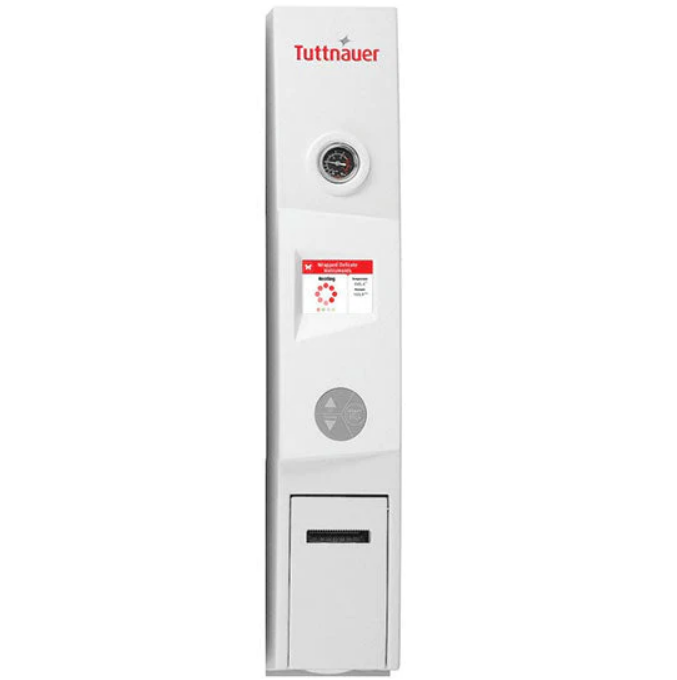

- Easy to Use: Multi-colored display and easy 3-button pad to easily browse pre-programmed sterilization cycles and user directories with a built-in alpha-numeric printer.
- Cost Effective: Rounded chamber allows for economic performance, without compromising efficiency.
- Sleep Mode: The control system switches off while not in use. The generator remains active 24 hours per day!
- Low Rate Cycle: You can run your sterilizer after work hours, by setting a delayed start time.
- Compact Design: High-capacity autoclave which does not require a lot of space. It fits through standard doorways.
- For medical clinics, dental clinics, and operating rooms.
- Built-in vacuum system designed for pre-vacuum air removal and post-vacuum drying.
- Uses up to five liters of tap water per day.
- Can be connected to utilities for water, or stand independently and be manually filled with water.
- Double-locking doors and control lock-out switch prevent accidental openings.
Product Specifications
| Chamber Dimensions: | 15.2" x 29.9" |
|---|---|
| Chamber Volume: | 85 Liters |
| Number of Trays: | 2 |
| Small Tray Dimensions: | 11.3" x 1" x 26.6" |
| Large Tray Dimensions: | 13.8" x 1" x 26.6" |

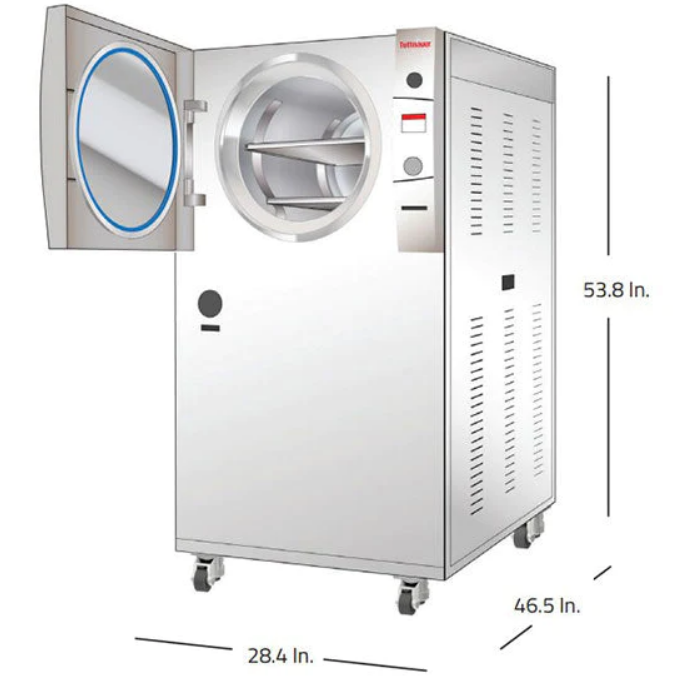

| Overall Dimensions: | 28.4" x 53.8" x 46.5" |
|---|---|
| Autoclave Weight: | 397 lb |
| Voltage/Frequency: | 3 ph, 230 Volts, 25 Volts, 25 Amp, 60Hz |
| Power: | 9 kW |
| Warranty: | 2 Years |
