Ri Former Modular Diagnostic Station, Wall Design
In Stock
Usually ships in 1 - 3 Days
Sale:
$385.18
1
/ Each
Frequently Bought Together
Total Price:
$2,883.03
Recommended Accessories
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description
A modular diagnostic system offering optional modules which can measure blood pressure (NIBP), and temperature, and with a centralized electricity power supply it can support up to 5 instrument handles with a choice of heads; ophthalmoscope, otoscope, dermatoscopy, retinoscope, tongue blade holder or nasal speculum.
Diagnostic station with flexible, modular design
The flexible, modular design is available as a mobile base, wall design or rail design, offering many configurations to suit the needs of hospitals, medical practices, and clinics.
Ri-former diagnostic station provides the healthcare professional (HCP) with the ability to assess their patient’s eyes, ears, nose, tongue, and skin making it suitable for use across ENT and Dermatology.
Design options
Ri-former is available in the following design options:
- Rail design is designed to attach to a rail, either horizontally or vertically. It comes with 2 handles and ri-spec ear specula dispenser.

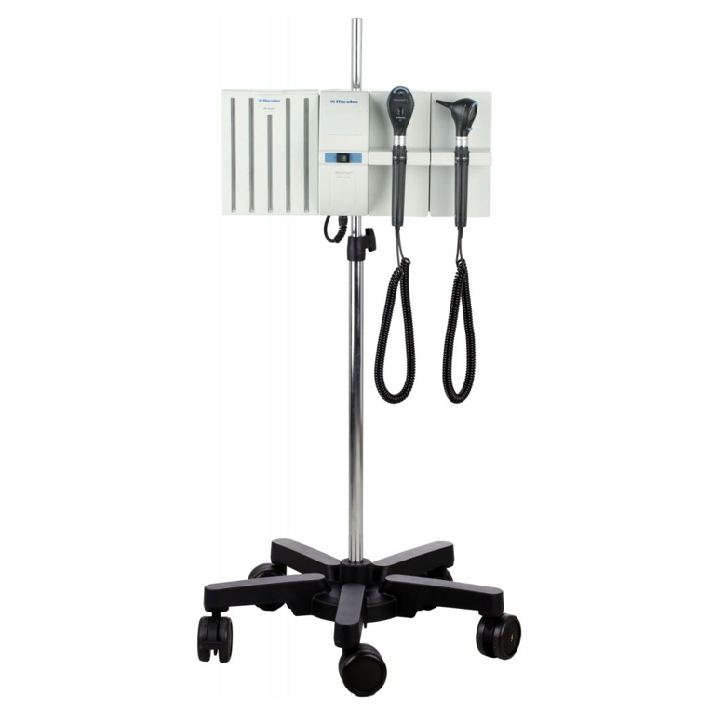

- Mobile base is made of fiberglass and a chrome plated pole, which is height adjustable (105 – 130 cm / 41.3 – 51.2 in), and is easy to move due to low friction, anti-static, lockable castors. Diameter (54 cm / 21.3 in). It comes with 2 handles and ri-spec ear specula dispenser.
- Wall design is designed to be attached to the wall. It comes with a choice of 1 or 2 handles and includes a wall mounting plate, plugs, and screws.
Optional thermometry modules:

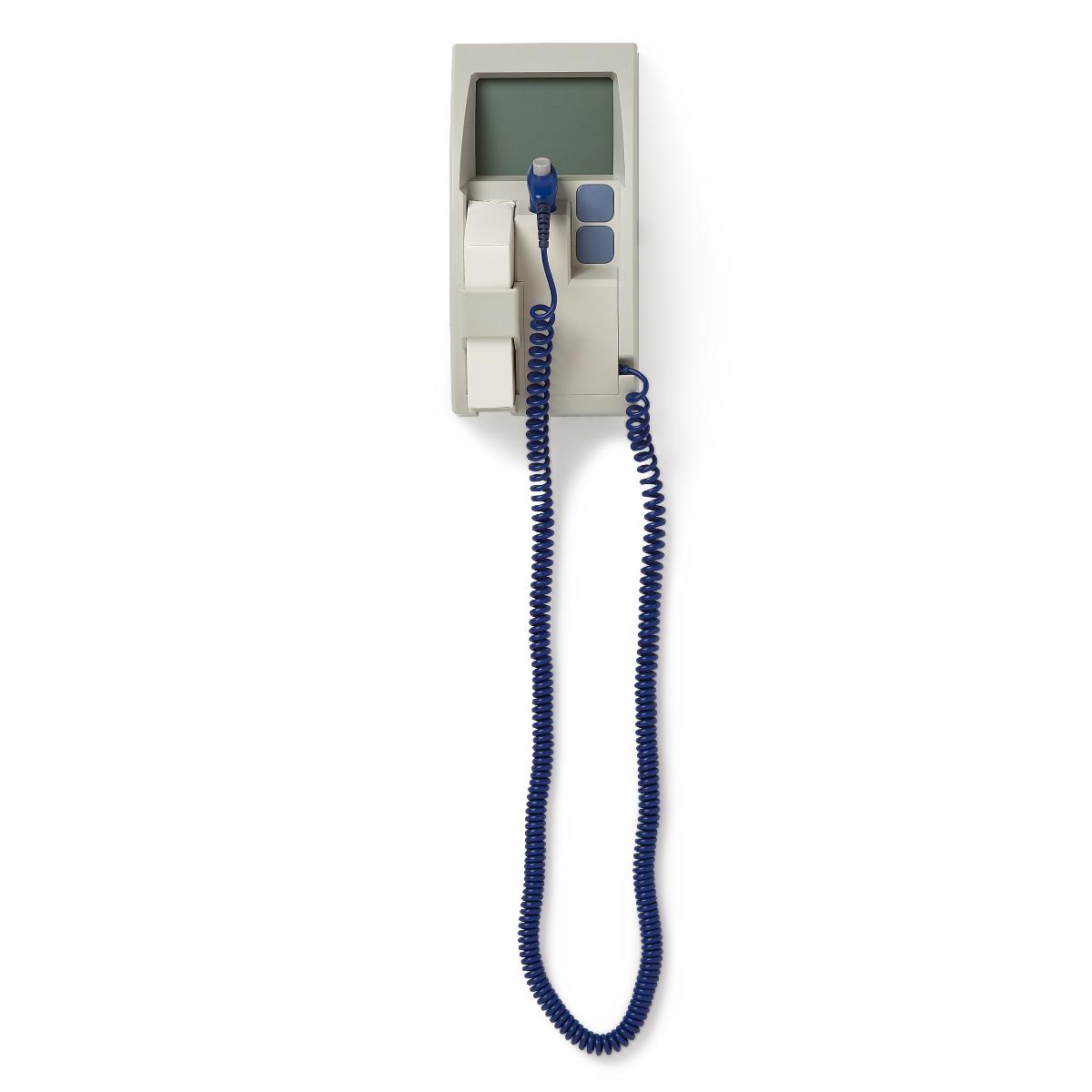

- RPT-100 (Filac 3000) predictive probe thermometer.

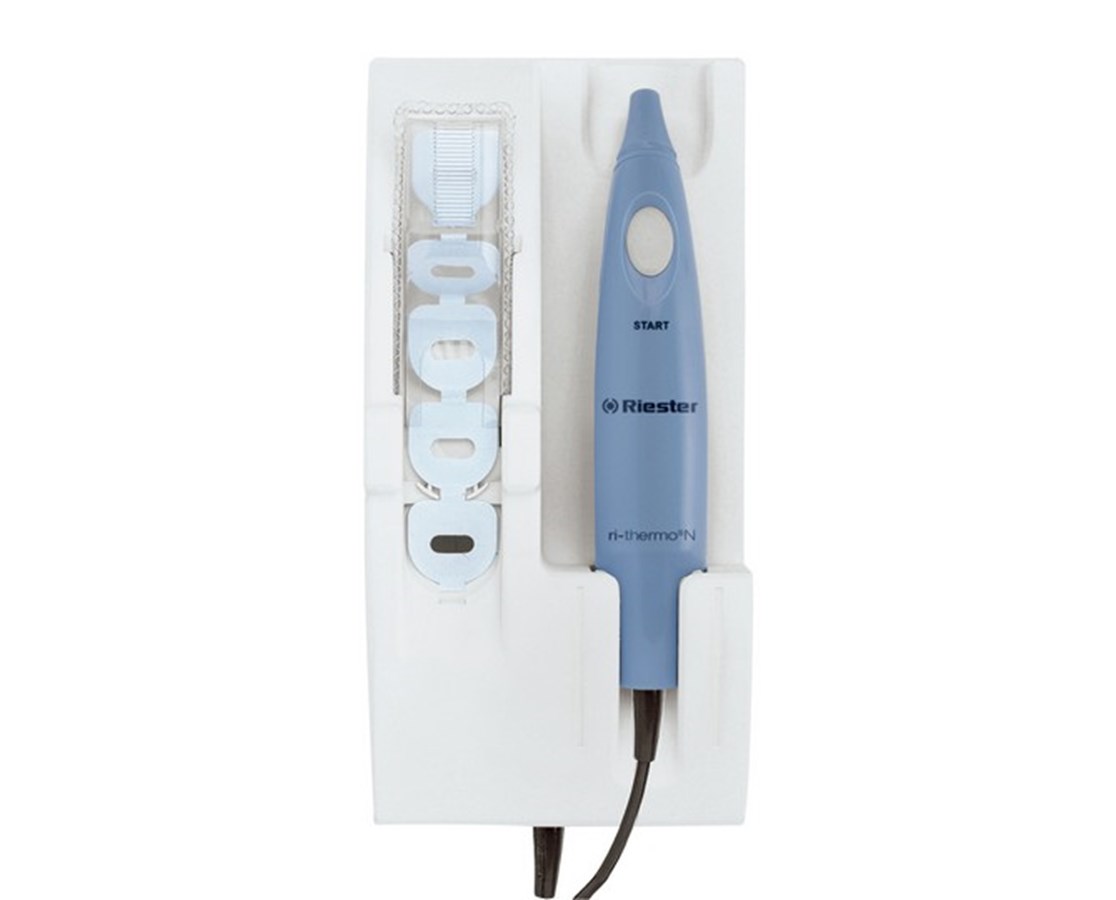

- ri-thermo N infrared tympanic thermometer.
Optional blood pressure modules:
- Big Ben aneroid sphygmomanometer (sphyg).
- ri-medic automated and manual clinical-grade blood pressure monitor.

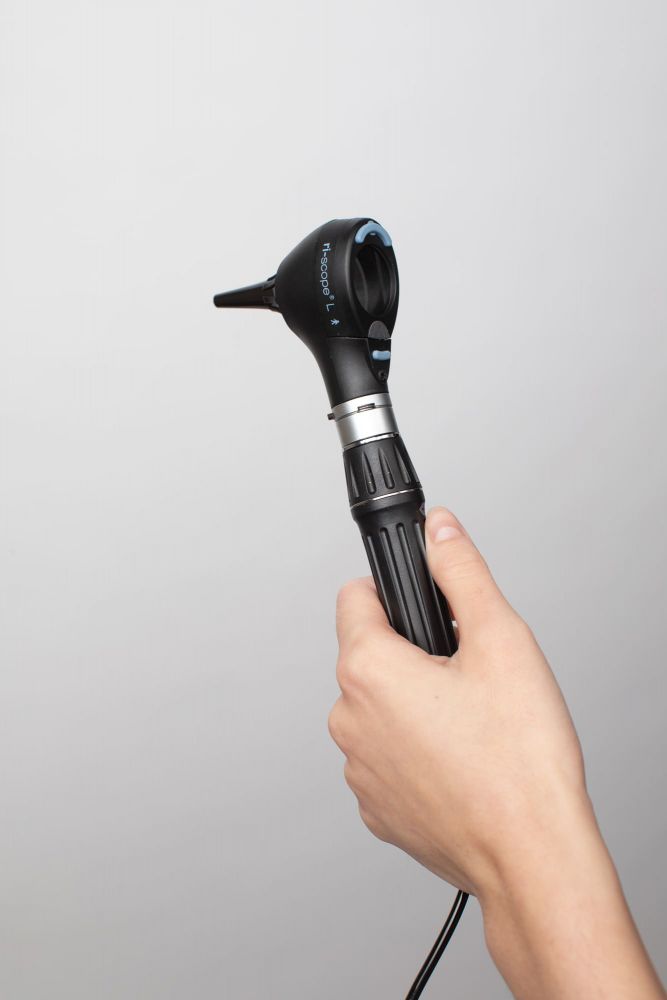

Diagnostic handles
The centralized power supply supports up to 3 diagnostic handles which are ergonomically designed with rhetoric that provide continuously adjustable brightness as well as manual switching on and off.
The diagnostic handles are available with a choice of Riester ri-scope L and EliteVue instrument heads with a choice of LED or Xenon bulbs:
- Otoscopes.
- Ophthalmoscopes.
- Retinoscopes.
- Dermatoscopes.
- Tongue Blade Holders.
- Nasal Speculums.
- Bent Arm Illuminators.
Accessories
Ri-spec integrated ear specula dispenser for the otoscope and nasal specula has 5 tubes for 5 different sizes of specula, dispenses new specula for each examination, and is easy to re-fill and disinfect.
Features
- Choice of purchasing with or without clock.
- 3.5V/120V powered.
- Automatic on/off feature.
- Latex-free 10-foot coiled tubing.
- Comes with wall mounting plate, plugs, screws, and assembly plan.
- Anti-theft featurea.
- Rheotronic feature for adjusting brightness.
- Does not include instrument heads.
- Instruments are easy to clean and disinfect.
- 3 year warranty.
- Made in Germany.
Product Specifications
| Manufacturer Part 3653: | Option with 1 Handle |
|---|---|
| Manufacturer Part 3653-300: | Option with 2 Handles |
| Power Source: | 3.5V/120V |
| Weight: | 7.5 lbs |
| Dimensions: | 14.7" x 13.6" x 3.6" |
| Main Device Warranty: | 3 Years |
| Coils Warranty: | 3 Years |
| Handles Warranty: | 3 Years |
|---|---|
| Handle Specifications: | 1 otoscope and 1 ophthalmoscope handle |
| BP Measuring Device: | |
| BP Measuring Device: | Big Ben Aneroid, optional |
| Range: | 0 - 300 mm Hg |
| Accuracy: | +/- 3 mm Hg |
| Automatic: | No |
See any errors on this page? Let us know
Frequently Asked Questions (FAQs)
The Riester Ri-former Modular Diagnostic Station is a versatile medical diagnostic system that integrates multiple examination tools into a single, compact unit. It is designed to enhance efficiency and convenience in clinical settings.
The Riester Ri-former Modular Diagnostic Station typically includes the following components:
