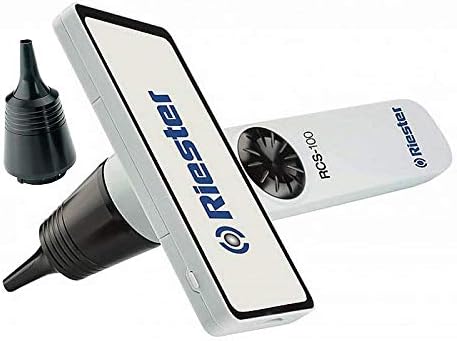

RCS 100 Camera with Dermatoscope, Otoscope and General Set
In Stock
Usually ships in 1 - 3 Days
Sale:
$2,700.00
1
/ Each
+
Free shipping
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description
RCS-100 is a multi-functional, portable and versatile medical camera system that can be used with a choice of lenses and adapters to assess a patient's eyes, ears, nose, throat, skin and more.
Providing evidence of diagnosis and improving effectiveness of treatments.
Healthcare and insurance providers, in particular, are becoming increasingly focused on evidence; evidence of a diagnosis and to approve treatments. RCS-100 can support this demand by providing images and/or videos of a multitude of diagnoses, monitoring diagnoses and tracking the effectiveness of treatments.
Doctors from universities in Warwick, England, found that when presented alongside a diagnosis, medical images may aid patient understanding, recall and trust in medical information and they may be a powerful resource for patients that could be utilised by clinicians during consultations.
Live video mode allows for online diagnosis, monitoring and treatment, particularly with specialists who may be located elsewhere.
- Improved digital capabilities: Large 5” touchscreen with intuitive interface for easy image capture and management.
- Improved communication: LI-Ion battery offers 3.5 hours of operating time in video mode.
- Easy to use: Ergonomic, one hand design with easy-to-use rotary wheel.
Features
- 5“ full HD colour TFT-LCD display screen 1,280 x 720 pixels provides high resolution, scalable images with 2x - 8x magnification and digital zoom capabilities.
- Touch screen makes it quick and easy for the user to capture images and videos.
- One-handed operation with the ergonomic rotary wheel minimises the risk of cross-contamination as well as the capability to adjust focus and light intensity.
- Live picture display on a second screen, using UVC function, allows the user to show another HCP or the patient what they can see and explain what this means in real time.2
- Share images via the micro-USB 2.0 cable, or optional Wi-Fi connection.3
- Languages: English, German, French, Spanish, Italian, Russian, Chinese and Arabic.
Product Specifications
| LCD screen: | 5“ full HD colour TFT-LCD display 1.280 x 720 pixel including scratch proof cover |
|---|---|
| Focus: | Automatic/manual |
| Image/Video format: | Picture |
| Battery: | 3.6 V 2600 mAH 1S1P 18650-li-battery |
| Adaptor Input: | 100 ~ 240 V50 ~ 60 Hz, 0.3 A Output |
| CMOS sensor: | 8 MP (megapixels) |
| USB: | OTG type C USB, UVC |
| RAM: | 2 GB LPDDR3 |
| ROM: | 16 GB |
| Optional: | Extended memory 16 GB Wifi SD Card |
| Start time: | < 30 sec. |
| Wake up time: | < 5 sec. |
|---|---|
| Stand by time approx: | 7 days |
| Ambient temperature: | + 10° C to + 40° C |
| Operating time: | Video 3.5 hours |
| Charging time: | 3 hours |
| Relative humidity: | 15 % to 95 % rel. non condensing |
| Storage: | 0° C to + 45° C |
| Cleaning control unit and charging adaptor: | Soft cloth with alcohol (70 % ethyl alcohol) |
| Cleaning optical lenses: | Cleaning cloth or a lens cleaning tissue (e.g. THORLABS) |
| Handset weight: | 292 g |
| Handset dimensions mm (in): | 225 x 135 x 45 (8.86 x 5.31 x 1.77) |
