Description
"Experience it for yourself! Get a free, no-obligation online demo set up in just 5 minutes. Try it now!"

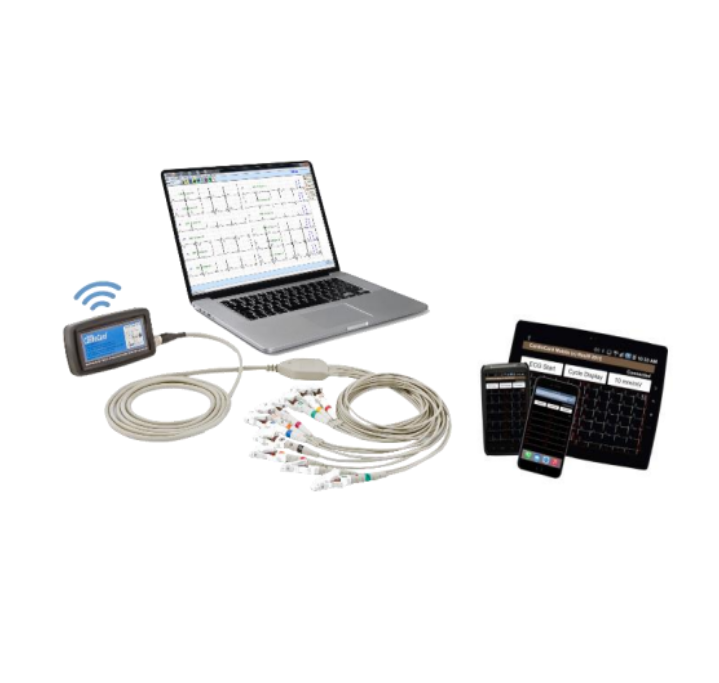

The CardioResting ECG is an EMR-capable 12-lead PC-based cardiology system. Our ECG is durable, reliable, and easy to learn, allowing users to perform and manage tests while saving money and working with existing equipment.
Built by a medical technology company committed to providing PC solutions to healthcare professionals, Nasiff has developed and manufactured medical diagnostic devices that have been leading patient care in hospitals, offices, telehealth, and home-based medical services since 1989.
As the highest-developed PC ECG on the market, every Nasiff cardiology system can be customized to meet the needs of your practice. Need it to be portable? That's no problem with the many options offered with the Nasiff CardioCard Systems.
Connectivity: The Nasiff CardioResting comes standard with USB connectivity. The device can be equipped with Bluetooth connectivity or with both USB and Bluetooth connections on the same device.
Software: The future of Healthcare. All CardioCard products (ECG, Holter, Stress, and Blood Pressure) are connected and come with the Cardio Universal EMR Interface.
Control: Our easy-to-use innovative CardioCard Software allows for in-depth control over all of your test options from our standard default settings to every detail in your test and report.
Advanced Management Tools
- Integrate all devices into one machine.
- Integrated patient database and chart.
- Serial historical comparisons.
- Transmit and receive ECGs.
- Portable patient data.
Features
- Simultaneous Interpretive 12- lead Acquisition of your PC ECG/PC EKG.
- ECG Interpretation Classes: MIs, Blocks, Enlargements, Axis; over 100 calls, AFib.
- Real-time 12-, 6-, 3-, 2- or 1- ECG Lead.

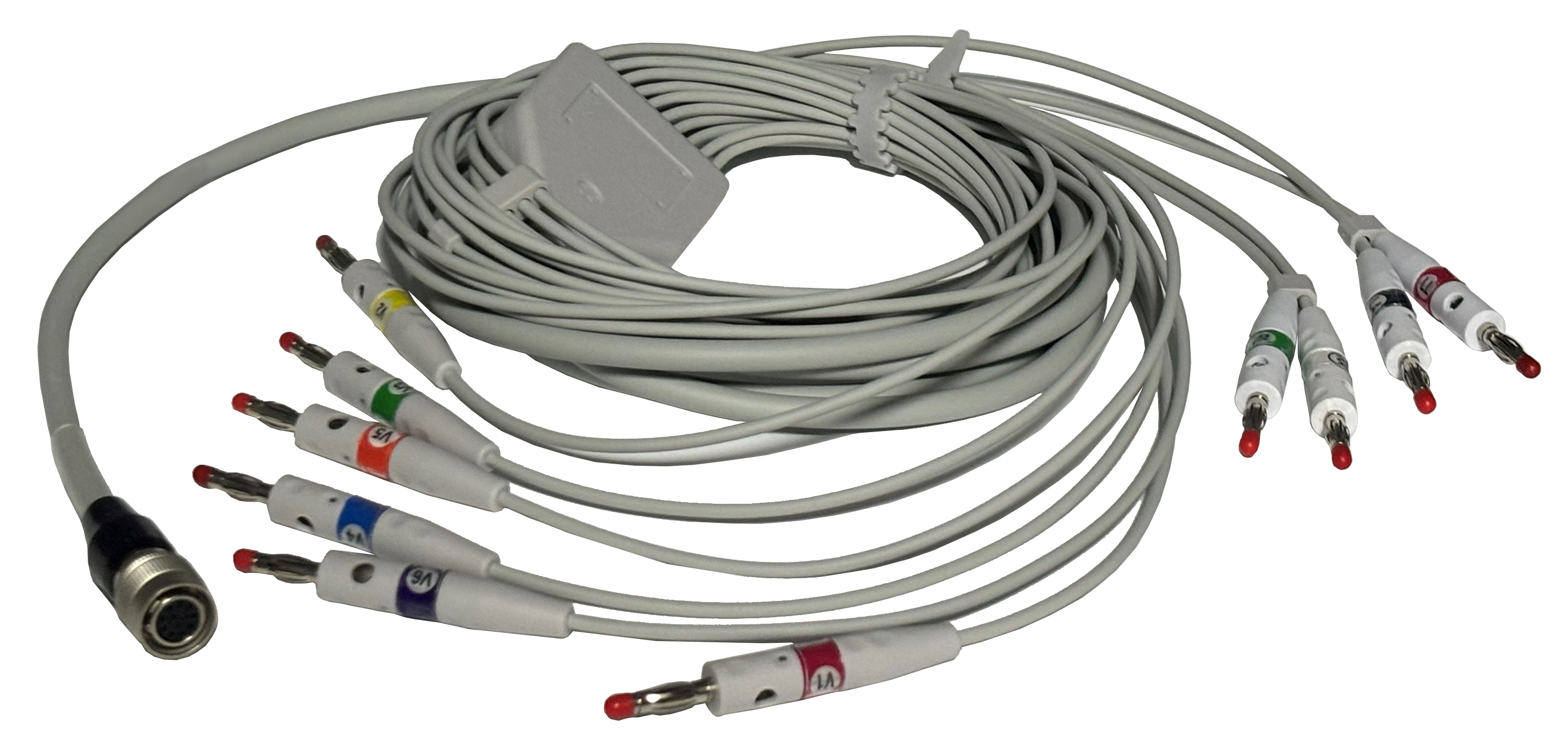

- 10-foot ECG Patient Cable with Locking Replaceable Leads (plus 3 feet).
- Full Patient Demographics and Information.
- HR with Global Measurements, Complete Interval Values, and ST Information.
- Capture Unlimited ECG/EKG Durations of Patient Data to any Storage Medium.
- USB Format (no batteries or extra power needed).
- User Selectable Lead Formats on.
- Final ECG/EKG Report.
- Print the Final Report to any Windows Printer (no fading, low cost, ready availability).
- ECG FAX Capability.
- ECG Email Capability (batches too).
- Network Practically Unlimited Number of ECGs/EKGs.
- ECG/EKG Serial Historical Comparisons.
- Pacemaker Detection.
- Gains: 2.5, 5, 10, 10/5, 20 mm/mV.
- CMRR: 120db.
- 12- lead Sampling Rate: 250-1000Hz.
- A/D Rate: 10kHz.
- Time Base: 25 and 50 mm/sec.
- ECG Measurement resolutions: 4msec, 1.22uV at 10mm/sec gain.
- ECG Frequency Response: 0.05-150Hz std.
Product Specifications
| Power Supply: | DC 3v from 2 AA Batteries |
|---|---|
| Power Consumption: | < 200mA |
| ECG Measurement Resolution: | 2-4 msec, 1.22uV at 10mm/sec gain |
| Heart Rate Range: | 30-300bpm |
| Leads: | Standard 12 lead |
| Lead Leakage: | < 10uA |
| Acquisition Mode: | Simultaneous interpretive 12- lead acquisition |
| Sampling Rate: | 12 lead sampling rate 250-1000Hz |
| A/D Rate: | 1kHz |
| Time Base: | 12.5, 25 and 50 mm/sec |
| Dynamic Range: | ± 5 mV |
| Frequency Response: | 0.05 to 150 Hz (higher available) |
| Gains: | 2.5, 5, 10, 10/5, 20 mm/mV |
| Input Impedance: | >1012 ohms |
| System Noise: | <40 mV RTI |
| ECG Interpretation Classes: | Mls, blocks, enlargements, axis and afib |
|---|---|
| Filters: | High performance baseline filter, baseline correction and other filters to minimize motion artifact. |
| CMRR: | >120dB |
| Networking: | Built-in |
| Measurements: | HR with global measurements, complete interval values and ST information. |
| Dimensions: | 2.75” W x 1.25” D x 4.87” H (6.985 cm x 3.175 cm x 12.364 cm) |
| Weight: | .26 lb (.12 kg) |
| PC Requirements: | Tablet/Laptop/Desktop PC, Intel P4, 512MB Ram, 40GB HD, Windows XP, Vista 32/64 bit, Windows 7, Windows 8, Windows 10 and MAC’s with Boot Camp, Dual Boot,VMware Fusion or Parallels. |
| Warranty: | 2 Years |
| Country of Origin: | USA |
| Manufacturer Part CC-ECG1: | Standard with USB |
| Manufacturer Part CC-ECG1 BLE: | BLE Mobile System |
| Manufacturer Part CC-ECG1 BT: | Standard with Bluetooth |
| Manufacturer Part CC-ECG1 W: | Wi-Fi Mobile System |
See any errors on this page? Let us know
Frequently Asked Questions (FAQs)
Absolutely! Nasiff CardioCard Systems are highly customizable, allowing you to tailor the system to meet your practice's unique requirements, including portable options.
Yes, the system supports simultaneous interpretive 12-lead acquisition, including interpretations for various cardiac conditions like MIs, Blocks, Enlargements, Axis, and more.
Yes, the CardioResting ECG System offers both fax and email capabilities, even for batch transmissions, making data sharing and analysis convenient.
The system comes standard with USB connectivity. You also have the option to equip it with Bluetooth connectivity or both USB and Bluetooth connections on the same device.
Yes, you can perform serial historical comparisons to gain insights into changes in patient data over time, providing a comprehensive view of their health.
Yes, the system includes pacemaker detection capabilities, making it suitable for patients with cardiac devices.
