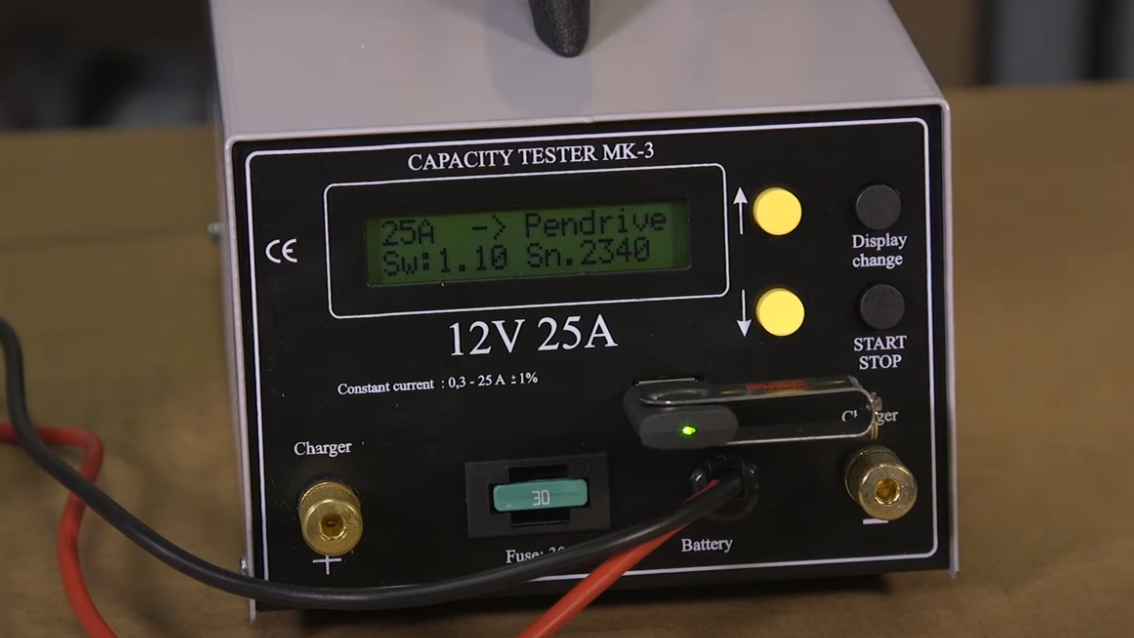

MK3 Battery Capacity Tester and Charger Analyzer
Usually ships in 1 - 3 Days
$1,060.50
Buy with confidence.
Contact our experts today.
Introducing the MK Battery MK3 Battery Capacity Tester – your ultimate solution for assessing the vitality of your mobility equipment, whether it be a Mobility Scooter or Power Wheelchair. At MK Battery, we take pride in offering the pinnacle of performance evaluation tools, and the MK3 Battery Capacity Tester stands as a testament to our commitment.
Designed to cater specifically to the unique demands of mobility devices, the MK3 Battery Capacity Tester empowers users with accurate insights into the health and capacity of their batteries. With its precision and reliability, it becomes an indispensable companion for maintaining the optimal functionality of your equipment.
What sets the MK Battery Capacity Tester apart is its intuitive design that simplifies the testing process, making it accessible to both professionals and users alike. It ensures that you make informed decisions about battery replacement or maintenance, enhancing the overall longevity of your mobility solutions.
- True Discharge Capacity Testing — Measures real C20 amp-hour capacity through a controlled discharge cycle instead of estimating from voltage, so you know exactly how much usable life a battery has left.
- Automatic Discharge Rate Selection — Enter the battery's rated C20 capacity and the tester sets the discharge current for you, applying the C1 rate below 25Ah and a steady 25A above it.
- Built-In 12V and 24V Charger Analysis — Record the charging curve of a 12V or 24V charger to confirm it delivers the amps and volts it should, so you replace the failing component and not the healthy one.
- Documented Pass or Fail Results — This battery capacity tester reports a clear Pass or Fail against a 60% threshold and stores the last three results on the unit for quick reference.
- PC Software with Graph and Report Output — Included Windows software turns saved USB data into discharge graphs, Excel files, and PDF test reports you can brand, print, and file for warranty documentation.
Product Specifications
| Function: | 12V battery discharge and capacity test, plus 12V and 24V charger test |
|---|---|
| Battery Types Supported: | Sealed lead acid gel and AGM |
| Capacity Measurement: | C20 capacity, calculated using Peukert values |
| Measured Voltage Range: | 6V – 18V |
| Maximum Input Voltage: | 16V |
| Minimum Input Voltage: | 6V |
| Discharging Current: | 0.3A – 25A, in 0.1A increments |
| Automatic Discharge Rate: | C1 rate for batteries under 25Ah C20; 25A for batteries 25Ah C20 and above |
| Current Accuracy: | ±2% ±0.05A |
| Voltage Accuracy: | 2% |
| Cut Off Voltage Range: | 6V – 15V |
| Default Cut Off: | 1.6V per cell |
|---|---|
| Pass or Fail Threshold: | Below 60% of rated capacity is reported as Fail |
| Maximum Number of Cycles: | 1 |
| Onboard Test Memory: | Last 3 test results |
| Data Output: | USB flash drive |
| Menu Screens: | 8 |
| Software Compatibility: | Windows 9x, ME, 2000, XP, 7, and 8 |
| Software Output Formats: | Excel export, PDF test report, BMP graph, clipboard copy |
| Dimensions: | 200 mm x 140 mm x 90 mm (7.9 in x 5.5 in x 3.5 in) |
| Weight: | 1.5 kg (3.3 lb) |
