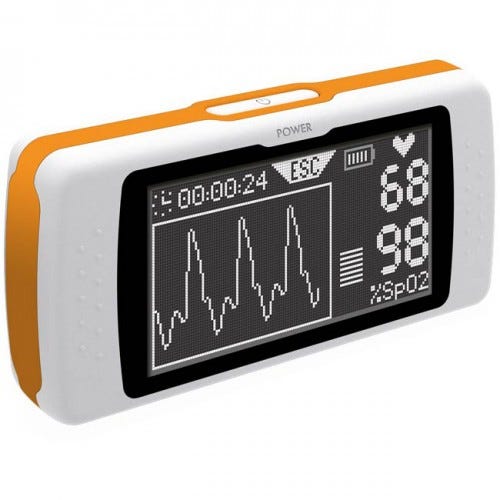

Spirodoc Touchscreen Spirometer with Oximeter
Usually ships in 1 - 3 Days
$2,195.00
Frequently Bought Together
Buy with confidence.
Contact our experts today.
The SpiroDoc's unique configurations allow for a full range of respiratory analysis and spirometry testing. In addition, the oximetry capabilities can be included to perform nocturnal SpO2 and 6MWT (Six Minute Walk Test) analysis. This is further augmented by the Tele-Medicine capability that is built into the MIR technology. As a result, the SpiroDec is a world first: featuring 4 commonly used devices in a single small unit. All MIR products are easily adapted to Electronic Medical Records (EMR) that provide for the latest standard for patient privacy and physician reporting requirements. In-addition to the EMR capabilities, all MIR products utilize the most sensitive, accurate and accepted flow technology (FlowMir) developed by MIR-Medical International Research.
- Doubles as both a spirometer and oximeter
- Detachable transducer head allows user to perform oximetry test

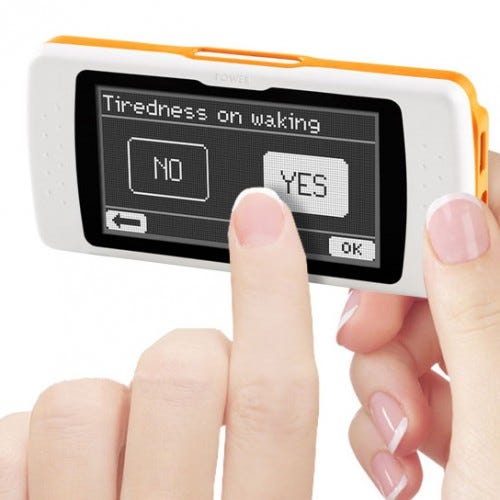

- LCD backlit touchscreen display
- Oximeter correlates saturation levels with physical activity
- Oximeter contains accelerometer for motion analysis
- Capacity for 10,000 spirometry tests
- Can record up to 900 hours of oximetry
- 6 Minute Walk Test correlates oxygen level with physical activity
- Sleep Test analyzes saturation levels and body position during sleep
- 24 hour Sp02 Holter Test analyzes average pulse rate values
- Provides pulse rate and SpO2 measurements with plethysmographic curve
- Health indicator with traffic light design
- PRE/POST bronchodilator comparison with wide selection of parameters
- Can perform FVC, VC, IVC and MVV tests (See DOWNLOADS for complete list)
- Small size for portability
- Long lasting rechargeable battery
- Easy programmable ON/OFF timer
- USB and Bluetooth connectivity
- Includes Winspiro PRO™ software
Product Specifications
| Display: | LCD backlit touch screen. |
|---|---|
| Resolution: | 128 x 64 pixels. |
| Power Supply: | Lithium Ion 3.7 V 1100 mA rechargeable battery. |
| Data Transmission: | USB 2.0 on-the-go and Bluetooth 2.1. |
| Accelerometer: | Triaxial ± 2 g. 400 Hz sampling. |
| Dimensions: | 101 mm x 48 mm x 16 mm. |
| Weight: | 0.22 lb (99 g). |
| Removable Turbine Head Dimensions: | 46 mm x 47 mm x 24 mm. |
| Removable Turbine Head Weight: | 17 g. |
| Flow Sensor: | Bi-directional digital turbine. |
| Flow Range: | ± 16 L/s. |
| Volume Accuracy: | ± 3% or 50 mL, whichever is greater. |
|---|---|
| Flow Accuracy: | ± 5% or 200 mL/s, whichever is greater. |
| Dynamic Resistance at 12 L/s: | < 0.5 cmH2O/L/s. |
| Temperature Sensor: | Semiconductor (0 - 45 degrees C). |
| SpO2 Range: | 0 - 99%. |
| SpO2 Accuracy: | ± 2 % (70 - 99% SpO2). |
| Heart Rate Range: | 30 - 254 BPM. |
| Heart Rate Accuracy: | ± 2 BPM or 2%, whichever is greater. |
| Spirometry: | FVC, VC, IVC, MVV, PRE/POST Bronchodilator comparisopn with wide range of selectable parameters. |
| Spirometry Parameters: | FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, Lung Age, Extrap., Volume, FET, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FIVC, FIV1, FIV1/FIVC, PIF, VC, IVC, IC, ERV, Rf, VE, VT, t1, tE, VTE/tTOT, MVV measured, MVV calculated. |
| Oximetry Paramters: | SpO2 and Pulse Rate (Baseline, Min, Max, Average), T90% (SpO2 < 90%), T89% (SpO2 < 89%), T88% (SpO2 < 88%), T5% (ˆ†SpO2 > 5%), ˆ†Index (12 s), SpO2 Events, Pulse Rate Events (Bradycardia, Tachycardia), Step counter, Physical Activity (VMU), Recording time, Analysis time. |
