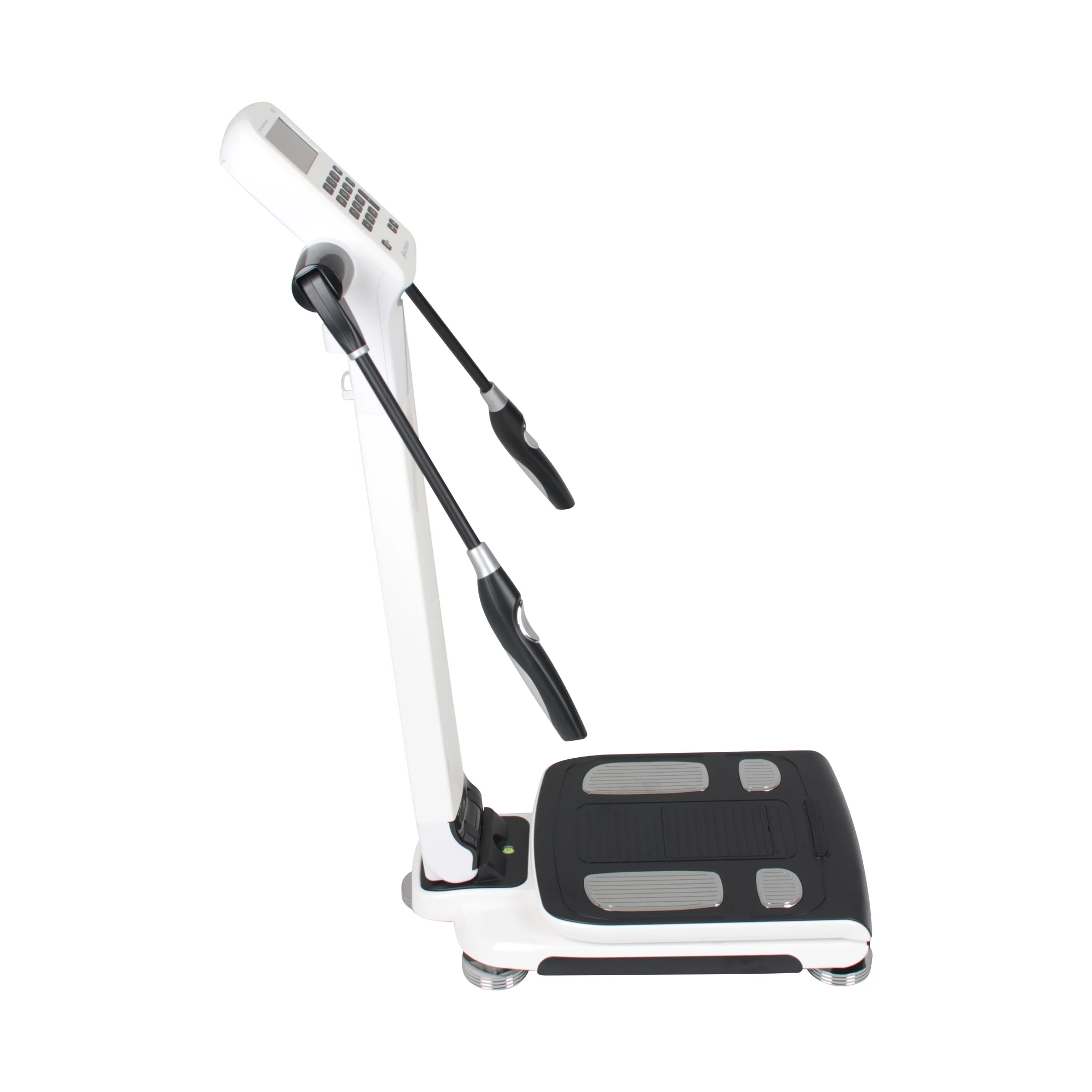

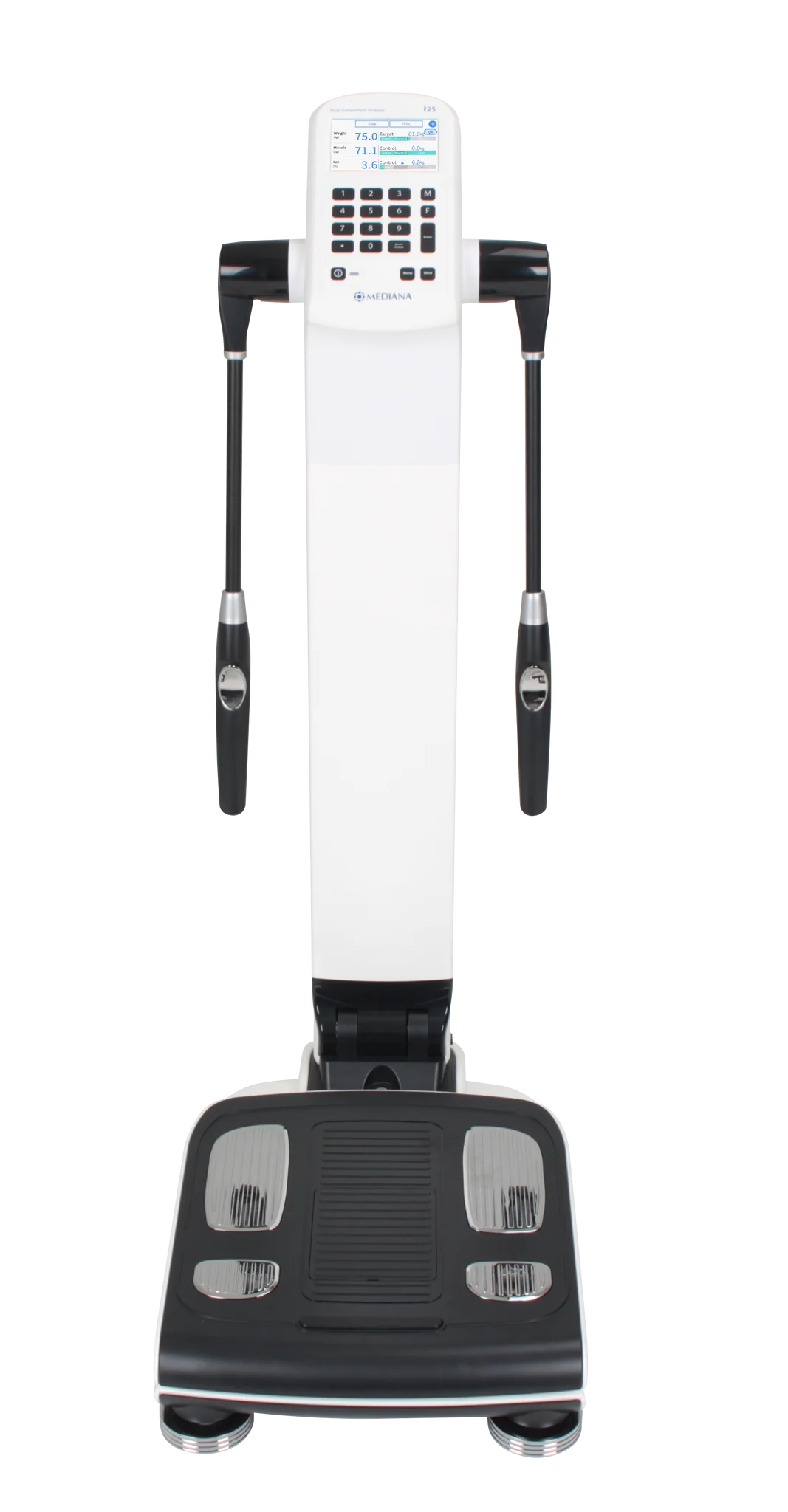

Affordable Body Composition Analyzer
In Stock
Sale:
$4,295.00
1
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description
Segmental Multi-Frequency Measurement: i25 / i35 is a BIA (Bioelectrical Impedance Analysis) technology system using a multi-frequency measurement method providing precise yet meticulous Body Water (i35 Extracellular Water) and Body Composition Analysis.
Segmental Body Composition Analysis: Tetra-polar 8-point tactile electrode system provides accurate segmental (Body Fat and Muscle Mass) analysis and Body Balance evaluation through a user-friendly chart.
Inch Perfect and Up-to-Date Body Composition Analysis Algorithm: Clinical trials of Golden Standards of Body Composition Analysis methods (DEXA, CT, and Isotope Dilution) were conducted in professional instructions to a wide range of demographics ranging from elderly to small children.
In addition, optimization algorithm technology utilized to increase the precision of Body Composition Analysis, and its reliability was verified through clinical trials.
Features
- Extracellular Water Ratio: Extracellular Water Ratio presented which can be used for diagnosis of edema and health status evaluation by professional medical personnel.

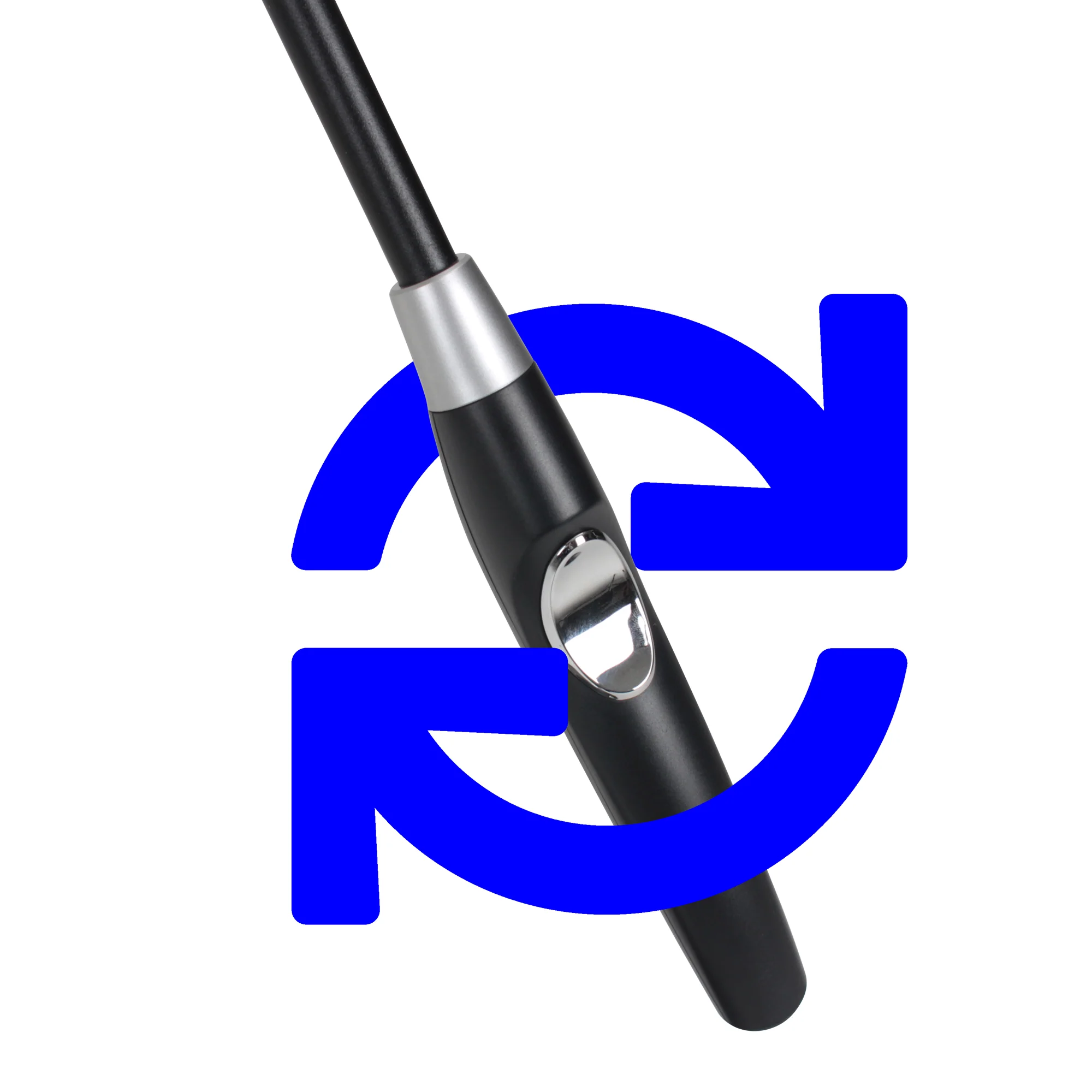

- Ergonomic Design for Comfortable Measuring Posture: The wide rotational radius of the electrode handle combined with its rotatable versatility prompts a precise yet comfortable measuring posture reducing measurement errors.
- PC Software: Body Composition Analysis Result Sheet, Segmental Body Composition; various body composition analysis data, nutritional information, and exercise guidance provided with results in the PC server.
- Our PC software is compatible with EMR (BPM image), PACS (DICOM, Worklist), and digital height scales.
- Smartphone App: By a simple QR scan, results can be viewed via smartphones. Also, using our smartphone app allows the management of cumulative results.
- Abdominal Obesity Analysis: Abdominal Obesity Analysis presents Waist Circumference, Abdominal Fat Ratio, Visceral Fat Area, Subcutaneous Fat Area, and Visceral to Subcutaneous Fat Ratio (VSR) allowing a qualitative and in-depth analysis of abdominal obesity.
- Exercise Guidance: Based on the results of Body Composition Analysis; Basal Metabolic Rate and Total Energy Expenditure are calculated to compute Target Body Fat, Exercise Intensity, Calorie Consumption of Exercise, and Estimated Completion, which are then all used for systematic guidance toward a healthy body.
- FMI and FFMI indexes: Fat Mass Index (FMI) and Fat-Free Mass Index (FFMI) not only cover the limitations of BMI but also allow an accurate analysis of obesity.
- Blind Mode: Whilst processing Body Composition Analysis, "Blind Mode" can be turned on/off to show or hide the numerical values of weight and fat mass for privacy concerns. The blind mode does no affect the results sheet printed which displays the weight and fat mass values regardless.
Product Specifications
| Electrode Type: | Tetra-polar 8-point tactile electrode system |
|---|---|
| Measuring Method: | Segmental measurement using multiple frequencies |
| Power Source: | DC Adaptor; Input AC100-240V, 50-60Hz, 1.5A (1.5-0.7A); Output DC (12V, 5.0A) |
| Measurement Frequency: | 10, 50, 100, 250 kHz |
| Measurement Current: | 200uArms |
| Measuring Range: | 10 - 1000Ω |
| Measuring Weight Range: | 2.0 - 250.0 kg (measurement accuracy 50g) |
| Height Range: | 60.0 - 220.0cm |
| Input Interface: | Keypad, Touch Screen. Barcode Reader |
| Additional Function: | USB Device used to back up restore, and support exporting CSV files |
| Supported Printer: | Mediana recommended laser printer |
| External Interface: | RS232C (9Pin Serial) 1ea, USB host (type A) 2ea, Mini-USB B (type B) 1ea, Bluetooth (Optional), Wi-Fi (Optional) |
|---|---|
| Measuring Time: | Approximately 35 seconds |
| Age of Use: | 3 - 99 Years Old |
| Display: | 7.3" color touch LCD (600 x 1024) |
| Dimensions: | 360 W x 599 L x 1077 H mm |
| Weight: | Approx 17.5 kg |
| Operating Environment: | Temperature 10-40°; Humidity 30-75%, Air Pressure 70-101.3 kPa |
| Storage Environment: | Temperature 10-60°; Humidity 10-80%; Air Pressure 50-101.3 kPa |
| Supporting Result Sheet: | General Results Sheet; Children Result Sheet |
| Measurement Modes; Expert Test; Self-Test; Classmate; Blind Mode: | |
| Weight Capacity: | 550 lbs |
See any errors on this page? Let us know
Frequently Asked Questions (FAQs)
The i25 achieves 98.4% accuracy when compared with DEXA, a gold standard in body composition analysis.
Yes, results can be viewed instantly on smartphones via the Mediana iAPP and QR code scan.
Yes, it supports a wide range of demographics and heights from 2'0" to 7'2".
The included PC software is not Mac-compatible. For Mac users, results can still be accessed via the mobile app.
No, these features are available on higher-end models like the i55.
