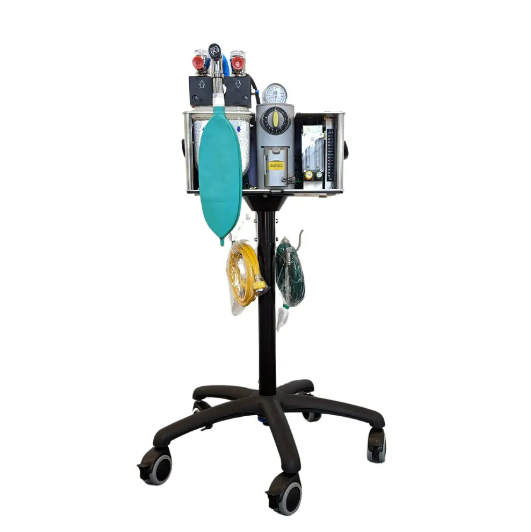

Portable Office Based Anesthesia Machine OBA-1
$16,657.42
Buy with confidence.
Contact our experts today.
The OBA-1 is a revolutionary anesthesia delivery system designed specifically for flexibility in office-based surgery, dental procedures, and remote medical environments. Weighing only 35 pounds and featuring integrated side handles, this compact unit provides full anesthesia functionality without the bulk of traditional station machines, making it ideal for the smallest operating suites or imaging rooms.
Built for versatility, the OBA-1 is safe for use in MRI scan rooms with both shielded and unshielded magnets. Its rugged, lightweight design makes it a top choice for disaster response, military front-line hospitals, and offshore missionary work. The intuitive layout includes conveniently located gas ports and a clear airway pressure gauge to ensure clinician efficiency and patient safety in any setting.
To be used for: Office Based Anesthesia (OBA), MRI scan rooms, Dental anesthesia, Missionary off-shore anesthesia, Remote locations in hospitals outside O.R., Disaster scenes and mass casualty incidents, Front-line military hospitals, Shipboard, aircraft Anywhere general anesthesia is needed.
- Lightweight and portable design weighing only 35 lbs (15.7kg) for easy transport.
- Fully MRI-compatible for use in scan rooms with shielded or unshielded magnets.
- Dual gas system supporting both Oxygen and Medical Air with 0-10 L/min flow range.
- Integrated side handles allow for quick relocation between surgical suites.
- Versatile range of medical applications from dental offices to disaster scenes.
- Equipped with a high-performance Oxygen Flush Button supplying 50 L/min at 50psi.
- Pneumatically powered oxygen failure warning system for enhanced patient safety.
- Flexible mounting options including an optional mobile trolley or carrying case with retractable handle.
Product Specifications
| Total Weight: | 35 lbs (15.7kg) |
|---|---|
| Height: | 15” (38cm) |
| Width: | 16” (41cm) |
| Depth: | 9.5” (24cm) |
| Flow Range: | Oxygen / Air – 0 -10 L/min |
| Pressure Gauges: | Oxygen & Air |
|---|---|
| Oxygen Flush Rate: | 50 L/min at 50psi |
| Oxygen Failure Warning: | Pneumatically powered |
| Airway Pressure Gauge Range: | -40 to +80 cmH2 |
| Gas Supply Requirements: | 45-55 PSI oxygen & air from cylinders or pipeline |
