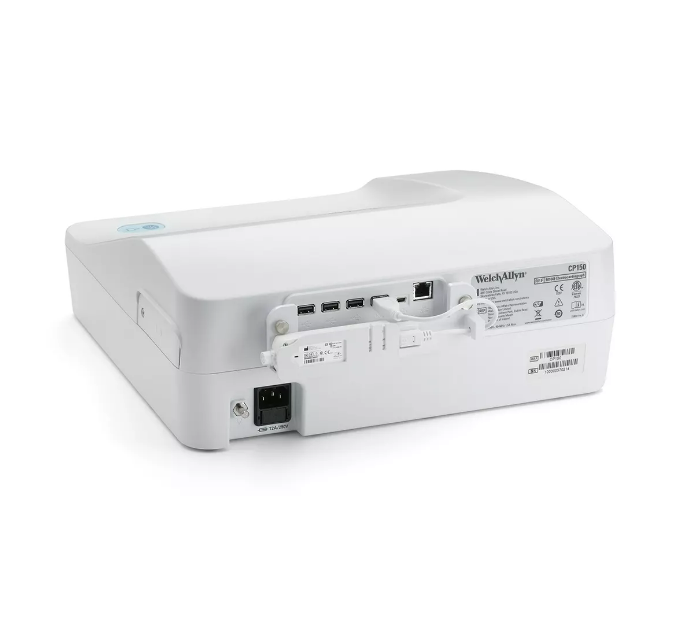

CP 150 Compact Resting Electrocardiograph ECG
In Stock
Usually ships in 14 - 21 Days
Sale:
$7,570.17
1
/ Each
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description
The Welch Allyn CP 150 Compact Resting Electrocardiograph is a simple and efficient 12-lead EKG machine aimed to help medical professionals diagnose and monitor heart conditions by recording the electrical activity of the heart at rest. This machine can provide information about heart rate and rhythm and can detect problems such as heart enlargement, history of heart attack (myocardial infarction), and other conditions, which can greatly help in properly treating the patient.
Simple & Easy to Use Design: The CP 150 Compact Resting Electrocardiograph is made of durable and high-quality materials, combining the functions of a traditional ECG and incorporating enhancements for modern primary care practices. It has a 7" TPT Color-Touch Screen Interface with a screen solution of WVGA 800 x 480, weighs 11.5 lbs., and has a size of 19" L x 22.36" W x 13" H. The EKG Machine has a frequency range of 0.3 to 150 Hz, uses a rechargeable 9-cell Lithium-Ion Battery which takes 6 hours to fully charge, and can last up to 8 hours of continuous operation or for 250 continuous ECGs.
Accurate & Reliable: Made to instantly power up, the CP 150 Compact Resting Electrocardiograph features a simple and fast one-button operation that allows for quick on-the-spot testing. The electrocardiograph allows 3, 6, and 12-lead ECG preview options, and can store and save up to 100 patient results on the device itself or can be transferred to a USB memory stick. It has an ECG result print preview feature which can greatly help in saving time and reducing paper costs, and a lightweight and portable body that can easily be transported around the medical facility.
Features
- ECG print previews can help save time and reduce paper costs.
- Three-, six-, or 12-lead ECG preview options.
- Battery operation lets you easily transport your resting ECG device from room to room.
- Simplified EMR connectivity without a complicated interface.
- Instant-on powers the device up quickly, so you can take an ECG at a moment’s notice.
- Spirometry module lets you perform two reimbursable tests with one device.
- Adult and pediatric MEANS ECG interpretation software.
- High-Quality and Comprehensive EKG Machine.
- 7-Inch Color Touch-Screen Interface.
- Portable and battery-operated.
- Easily Viewable Results before Printing.
- Simple and Fast One-Button Operation.
- Comes with various ECG Configurations.
Product Specifications
| Manufacturer Part CP150A-1ENB: | Standard ECG with Interpretation Option |
|---|---|
| Manufacturer Part CP150AS-1ENB: | ECG with Spirometry & Interpretation Option |
| Manufacturer Part CP150AW-1ENB: | ECG with Interpretation & WiFi Option |
| Manufacturer Part CP150AWD-1ENB: | ECG with Interpretation, Wifi & DICOM Image Handling Option |
| EMR Compatible?: | Yes |
| PC Compatible?: | Yes |
| Printer?: | Yes |
| Dimensions: | 15" L x 5.4" W x 14.1" H |
| Weight: | 11.5 lbs |
| Display Type: | TFT, 7" color touchscreen |
| Operating Humidity: | 15 - 95% noncondensing (30 - 70% for printing) |
| Safe Operating Temperature: | 50 deg. F - 104 deg. F |
| Safe Storage Temperature: | -4 deg. F - 122 deg. F |
| Storage Humidity: | 15 - 95% non-condensing |
|---|---|
| AC interference: | - 50 Hz or 60 Hz |
| Muscle tremor: | - 35 Hz |
| High-performance baseline: | - 0.5 Hz |
| Frequency Range: | 0.3 to 150 Hz |
| Sampling Rate: | >1,000 samples/second/channel |
| Battery Life: | 8 hours of continuous operation or 250 continuous ECGs |
| Power Supply Type: | 110–240 VAC, 50/60 Hz, 1.5 A maximum |
| Print formats: | Standard or Cabrera |
| Print speeds: | 10, 25 or 50 mm |
| Electrodes Standards & Certifications: | exceeds all AAMI standards |
| Patient Cable and Leads Standards & Certifications: | Meets or exceeds ANSI/AAMI EC53, EN/IEC 60601-2-25 and EN/IEC 60601-2-51 |
| Warranty: | 3 Years on Device / 90 Days on Cable & Battery |
