TILTIMA Electric Hi Lo Tilt Therapy Treatment Table
Sale:
$2,196.70
1
/ Each
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description
The Everyway4all CA190 Tiltima® electric tilt table is designed to provide precise and comfortable tilt adjustments for physical therapy applications. Powered by dual motors, the table allows both height (55–90 cm) and tilt angle (0°–90°) adjustments using a simple two-button hand control. Built for versatility and safety, it operates on universal voltage (100–240VAC) and features a sturdy steel frame with castors for easy mobility. In the event of a power failure, the emergency handle ensures that the table can return to a horizontal position, allowing the patient to be safely unstrapped. Ideal for rehabilitation, physical therapy clinics, and hospitals, the CA190 Tiltima® offers superior functionality and security.
Features
- Dual Motor Functionality – One motor for height adjustment (55–90 cm) and another for tilt angle adjustment (0°–90°).
- Universal Voltage – Operates on 100–240VAC, compatible with most global power outlets.
- Emergency Safety Feature – Equipped with a red emergency handle to manually return the table to a horizontal position in case of power loss.
- Durable Construction – Sturdy steel tube frame with a thickness of 2mm, designed for long-lasting use.
- Lockable Castors – 5-inch swivel castors with locks for easy mobility and stability during use.

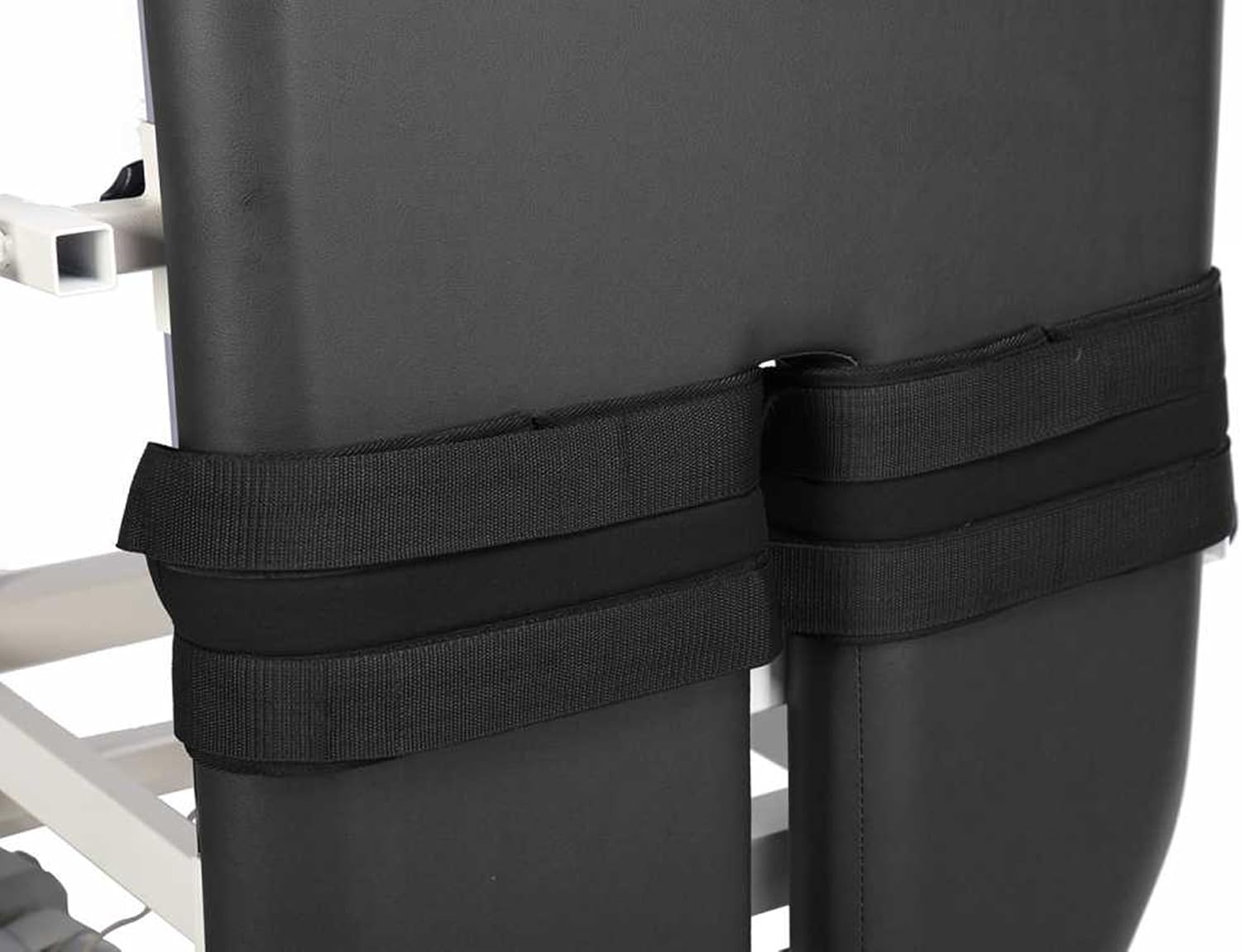

- Accessories Included – Comes with chest, thigh, and calf straps, plus a working table for added functionality.
Product Specifications
| Height Adjustment Range: | 550mm (21.65”) to 900mm (35.43”) |
|---|---|
| Tilt Angle: | 0° to 90° |
| Top Height at 90°: | 2100mm (82.67”) |
| Tabletop Width: | 650mm (25.59”) |
| Total Length: | 1900mm (74.80”) |
| Maximum Load Capacity: | 225kgs (496 lbs) |
| Weight: | 231 lbs |
|---|---|
| Power Supply: | 100–240VAC, 50/60Hz |
| Actuator Voltage: | DC 24V |
| Duty Cycle: | 10% (2 minutes ON, 18 minutes OFF) |
| Certification: | AAMI ES 60601-1, CSA-C22.2 NO. 60601-1, IEC 60601-1, EN 60601-1 |
See any errors on this page? Let us know
Videos for this product
Frequently Asked Questions (FAQs)
The emergency handle allows the table to return to a horizontal position if there's a power failure, ensuring that patients can be safely unstrapped and moved.
Yes, the CA190 Tiltima® features dual motors that allow independent height and tilt adjustments using a hand control.
The table has a maximum load capacity of 225kgs (496 lbs).
Yes, the table comes with chest, thigh, and calf straps for added safety during use.
The table requires some assembly upon delivery, but detailed instructions are provided in the user manual.
