Description

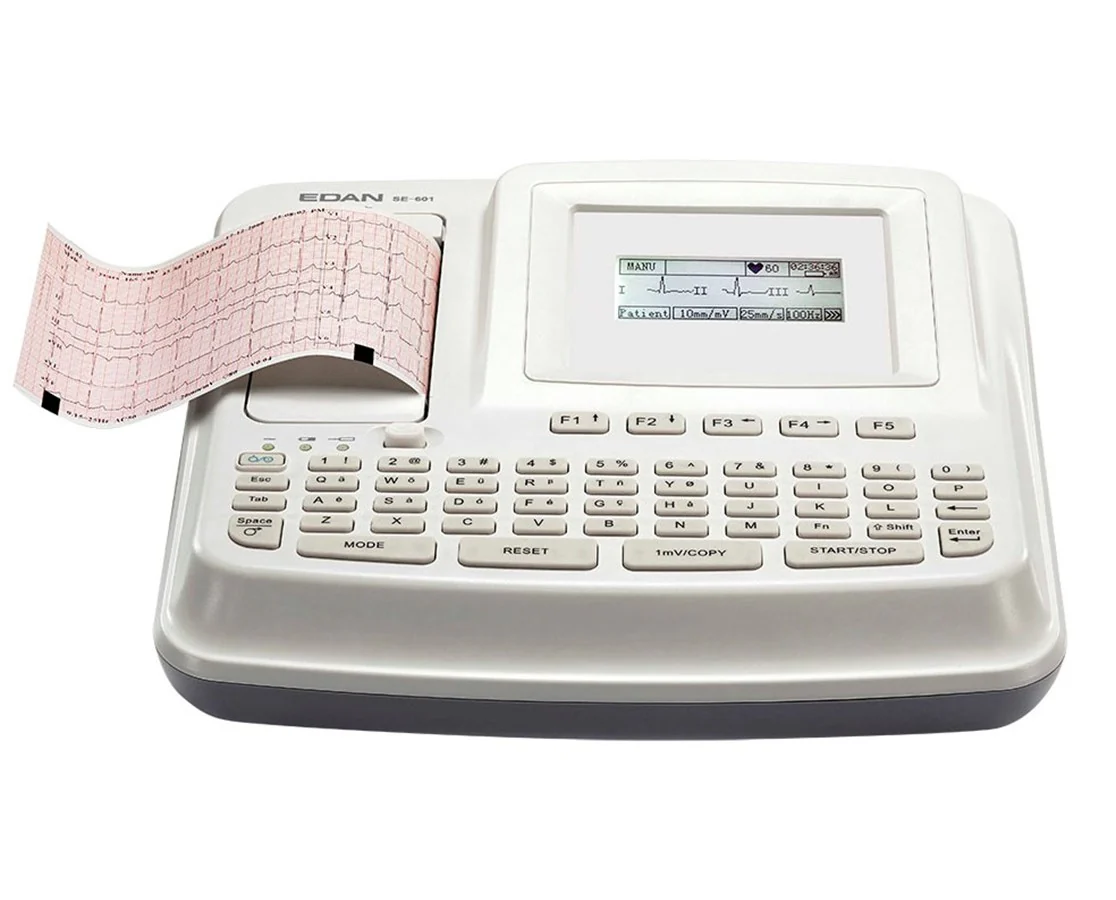

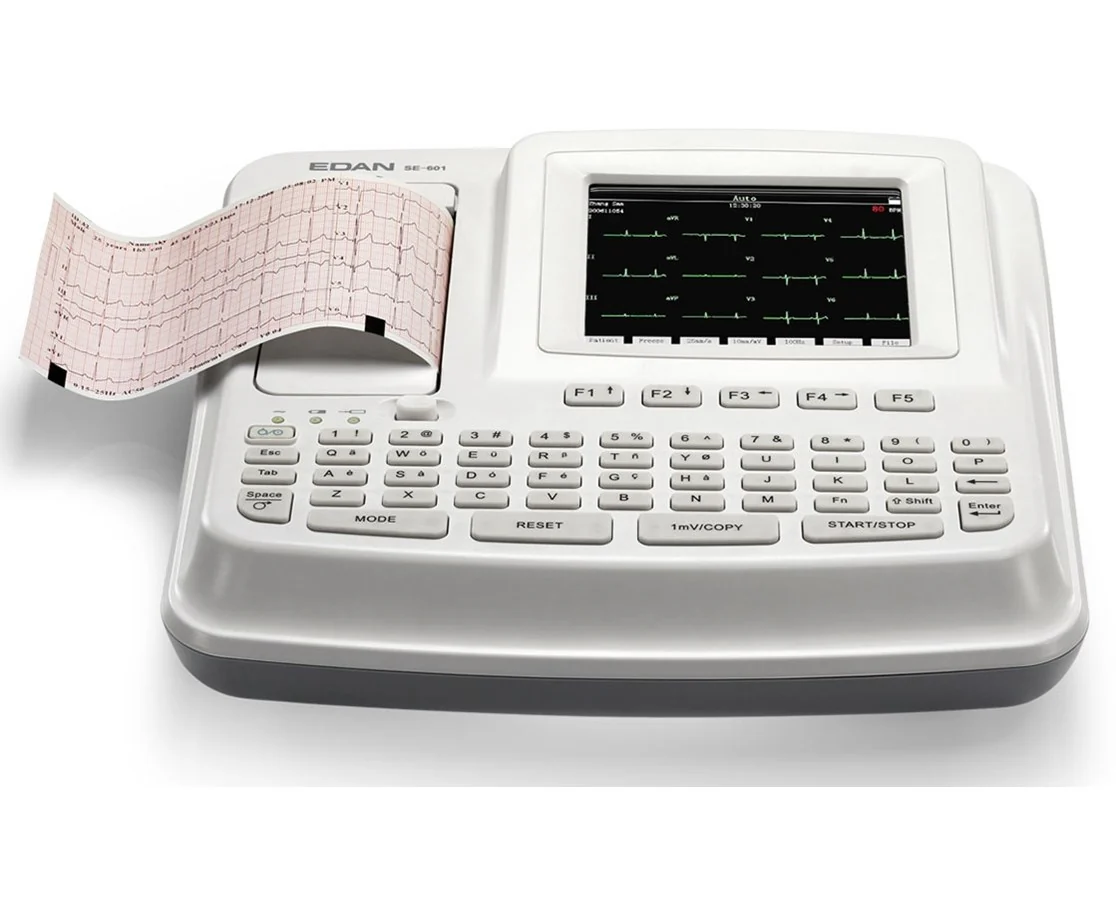

Edan SE-601 Series 6-Channel ECG Machine offers advanced performance and high reliability, proving its cost-effectiveness by providing a dependable service. It facilitates cardiogram review and printout options for adult and pediatric patients in hospital settings, during home visits, or in emergency cases. This lightweight unit with ergonomic design goes where you go.
Excellent Features: SE-601 Series 6-Channel ECG Machine is assembled with a full alphanumeric keyboard that has fast keys for one-touch operation. A user-friendly interface offers a convenient operation of system setup and file management. The unit provides a hint information of lead off, lack of paper and low battery capacity etc. The Weak Signal Detection function and Anti-noise technology ensure sensitive signal acquisition for highly dependable machine performance. This SE-601 Series electrocardiograph provides clinically accurate automatic measurement and interpretation of data and realizes it’s automatic analysis with gender and age specifics.
ECG and Printing Reports: This electrocardiograph gathers the 12-leads ECG signals simultaneously. The 6-channel ECG waves are recorded and simultaneously displayed on the LCD screen in Auto, Manual, Rhythm or R-R mode at your choice. This SE-601 Series Machine is assembled with a built-in high-resolution thermal recorder for cardiogram printouts. In Auto mode the lead groups switch automatically during the printing course. In Manual mode you are the one to switch the lead group. The Rhythm mode allows Single Lead Style and Three Lead Style options and prints out the 60s rhythm-lead and 20s rhythm-lead ECG waveform accordingly. In the R-R mode, you can select a lead to print its 180s ECG waveform, R-R histogram and R-R trend chart. The Machine comprises an automatic baseline adjustment function for optimal printing. SE-601 Series 6-Channel ECG Machine supports external printer via USB.

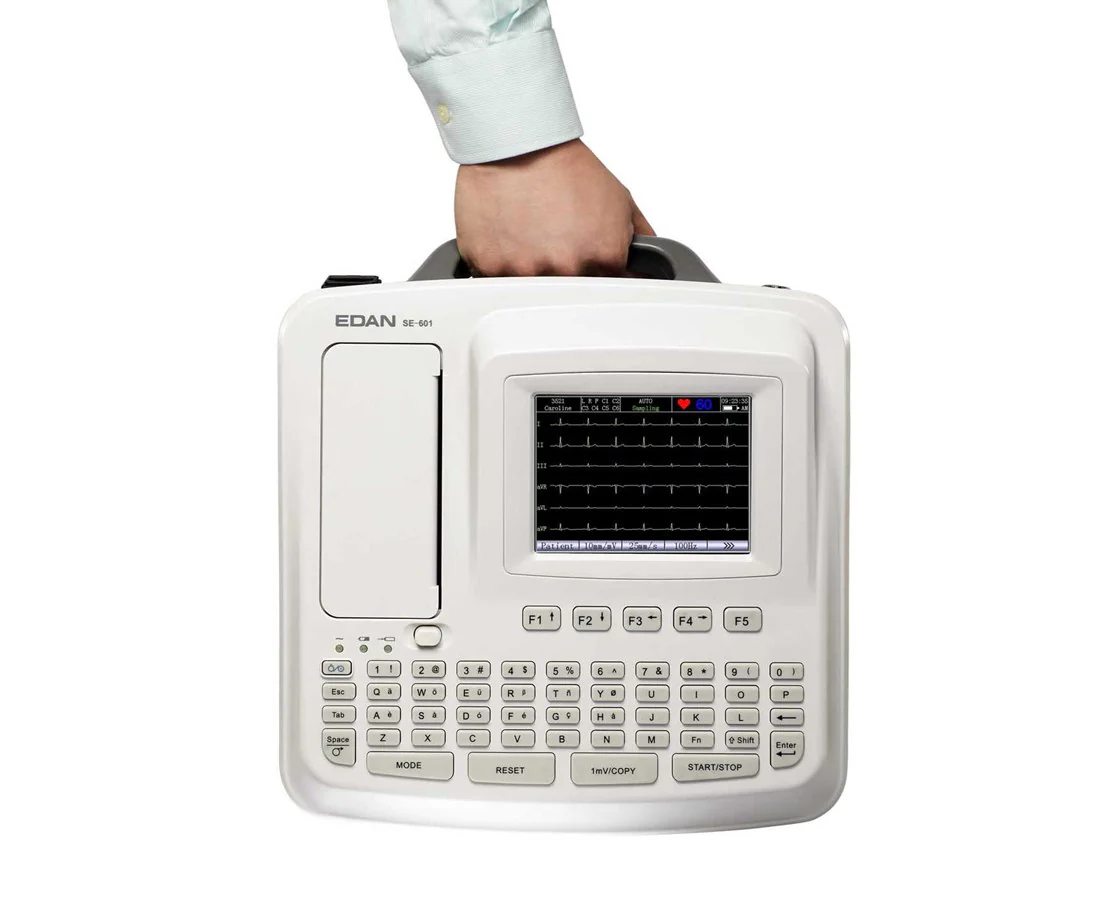

Specifications and Design: Edan SE-601 Series 6-Channel ECG Machine features a large screen conveniently placed on the panel at an optimal angle to the user. It can be powered off a mains supply or a rechargeable battery that provides more than 2 hours of continuous working. The Machine supports USB flash disk and card reader and has USB, Ethernet and RS232 ports. An excellent light-weight design includes a hand-carrying handle and provides a simple transportation option.
Features
- High-Resolution Color LCD Screen Optional.
- Advanced Automatic Measurement and Diagnosis Software.
- Full Alphanumeric Keyboard With One-Touch Operation.
- Weak Signal Detection Function and Anti-noise Technology.
- Built-In High-Resolution Thermal Recorder.
Product Specifications
| PC Compatible?: | Yes |
|---|---|
| Printer?: | Yes |
| Country of Origin: | USA |
| Dimensions: | 12.2" L x 12.7" W x 3.98" H |
| Weight: | 5.7 lbs (excluding recorder paper and battery) |
| Display Type: | LCD |
| Operating Humidity: | 25%~80% Non-Condensing |
| Safe Operating Temperature: | +5ºC (+41ºF) ~ +40ºC (+104ºF) |
| Safe Storage Temperature: | -20? (-4ºF) ~ +55? (+131ºF) |
| Storage Humidity: | 25%~93% Non-Condensing |
| LOWPASS Filter: | 150Hz/100Hz/75Hz |
| EMG Filter: | 25Hz/35Hz/45Hz/OFF |
| DFT Filter: | 0.05Hz / 0.15Hz / 0.25Hz / 0.32Hz / 0.5Hz / 0.67Hz |
|---|---|
| Frequency Range: | 0.05Hz ~ 150Hz (-3dB) |
| Sampling Rate: | 1000 Hz |
| Memory Capacity: | 100 ECGs storage |
| Battery Life: | = 300 times |
| Power Supply Type: | Mains / Internal Li-ion Battery |
| Monitoring formats: | 12-lead ECG continuous monitoring |
| Print formats: | 6-channel ECG waves |
| Print speeds: | 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s(±3%) |
| Standards & Certifications: | 2008 Medical device License issued by Health Canada for ECG; 2005 CE Mark for ECG |
| Warranty: | 2 Years |
| CA Prop 65 Warning: | Yes |
