Express 12 Channel ECG Machine
In Stock
Usually ships in Drop Ship
Sale:
$2,874.71
1
/ Each
Want it shipped today?
Order within: 0 days 21 hours and 19 minutes
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description

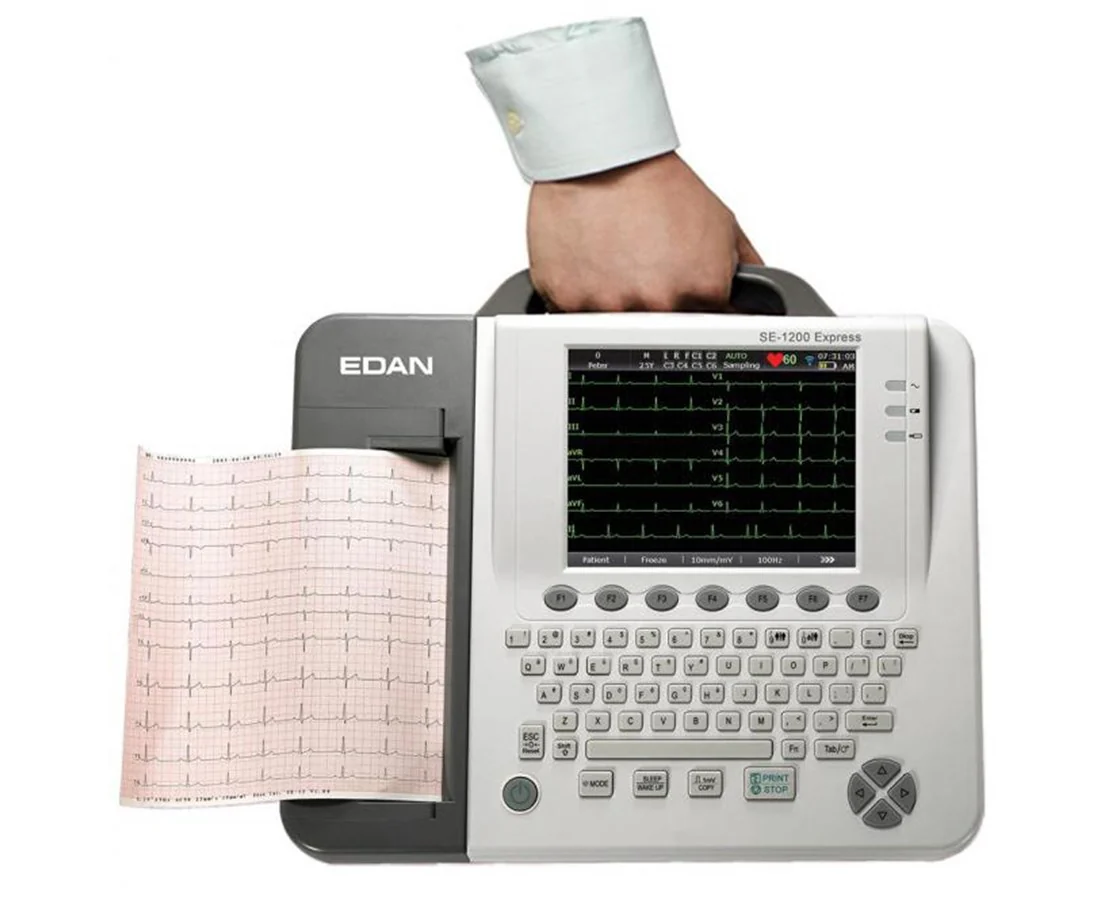

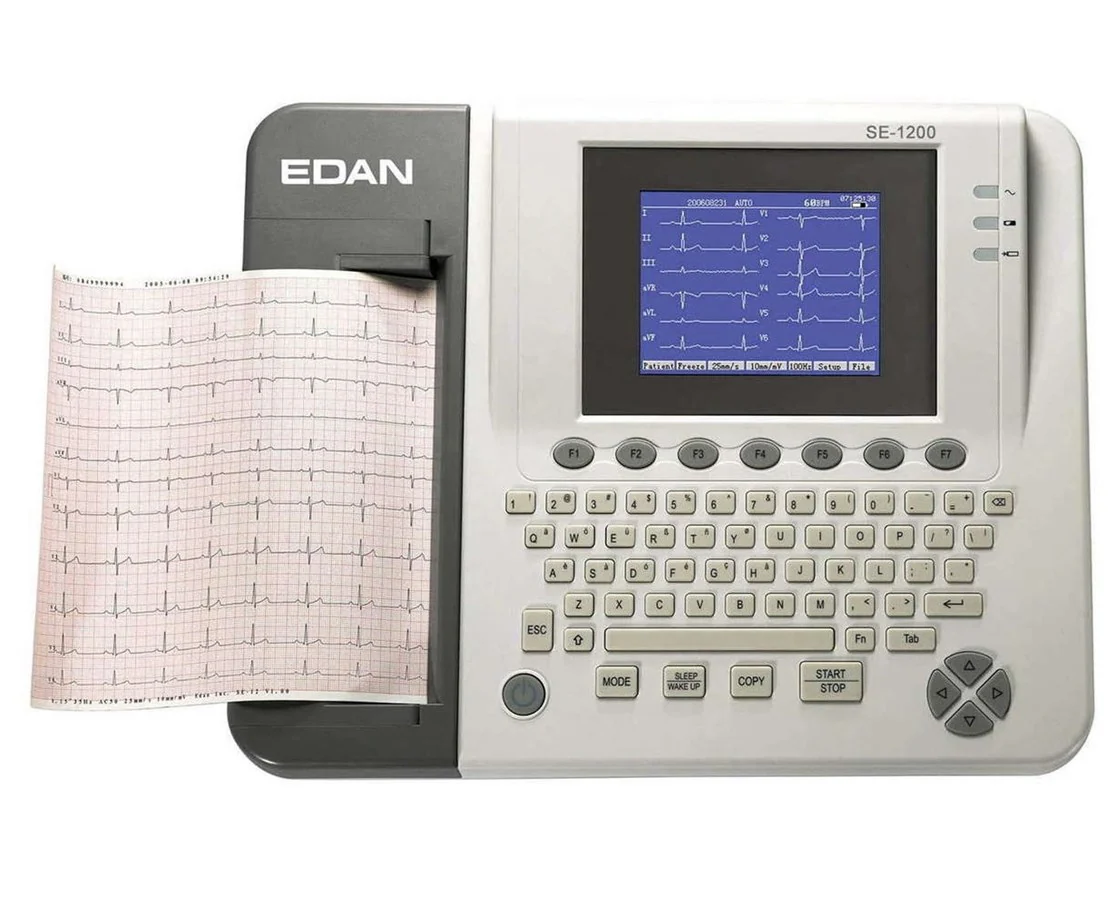

Edan SE-1200 Series ECG Machine provides advanced performance and high reliability. This 12-channel electrocardiograph is a low-weight, portable unit with a built-in high-resolution thermal printer suitable for use on adult and pediatric patients. It will fit both clinic and hospital settings, providing a number of flexible transportation, mounting, and storage solutions.
Excellent Features: Edan SE-1200 Series ECG Machine is equipped with a full alphanumeric keyboard featuring excellent functional one-touch operation keys. It features an 8.4" LCD display with two screen-type options. The unit also supports a bar code scanner for enhanced streamlined workflow. The unit weight is 11.0 lbs.
ECG: SE-1200 Series ECG Machine facilitates 12-lead ECG measuring for the acquisition of ECG parameters and electrocardiograms. It features a simultaneous acquisition mode, 1000 Hz sampling frequency, and 4 functional filters.
Printer and Printing ECG Reports: A build-in high-resolution thermal printer allows the use of both roll and Z-fold printing paper. The machine is assembled with an automatic baseline adjustment for optimal printing and supports an external printer, allowing ECG report printing on A4-size fax paper and US letter-size paper. The ECG report printing can be conducted in four modes: auto, manual, rhythm, and R-R analysis modes. In Auto mode the lead groups are switched automatically; in Manual mode, you are to determine the lead group to be printed; in Rhythm mode the machine prints 60s rhythm-lead ECG waveforms of one lead or 20s rhythm-lead ECG waveform of three leads; in R-R analysis mode you can print R-R histogram and trend chart, 180s compressed ECG waveform and all the R-R interval values of any lead.
Accurate Clinical Performances: Edan SE-1200 Series ECG Machine employs all the most recent technologies to provide excellent and stable performance. Weak signal detection function and anti-noise technology significantly reduce end effects and enhance resistance against low signal-to-noise ratio. Automatic measurement and interpretation functions provide clinically accurate results. To assist and extend your diagnosis capabilities, SE-1200 Series electrocardiograph enables 120s real-time ECG waveforms freezing and review. An excellent extended printing function once arrhythmia is detected will help to exert a further rhythm analysis.
Data Management and Connectivity: The built-in data management with reports review function allows automatic or real-time data transmission to PC via LAN or WiFi in DAT, SCP, FDA-XML, and PDF formats. SE-1200 Series ECG Machine is assembled with USB, RS232, and Ethernet ports.
Features
- Built-in High-Resolution Thermal Printer and External Printer Support.
- Multi-Color Touch Screen Option.
- Weak Signal Detection and Anti-Noise Technology for Accurate Performance.
- Real-Time ECG Waveforms Freezing and Review.
- Built-In Data Management with Reports Review.
Product Specifications
| CA Prop 65 Warning: | Yes |
|---|---|
| PC Compatible?: | Yes |
| Printer?: | Yes |
| Country of Origin: | USA |
| Dimensions: | 16" L x 20" W x 12" H |
| Weight: | 20 lb |
| Operating Humidity: | 25%~80% Non-Condensing |
| Safe Operating Temperature: | +5ºC (+41ºF) ~ +40ºC (+104ºF) |
| Safe Storage Temperature: | -20? (-4ºF) ~ +55? (+131ºF) |
| Storage Humidity: | 25%~93% Non-Condensing |
| LOWPASS Filter: | 150Hz/100Hz/75Hz |
| EMG Filter: | 25Hz/35Hz/45Hz/OFF |
|---|---|
| DFT Filter: | 0.05Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz |
| Frequency Range: | 0.05Hz ~ 150Hz (-3dB) |
| Sampling Rate: | 1000 Hz |
| Memory Capacity: | 100 ECGs storage |
| Battery Life: | 5 hours |
| Power Supply Type: | 100V-240V~ 50Hz/60Hz |
| Monitoring formats: | Auto, Manual, Rhythm, R-R |
| Print speeds: | 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3%) |
| Warranty: | 2 Years |
