Description

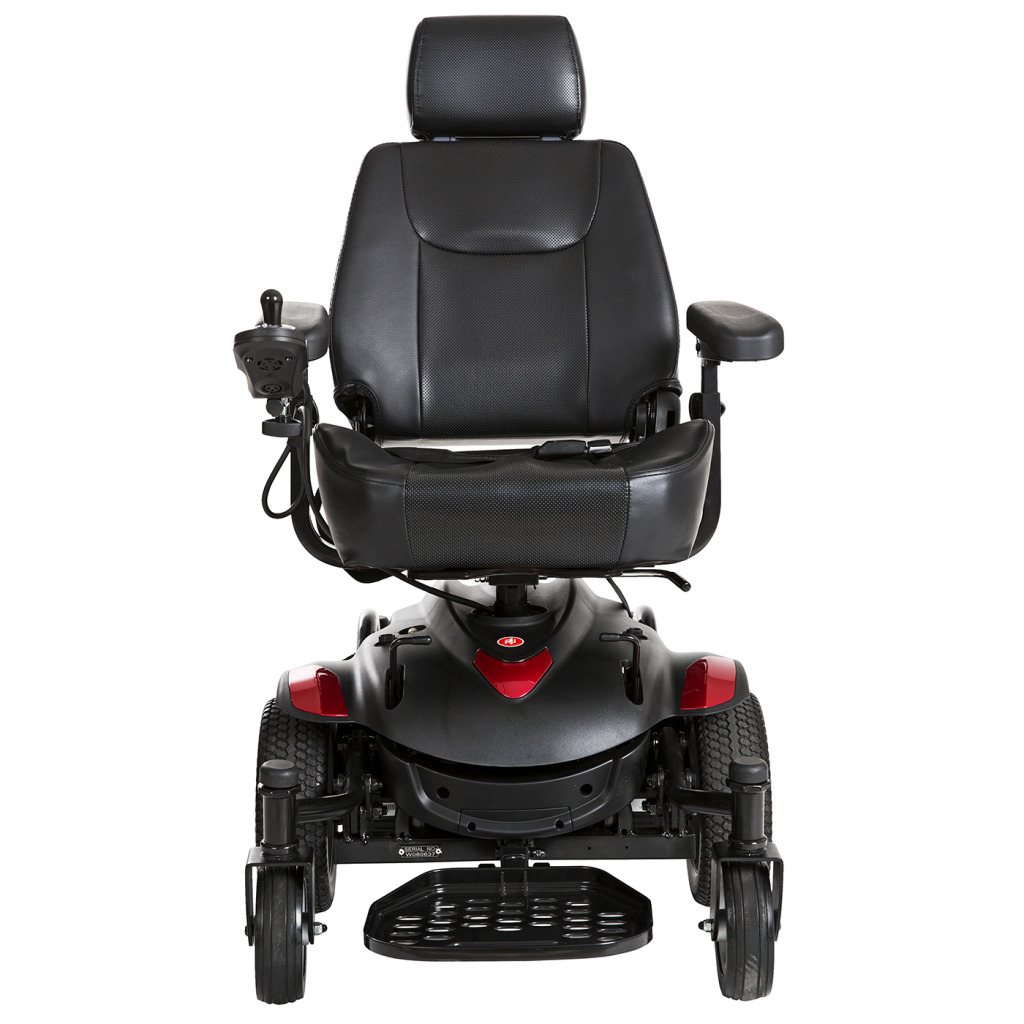

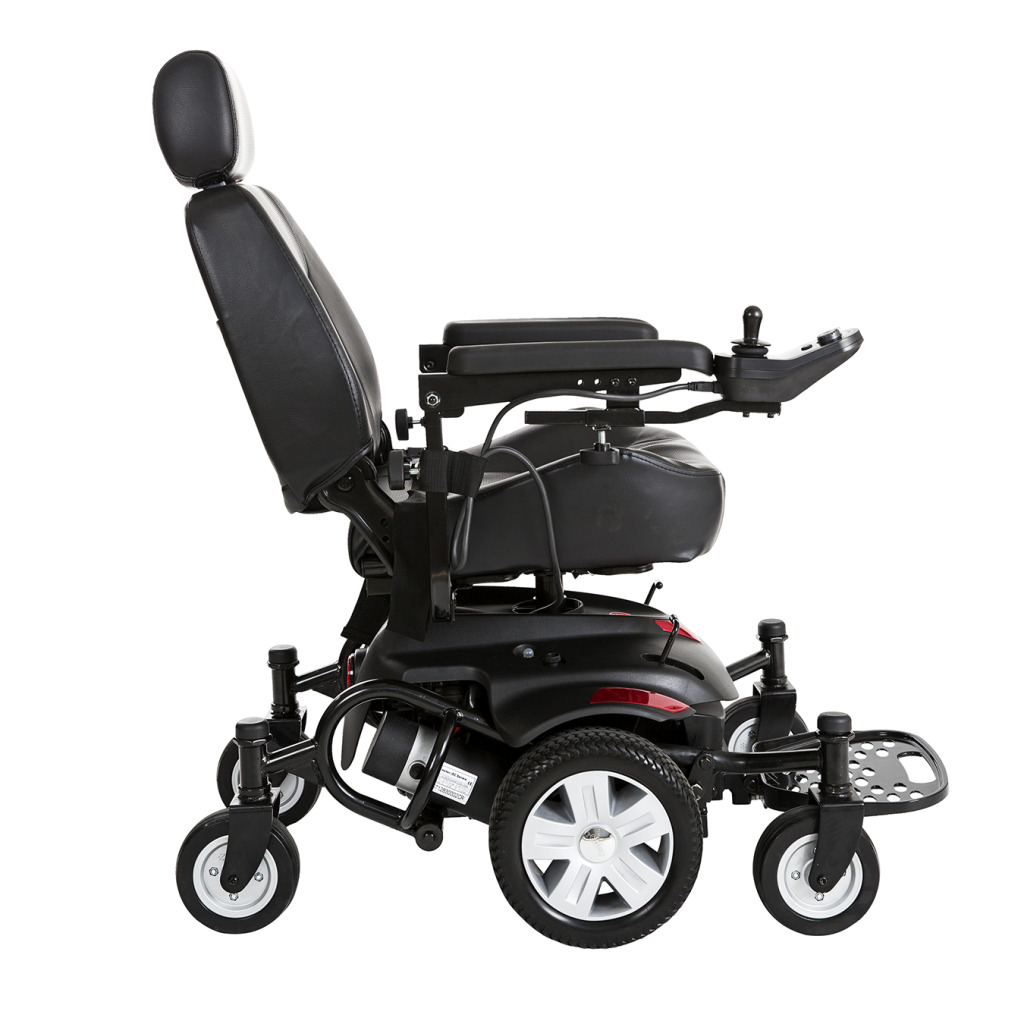

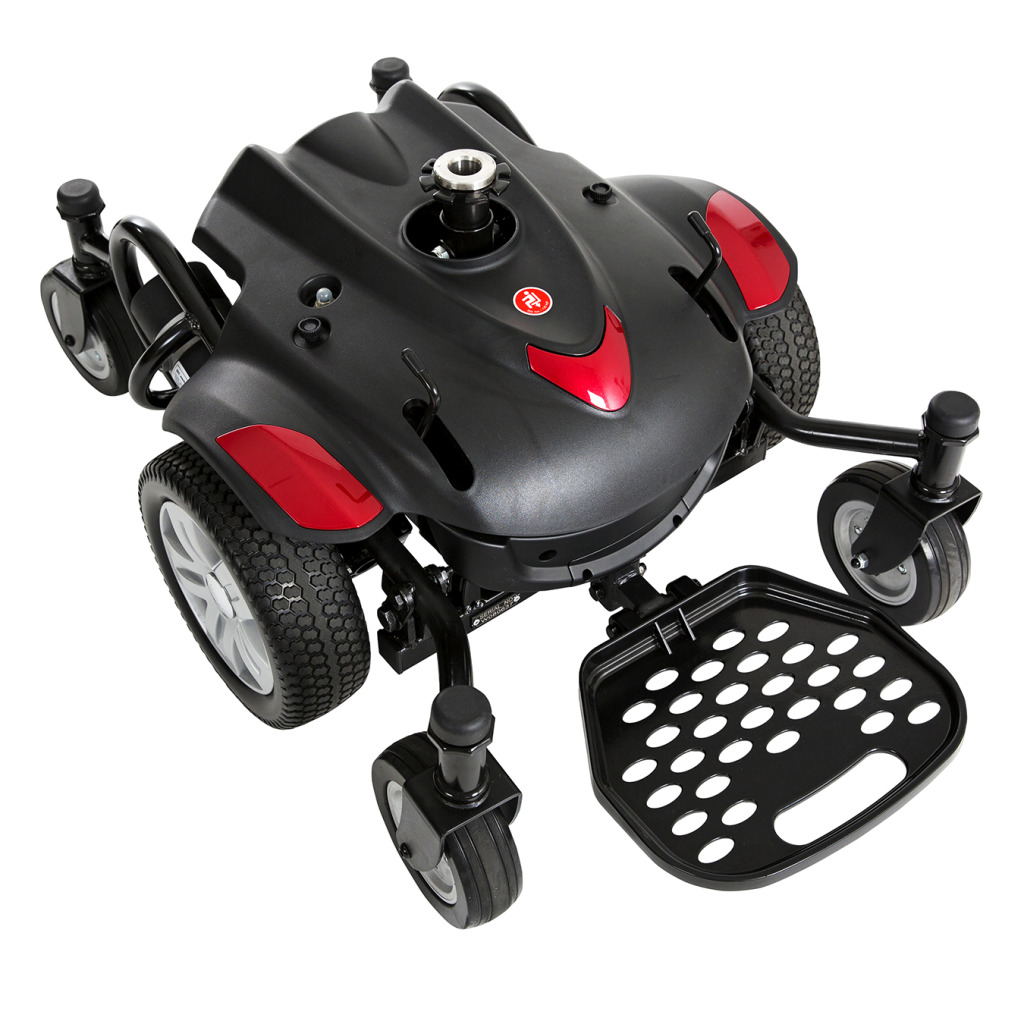

The Drive Medical Titan AXS Mid-Wheel Power Wheelchair offers a comfortable and stylish ride for users seeking unparalleled maneuverability on an exceptionally stable platform. The Titan AXS power wheelchair drive design allows you to turn on a dime with drive-wheels located directly under user, and a unique frame crafted to keep all 6 wheels on the ground at all times for superior stability. The Titan AXS power wheelchair is ideal for indoor use, navigating tight, enclosed spaces with ease. Choose from a variety of captain's seats available in 16" – 22" widths, and customize it to your liking with interchangeable color panels in red and blue included with every unit.
Features
- Captain’s seat, available in 7 different width and depth combinations, is height adjustable, reclines, swivels in 45° increments, and has a height adjustable headrest.
- Padded, contoured armrests with height, width and angle adjustment.
- Adjustable length controller mount.
- Interchangeable color panels in red and blue included.
- Flip-up footplate with height, depth and angle adjustment.
- Positioning belt included.

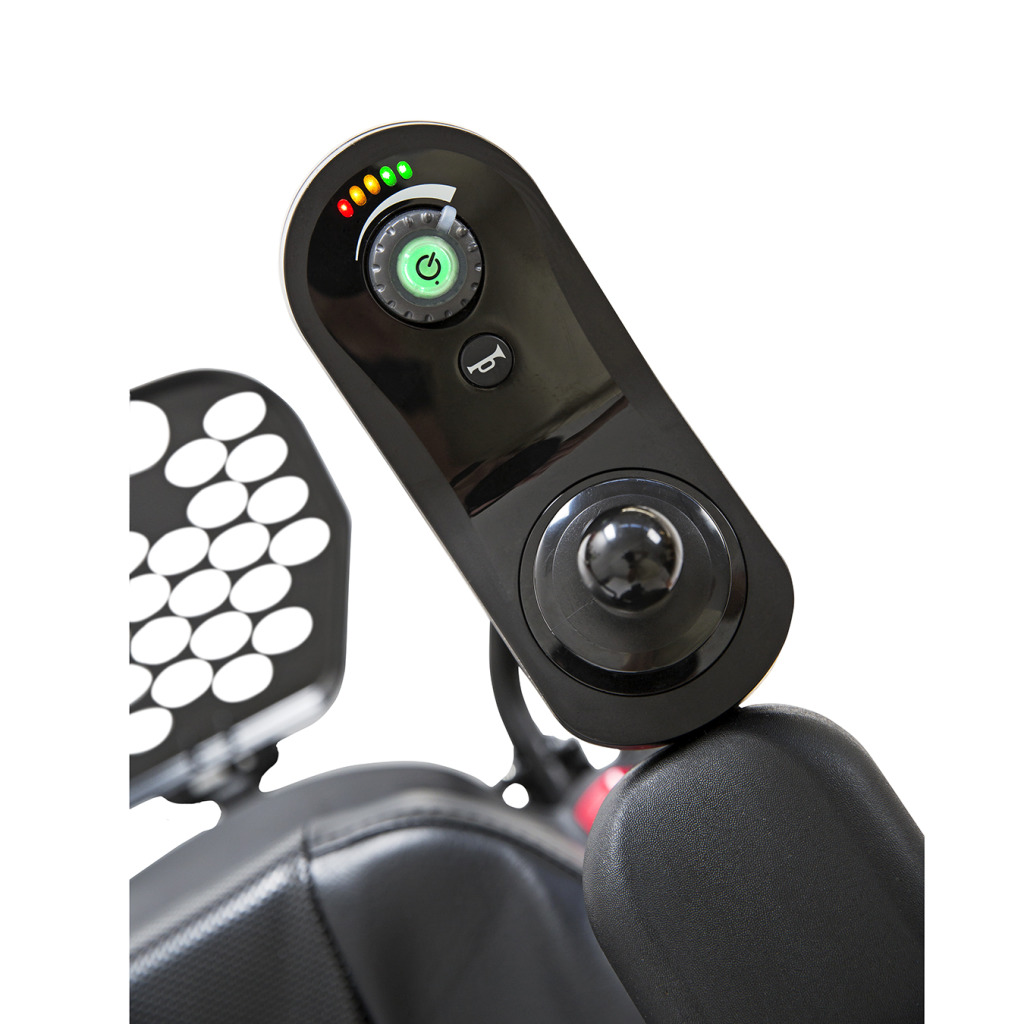

- Programmable controller with Bluetooth electronics for easy trouble-shooting and service.
- Flat-free, non-marking tires.
- Easy freewheel operation.
Product Specifications
| Manufacturer Part TITANAXS-18CS: | Seat Size 18" x 18" |
|---|---|
| Manufacturer Part TITANAXS-20CS: | Seat Size 20" x 18" |
| Manufacturer Part TITANAXS-22CS: | Seat Size 22" x 20" |
| HCPCS Code: | K0823 |
| Back Height: | 18" |
| Base Weight: | 87 lbs |
| Batteries (Pair): | 12V x 33AH |
| Battery Charger: | 4A |
| Battery Weight (Pair): | 44 lbs |
| Brakes: | Electromagnetic |
| Caster Wheels: | 6" x 2" |
| Controller: | Dynamic Linx 40A |

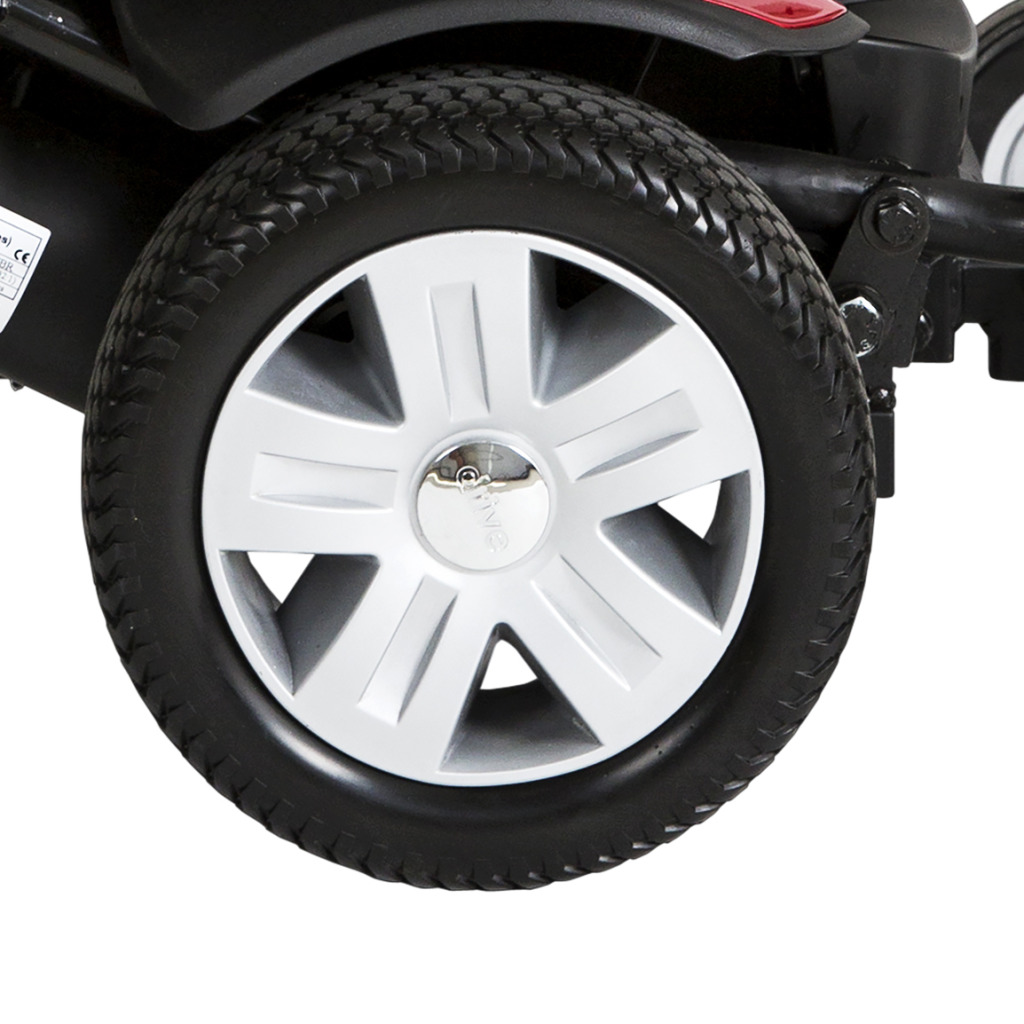

| Drive Wheels: | 10" x 3" |
| Estimated Range: | 19 miles |
| Freewheel Mode: | Yes |
| Ground Clearance: | 2.5" |
|---|---|
| Max Climbing Angle: | 6° |
| Motor: | 320W x 4600RPM |
| Overall Dimensions: | 39.25" L x 23.5" W x 44" H |
| Seat to Floor Height: | 21.75" |
| Seat Weight: | 40 lbs |
| Tires: | Flat Free |
| Top Speed: | 4 mph |
| Total Weight: | 171 lbs |
| Turning Radius: | 20" |
| Warranty on Batteries: | 12 Months |
| Warranty on Electronic: | 24 Months |
| Warranty on Frame: | Limite Lifetime |
| Weight Capacity: | 300 lbs |
