MedVue Medical Weight Analyzer Indicator, International
Usually ships in 1 - 3 Days
$926.45
Buy with confidence.
Contact our experts today.

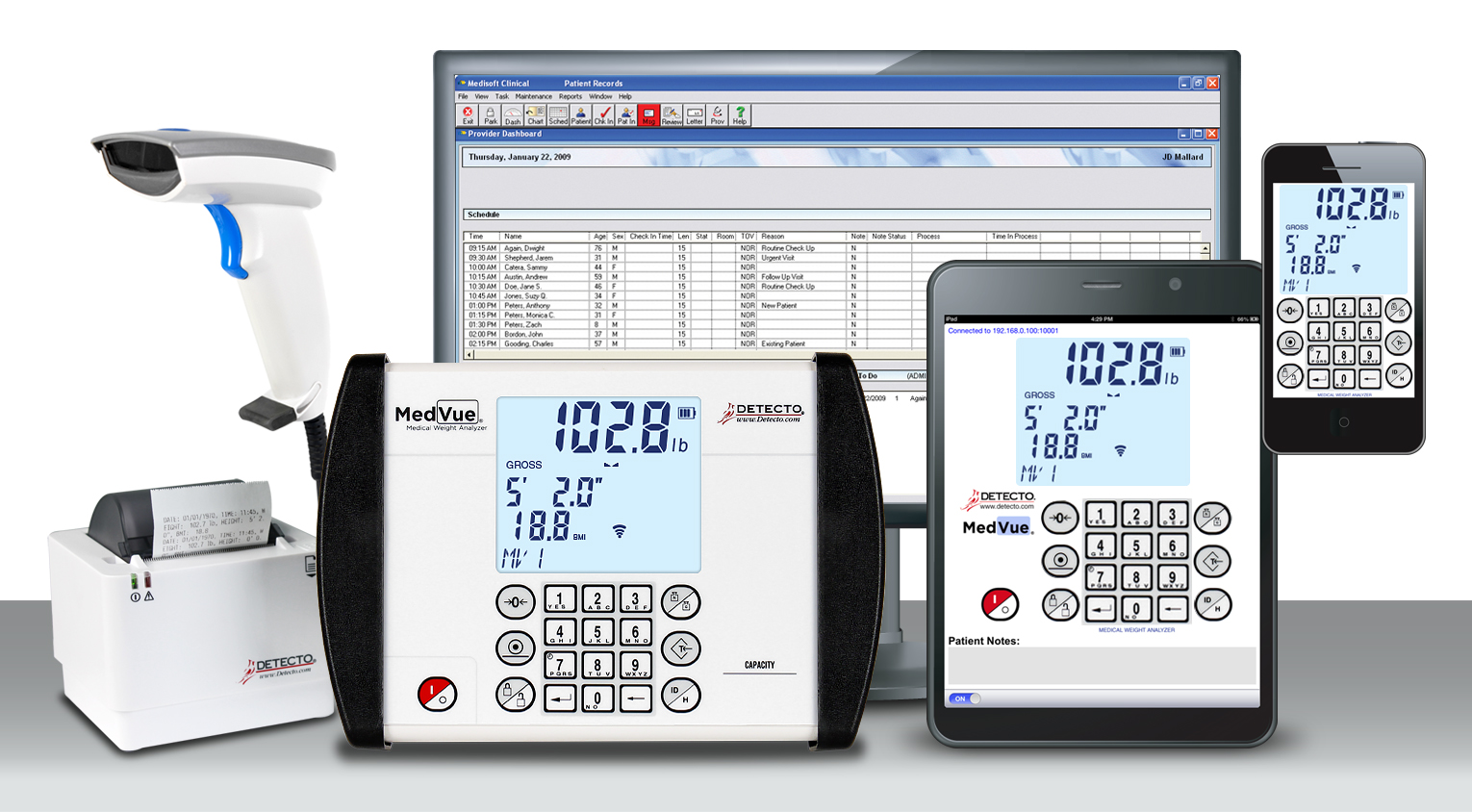

Detecto’s MedVue medical weight analyzer is utilized on select clinical scales, including Detecto’s wheelchair, bariatric, and stretcher scales. The MedVue features a vivid 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVue’s 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include units locking into kilograms or pounds, 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, four different languages available in set-up (English, Spanish, French, and German), and Wi-Fi/Bluetooth models are available with up to 150 ft. wireless range. The MedVue offers a host of both wired and optional wireless connectivity for sending measurement data to multiple devices all at once.
- Units Locking into Kilograms or Pounds.
- Wi-Fi/Bluetooth Models Available.
- Weight, Height, and BMI All Displayed Simultaneously.
- 14-Digit Patient ID.

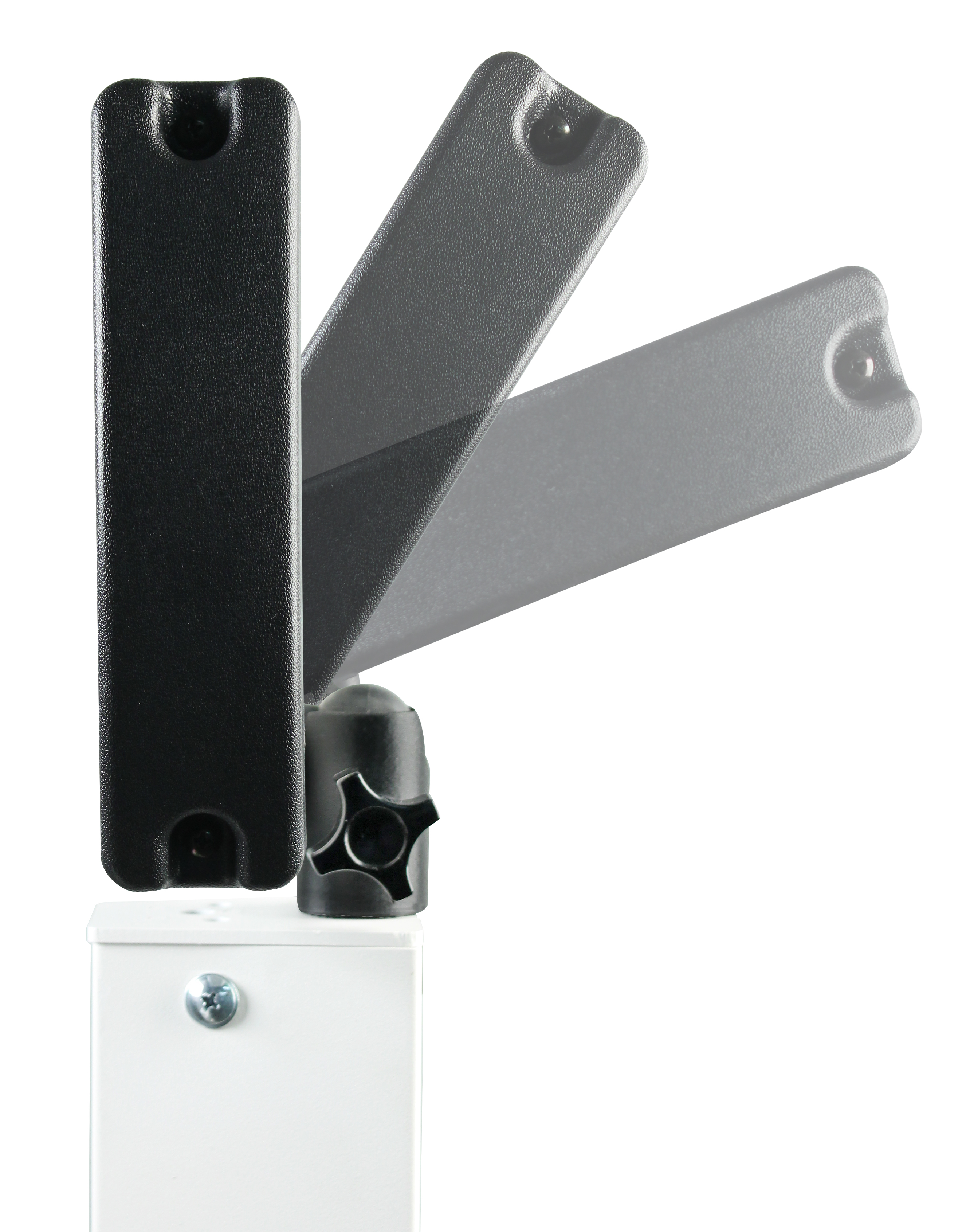

- 350-Degree Swivel Mounting Bracket.
- 6 C Batteries (Not Included).
- 99 Stored Tare Weights.
- BMI Calculation.
- EMR/EHR Ready.
- Nearly 1-in-High Weight Readouts.
- Backlit Blue Display.
- NTEP Legal for Trade.
- RS232 Serial and USB Ports Standard.
- Sturdy Steel Construction.
Product Specifications
| Manufacturer Part MV2: | Option Standard |
|---|---|
| Manufacturer Part MV2C: | Option with Bluetooth / WiFi |

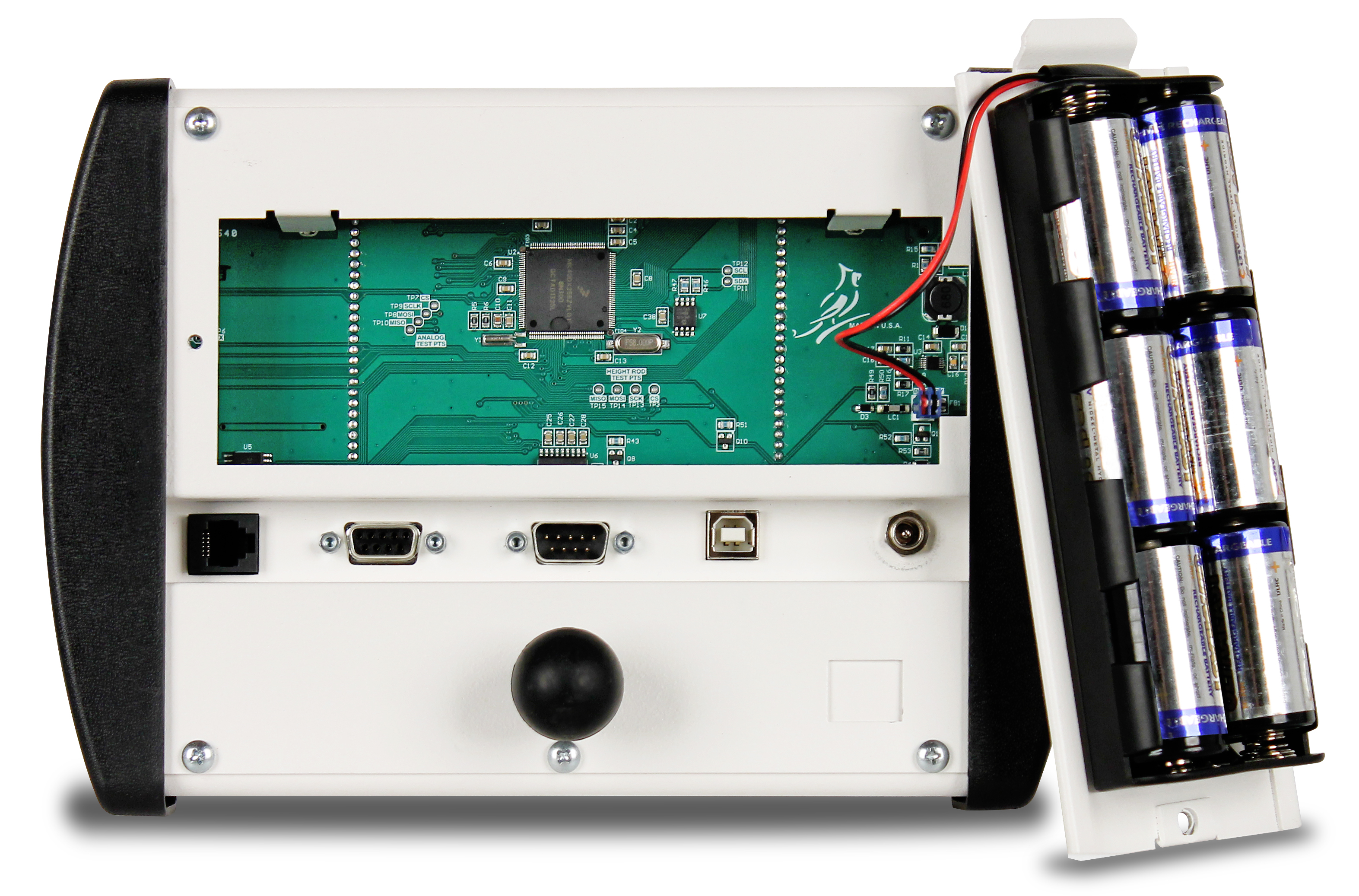

| Power Requirements: | 6 C cell Alkaline, Ni-Cad, or NiMH batteries or an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR) |
| Wi-Fi/Bluetooth Connectivity: | Up to 150 ft. wireless range (depending on environmental factors) |
| Units Locking: | Established upon initialization and user selects either LB or KG |
| Overall LCD Display Size: | 3.5" W x 3" H (89 mm W x 76 mm H) |
| Weight Display: | 5 digits, seven segments, 0.875" (22.23 mm) |
| Height Display: | 4-digit, seven-segment, 0.5" (12.7 mm) |
| Body Mass Index Display: | 3-digit, seven-segment, 0.5" (12.7 mm) |
| ID Display: | 14 digits, 14 segments, 0.35" (8.89 mm) |
| Sensitivity: | 0.5 uV/division (0 to 3.0 mV/V), Class III |
| Operating Temperature: | 14 to 104 ºF (-10 to +40 ºC) |
| Signal Input Range: | 0 to 15mV max |
| Transducer Excitation: | 5.0 VDC |
| Number of Load Cells: | up to 4 each 350 Ω |
|---|---|
| Load Cell Cable Length: | 30 feet (9 meters) max |
| Resolution: | 10.000 divisions |
| NTEP: | Certificate of Conformance Number 13-011 |
| Division Value: | 1, 2 or 5 x 1, 0.1, 0.01, 0.001 |
| Sample Rate: | 1 to 100 samples per second selectable |
| Auto Zero Range: | 0.5 or 1 through 9 divisions |
| Weighing Units: | Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg), and Kilograms/Pounds (kg/lb) |
| Keyboard: | Membrane type with 19 keys |
| Enclosure Size: | 9.8" W x 6.8" H x 1.8" D (248.9 mm W x 172.7 mm H x 45.7 mm D) |
| Construction: | Painted Steel |
| Battery Life: | 7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF) |
| LCD Viewing Range: | Up to 30 feet / 10 meters for weight digits |
