MedVue Medical Weight Analyzer Indicator
In Stock
Usually ships in 1 - 3 Days
Sale:
$926.45
1
/ Each
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description

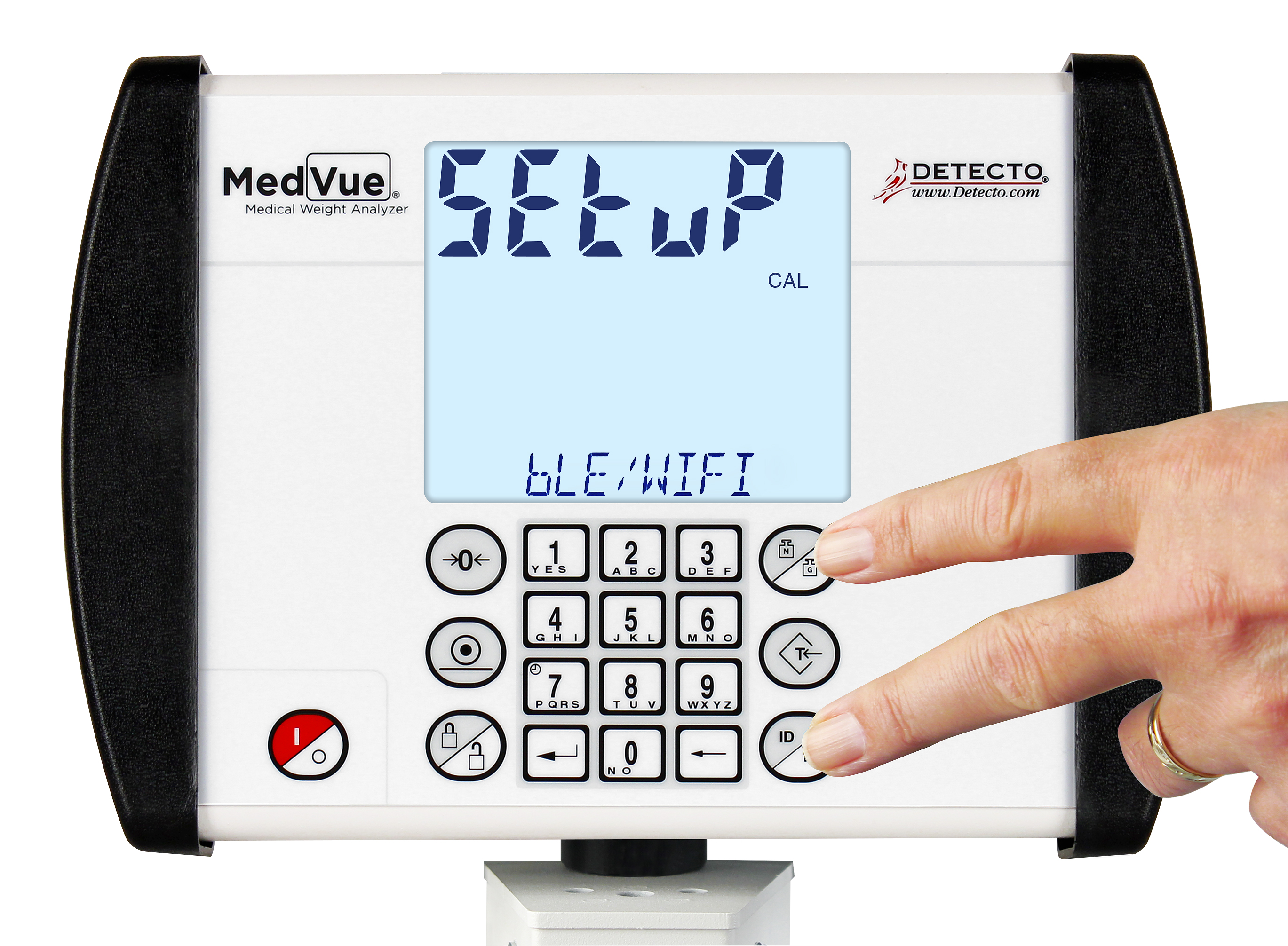

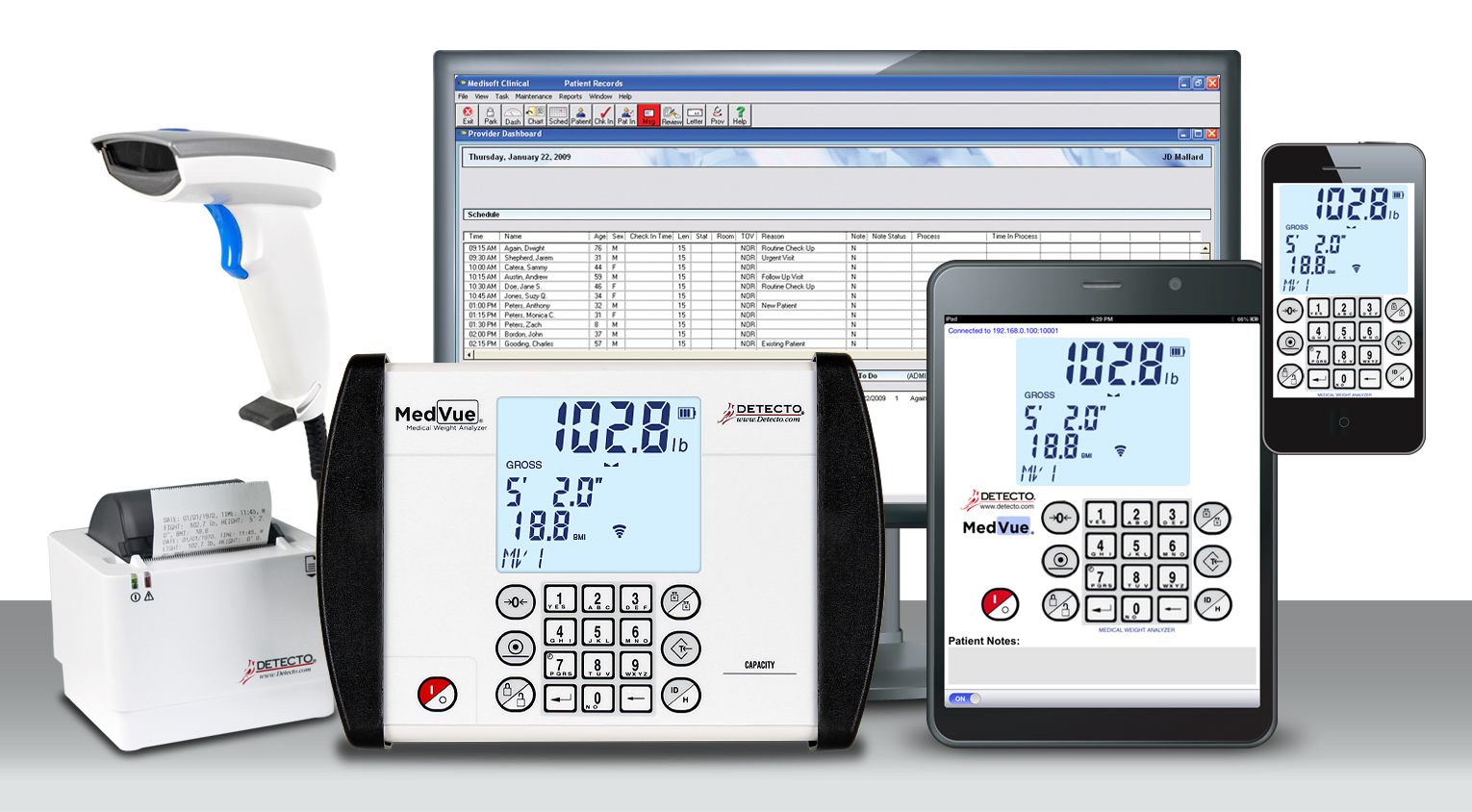

Detecto’s MedVue medical weight analyzer is utilized on select clinical scales, including Detecto’s wheelchair, bariatric, and stretcher scales. The MedVue features a vivid 3.5-in-wide by 3-in-high backlit LCD display screen with nearly 1-in-high weight digit readouts for easy visibility. The MedVue’s 350-degree swivel mounting bracket allows the display to be tilted and rotated into position wherever it is the most convenient for the medical professional and/or patient to view. A host of other benefits include units locking into kilograms or pounds, 14-digit patient ID which may be entered via the alphanumeric keypad, 99 stored tare weights, 200 stored transactions, 1LOOK display, four different languages available in set-up (English, Spanish, French, and German), and Wi-Fi/Bluetooth models are available with up to 150 ft. wireless range. The MedVue offers a host of both wired and optional wireless connectivity for sending measurement data to multiple devices all at once.
Features
- Units Locking into Kilograms or Pounds.

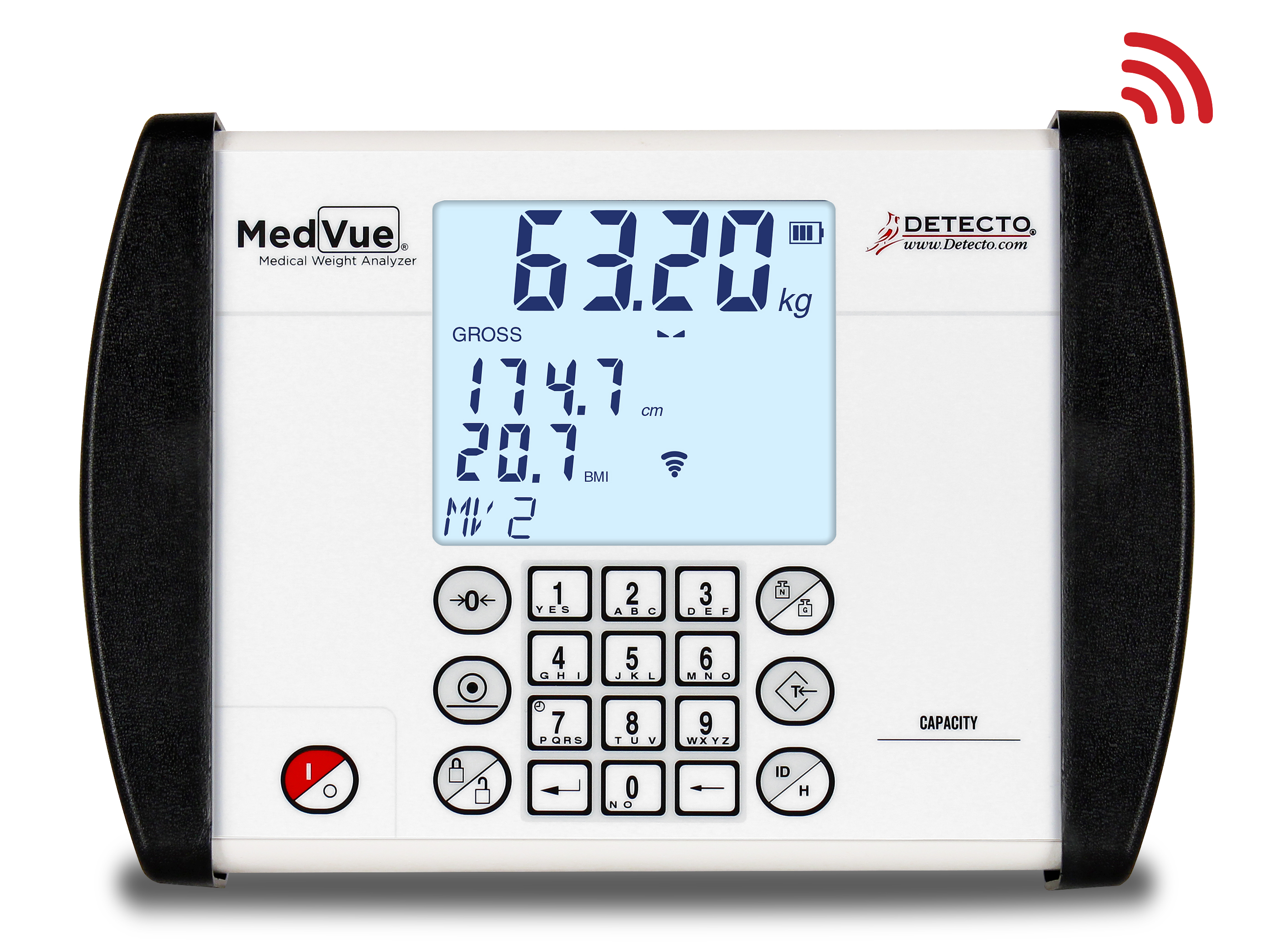

- Wi-Fi/Bluetooth Models Available.

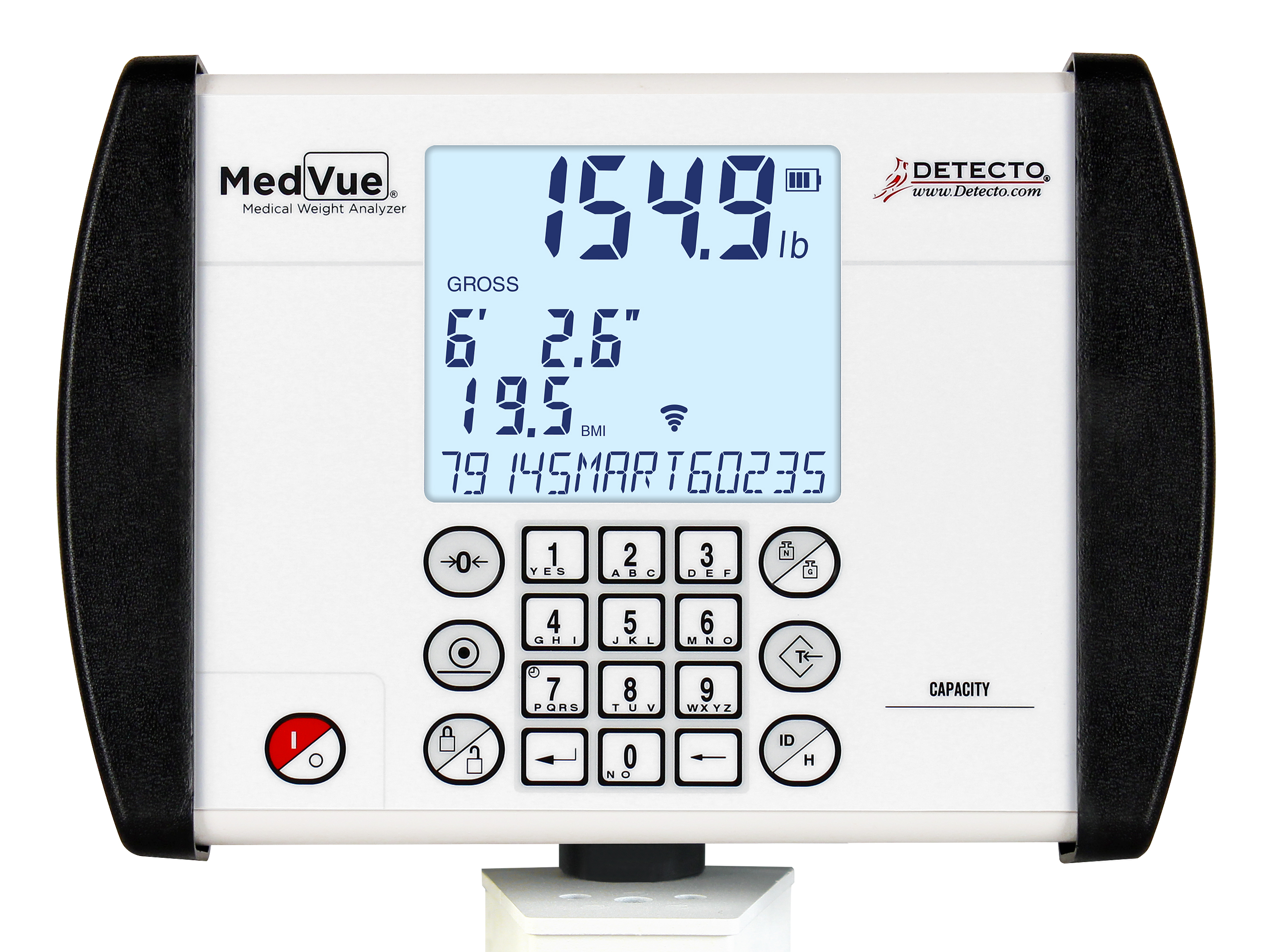

- Weight, Height, and BMI All Displayed Simultaneously.
- 14-Digit Patient ID.

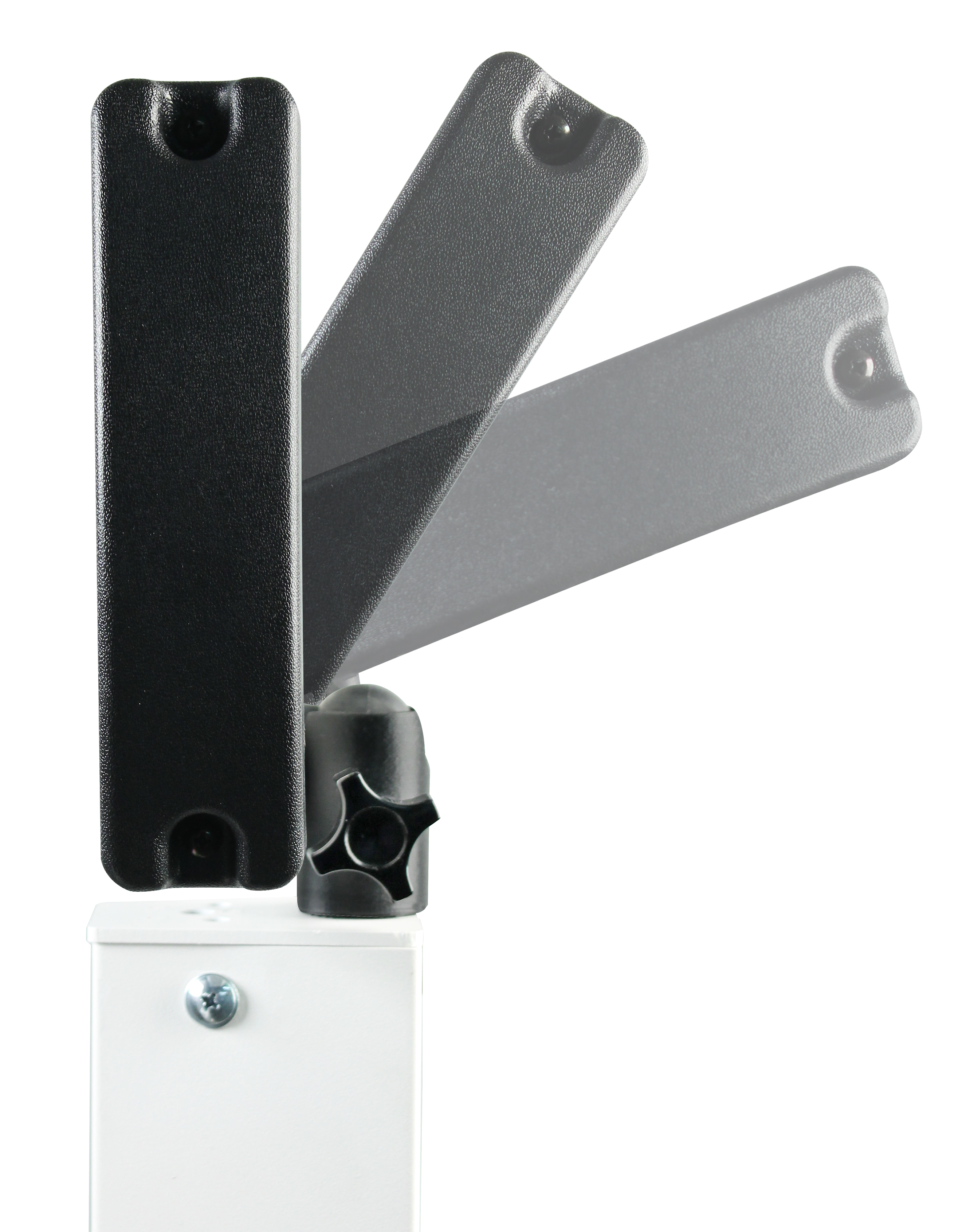

- 350-Degree Swivel Mounting Bracket.

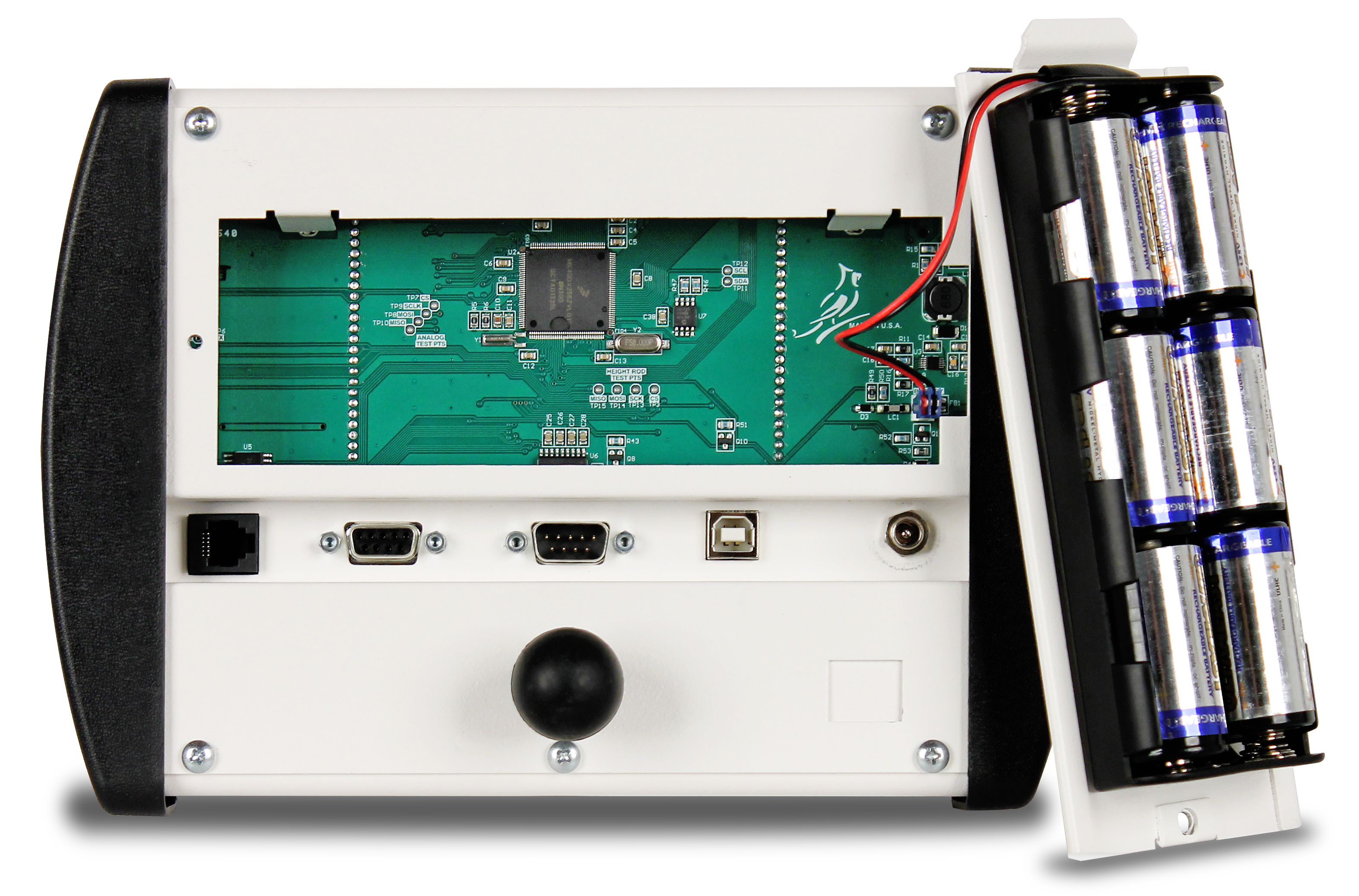

- 6 C Batteries (Not Included).
- 99 Stored Tare Weights.
- BMI Calculation.
- EMR/EHR Ready.
- Nearly 1-in-High Weight Readouts.
- Backlit Blue Display.
- NTEP Legal for Trade.

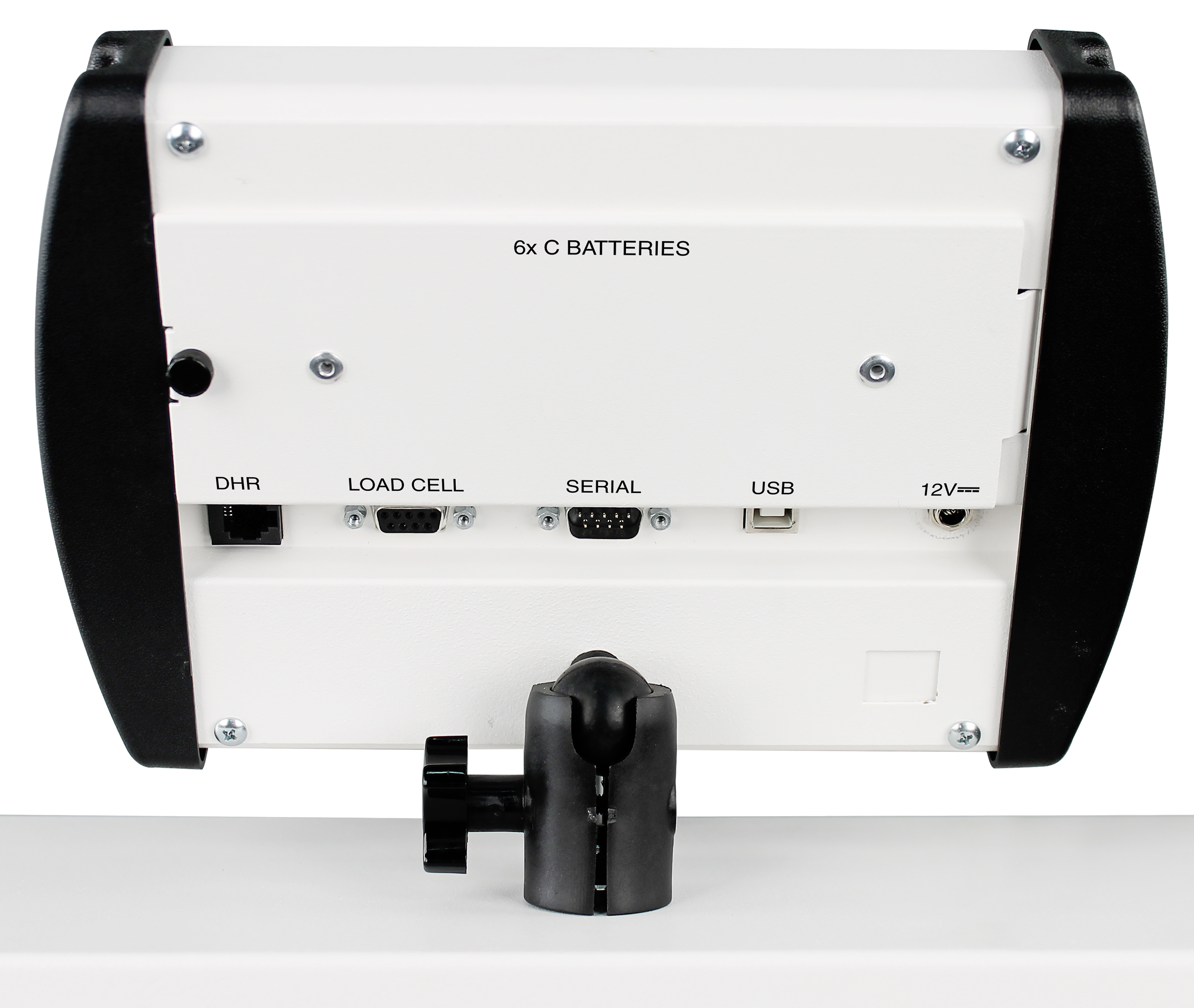

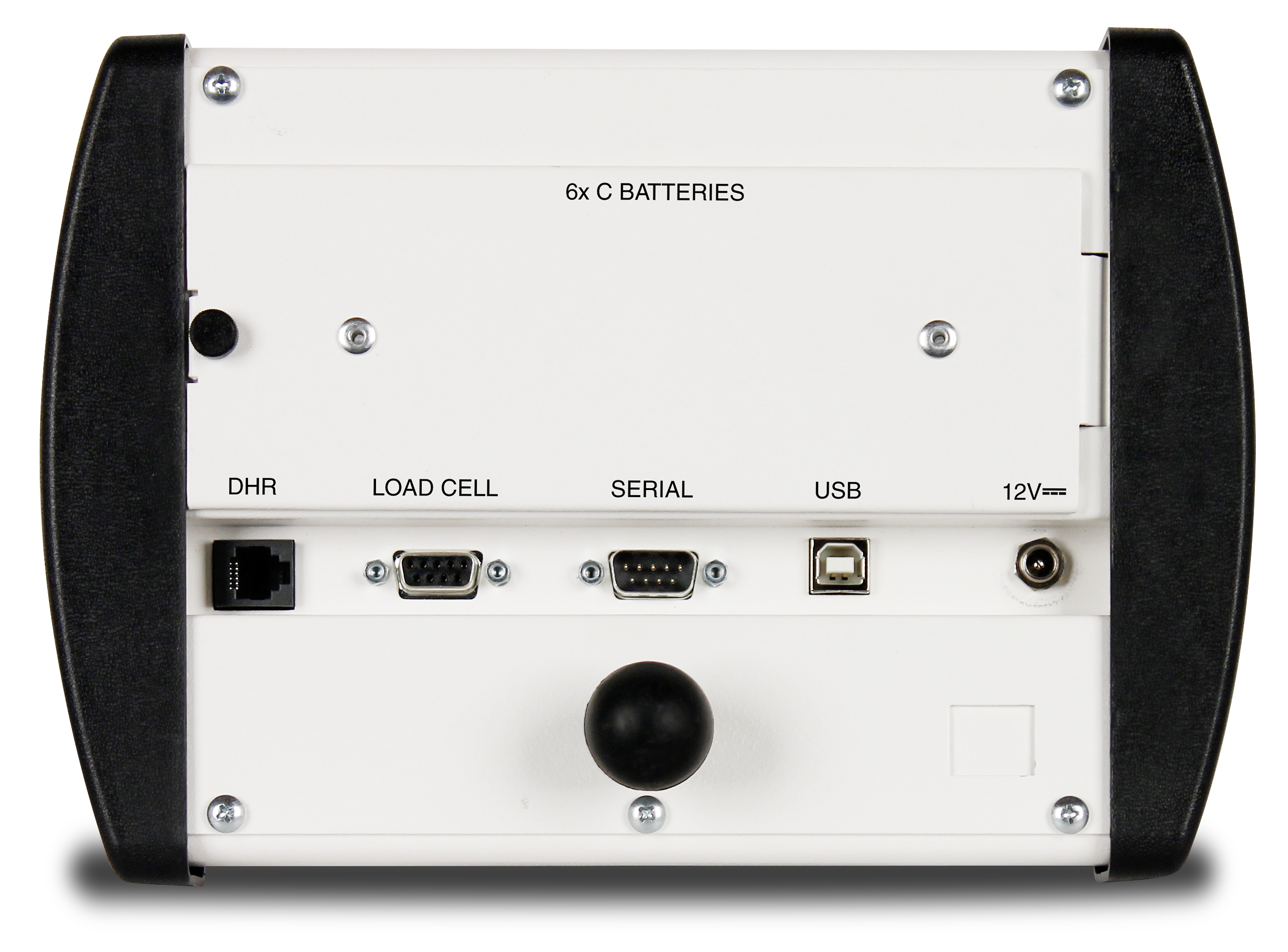

- RS232 Serial and USB Ports Standard.
- Sturdy Steel Construction.
Product Specifications
| Manufacturer Part MV1: | Options Standard |
|---|---|
| Manufacturer Part MV1C: | Options with Bluetooth / WiFi |
| Power Requirements: | 6 C cell Alkaline, Ni-Cad, or NiMH batteries or an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR) |
| Wi-Fi/Bluetooth Connectivity: | Up to 150 ft. wireless range (depending on environmental factors) |
| Units Locking: | Established upon initialization and user selects either LB or KG |
| Overall LCD Display Size: | 3.5" W x 3" H (89 mm W x 76 mm H) |
| Weight Display: | 5 digits, seven segments, 0.875" (22.23 mm) |
| Height Display: | 4-digit, seven-segment, 0.5" (12.7 mm) |
| Body Mass Index Display: | 3-digit, seven-segment, 0.5" (12.7 mm) |
| ID Display: | 14 digits, 14 segments, 0.35" (8.89 mm) |
| Sensitivity: | 0.5 uV/division (0 to 3.0 mV/V), Class III |
| Operating Temperature: | 14 to 104 ºF (-10 to +40 ºC) |
| Signal Input Range: | 0 to 15mV max |
| Transducer Excitation: | 5.0 VDC |
| Number of Load Cells: | up to 4 each 350 Ω |
|---|---|
| Load Cell Cable Length: | 30 feet (9 meters) max |
| Resolution: | 10.000 divisions |
| NTEP: | Certificate of Conformance Number 13-011 |
| Division Value: | 1, 2 or 5 x 1, 0.1, 0.01, 0.001 |
| Sample Rate: | 1 to 100 samples per second selectable |
| Auto Zero Range: | 0.5 or 1 through 9 divisions |
| Weighing Units: | Pounds (lb), Pounds/Kilograms (lb/kg), Kilograms (kg), and Kilograms/Pounds (kg/lb) |
| Keyboard: | Membrane type with 19 keys |
| Enclosure Size: | 9.8" W x 6.8" H x 1.8" D (248.9 mm W x 172.7 mm H x 45.7 mm D) |
| Construction: | Painted Steel |
| Battery Life: | 7,560 weighments (with backlight fully ON) / 10,620 weighments (with backlight fully OFF) |
| LCD Viewing Range: | Up to 30 feet / 10 meters for weight digits |
