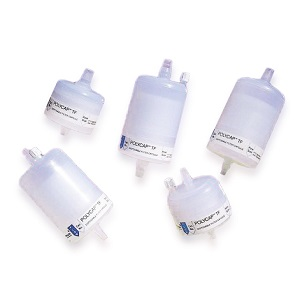

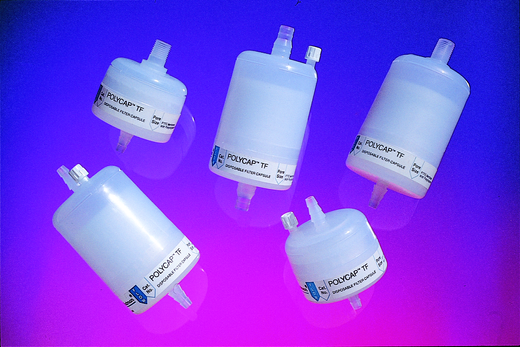

Polycap TF 75 with 3/8 in SB Inlet and Outlet
In Stock
Usually ships in 14 - 21 Days
Sale:
$165.51
1
/ Pack
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description
Whatman Polycap TF capsule filters from Cytiva are made with durable, hydrophobic polytetrafluoroethylene (PTFE) membranes in polypropylene housing for use with organic solvents and chemically aggressive solutions.
Whatman Polycap filter for aggressive solvents
Filtration of organic solvents and aggressive solutions requires a durable membrane for filtration without sample contamination.
Autoclavable Polycap TF capsule filters feature PTFE membranes with high chemical resistance. Common applications include venting, in-line filtration to sterilize* and remove particles from air/gas/liquid streams, filtration to ensure clean inert gases in vial filling lines, and isolation of exhaust from fermenters.
Polycap TF filters support use in the electronics, pharmaceutical, and biopharmaceutical industries because they are photo resistant and can be used to vent and perform in-line filtration for production systems in biological environments.
Features
- PTFE filter membrane is resistant to most solvents.
- Available in 0.1, 0.2, 0.45, and 1.0 µm pore sizes.
- 1.0 µm pore size capsules used for extended life and filtration of highly contaminated solutions.
- Manufactured according to ISO9001:2008 QMS standards.
- Autoclavable capsule filtration device if sterility is required.
Product Specifications
| Manufacturer Part 6700-7501: | Size 0.1 Micrometer |
|---|---|
| Manufacturer Part 6700-7502: | Size 0.2 Micrometers |
| Manufacturer Part 6700-7504: | Size 0.45 Micrometers |
| Housing: | Polypropylene (PP) |
| Operating pressure max: | 4.1 bar (60 psi) |
| Vent: | On inlet |
| Sterilization: | May be autoclaved at 121°C for 20 minutes. |
|---|---|
| Sealing: | Heat-fused |
| Support System: | Polypropylene (PP) |
| Dimensions: | 75 mm |
| Inlet Connector: | Stepped barb for 6 to 10 mm (1/4 to 3/8") tubing |
| Outlet Connector: | Stepped barb for 6 to 10 mm (1/4 to 3/8") tubing |
