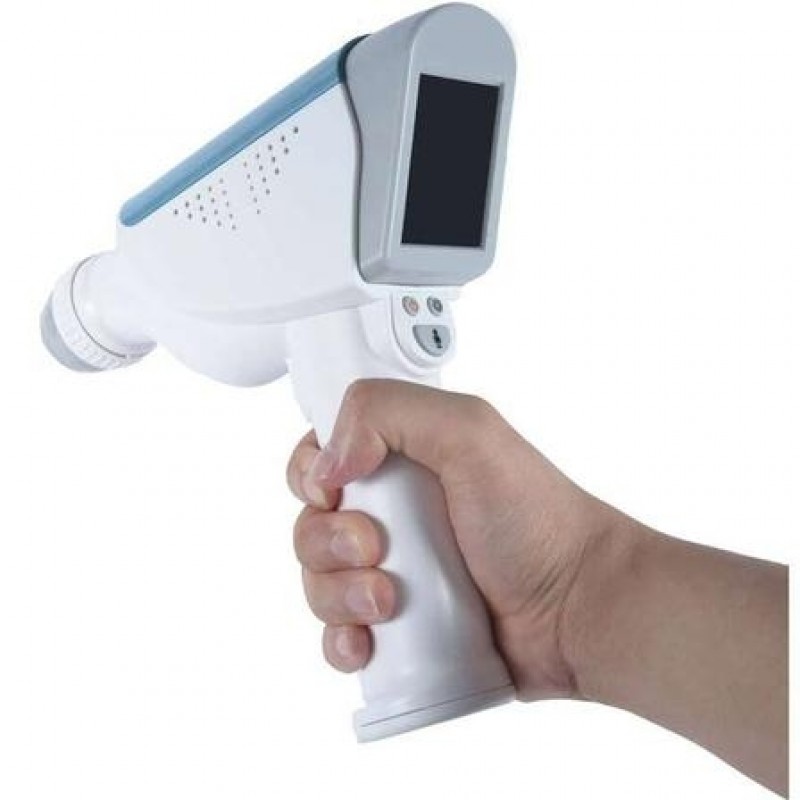

Caresono HD2 Handheld Bladder Scanner

Caresono

Caresono HD2 Handheld Bladder Scanner

Caresono
SKU: MD560146
MFG Part #: MD2
  • 3D Imaging Projection
  • Visual Indicators Provide Extra Guidance
  • Ultrasound & Easy Scan Modes Available
  • 2 Year Warranty
  • Hand-Held, light Weight Portable Device
    Ask an Expert

    Buy with confidence.Contact our experts today.

    In Stock
    Free Shipping
    Usually ships in 1 - 3 Days

    Price:
    $5,500.00 1 / Each

    Description

    Edan Caresono HD2 Handheld Bladder Scanner features ergonomic design, easy-to use interface and revolutionary 3D scanning technology that make the unit a real game changer. Experience the benefits of an extremely accurate, cost-saving, portable device to truly aim the workflow of your medical institution.

    Edan is one of the world’s leading manufacturers of medical diagnostic equipment valued and known for the development and implementation of highly efficient, new-age technological advancements. Same way Caresono HD2 Bladder Scanner shows 3D projections of the bladder with division into 12 segments. For additional versatility the scanning can be facilitated in either Ultrasound or Easy mode. The Scanner provides a high accuracy with 8-10% deviation while featuring three different programmed patient styles for men, women and children.

    HD2 Bladder Scanner is virtually a one-button operation unit. As soon as you have set the desired scanning mode, a conveniently placed scan button allows to begin the diagnostic process and start calculations as you press the button again. The auxiliary visual indicators provide extra guidance letting you know if the computed image is not optimal and this way ensure exceptional precision. Patient data entry is facilitated via a voice enrolment function, being automatically saved to the CD card.

    As the Scanner is intended for a non-invasive urinary bladder volume measurement it helps reduce the need of catheterization and therefore eliminate the risks of catheter-associated urinary tract infections. Higher efficiency and safer application lead to a great patient satisfaction. The small, built-in LCD monitor features a touch screen function for a simpler operation and improved workflow. In addition the Scanner has a slot for mini CD card allowing to facilitate patient data transfer to a PC or Tablet. The Scanner comes with a stand that allows for convenient and secure unit storage.

    Features

    • Handheld all in one design.
    • Small, compact design with easy operation and accuracy.
    • LCD touchscreen.
    • Scanning Mode: Mechanical sector-shaped scanning.
    • High Accuracy: 8 - 10% deviation - patented Calculus methodology and 3D scanning with 12 image sections.
    • Automatic volume calculation.
    • No need for calibration due to the patented core technology.
    • Two scan operation modes (easy / expert).
    • Voice recording.
    • Alarm function.
    • Distinct patient styles provided for men, women, and children.
    • Storage: TF Card information storage.
    • Multi-language.

    Product Specifications and Resources

    Height 15"
    Length 17"
    Width 9"
    Weight 16 lbs
    Power Source Rechargible Battery
    Display Type LCD Touch Screen
    Warranty 2 Years
    What's in the Box
  • One (1) Caresono HD2 Handheld Bladder Scanner
  • Unit Stand
  • Battery
  • Battery Charger
  • Warranty
  • User Manual
    Documents & Resources
