The Impulse 4000T unit is easy to use with three modes of operation. These modes are Constant, Burst, and Modulation and can help you manage your pain to get the relief you need. The pulse rate, pulse width, and amplitude are adjustable to lessen acute pains due to an accident or chronic conditions such as arthritis or other joint and muscle conditions.
For those who prefer an alternative to invasive medical procedures or the high cost drugs, this may be your solution. This TENS unit with timer is perfect for those seeking timed sessions with simple timed settings of 15 or 30 minutes to continuous mode. The user can pick the setting that’s right for them.
This device comes with everything needed to start your pain management therapy session.
Product Specifications and Resources
|Waveform||Asymmetrical biphasic square wave|
|Amplitude||0-100 mA (adjustable)|
|Pulse Rate||2- 150 Hz (adjustable)|
|Pulse Width||50 – 250 µS (adjustable)|
|Burst||8 pulses per burst/2 bursts per second|
|Modulation||Decrease/increase of set width of 50% over a five-second period|
|Timer||15, 30, Continuous minutes|
|Power Supply||9V Battery, E-block, type 6F22|
|Size||4.1” x 2.8” x 1” (105 mm x 70 mm x 24 mm)|
|Weight||3.1 oz (87 g)|
|Resistance Load||Data was recorded across a 500 ohm resistance load|
|Warranty||2 Year Limited|

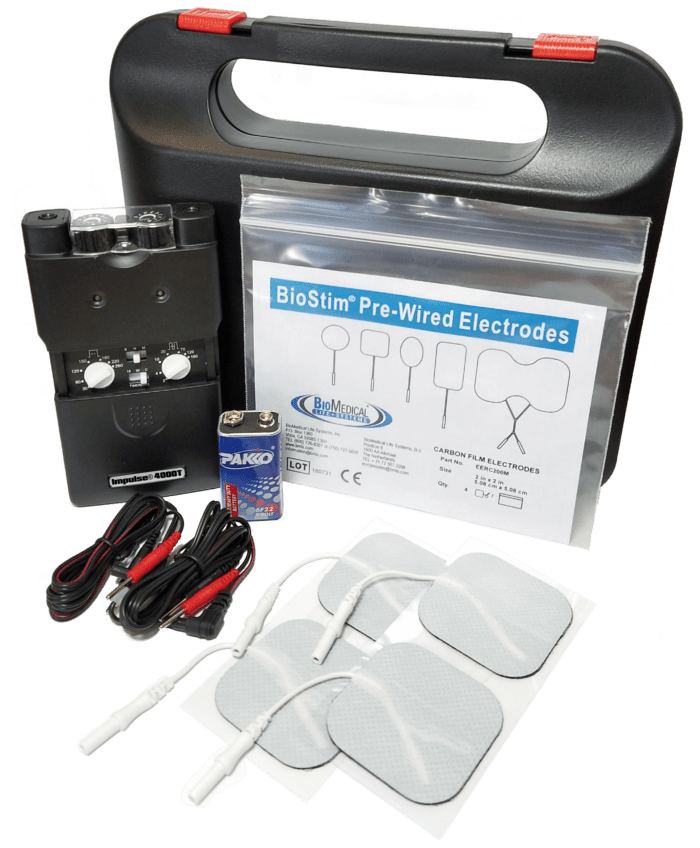

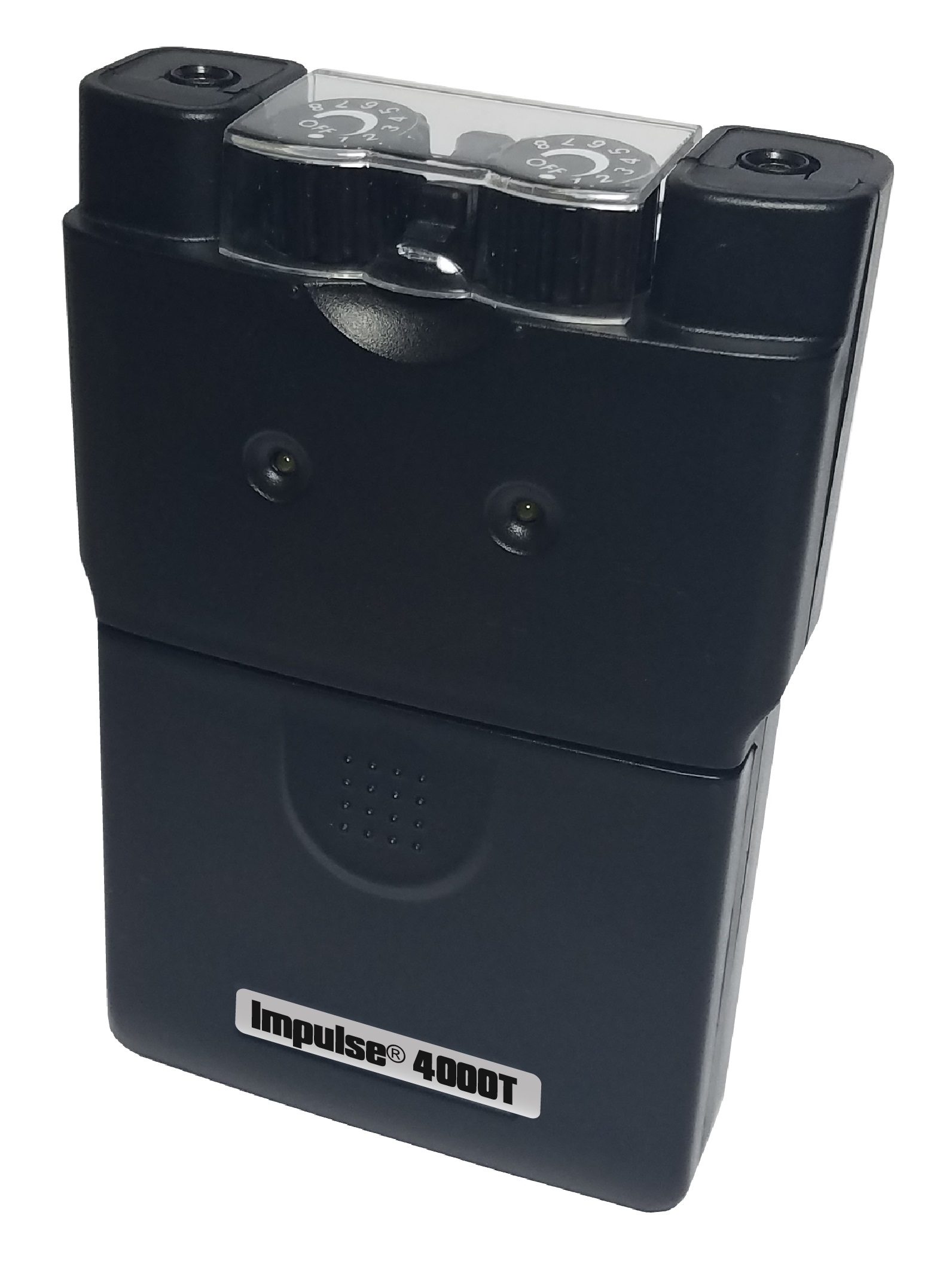

|Impulse 4000T device|
|(4) 2”x2” square reusable electrodes|
|Standard industry lead wires|
|(1) 9V battery|
|Plastic carry case|
