VitaScan PD Bladder Scanner
In Stock
Usually ships in 1 - 3 Days
Sale:
$9,600.00
1
/ Each
+
Free shipping
Recommended Accessories
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description

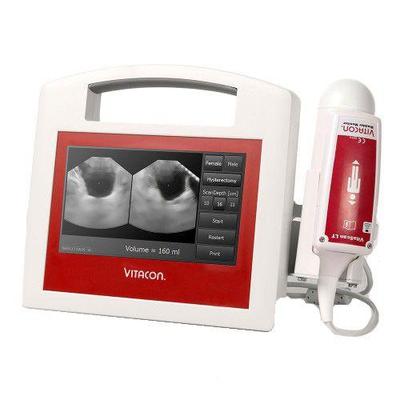

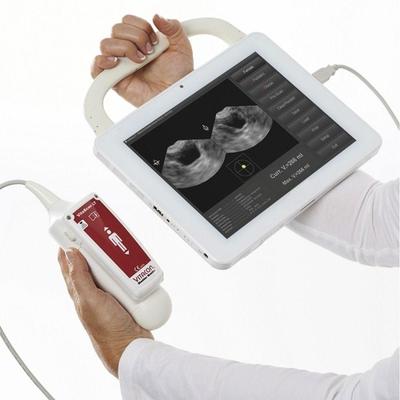

The Vitacon VitaScan PD Bladder Scanner (#100525PD1) includes a VitaScan LT scanner probe, VitaScan PD touchscreen console with built-in thermal printer, VitaScan calibration verification test tool, carrying case, and a bottle ultrasound gel.
Features
- Supplies a real-time image of the bladder.
- Multi-plane scan from one position on the body (3D).
- Switch between simple and advanced scan modes.
- Capable of identifying and tracking bladder location.
- Automaticlly measures volume and Post Void Retention (PVR).
- Manual measurement with auto recalculation.
- Scan depth is user selectable.
- Built-in thermal printer.
- 7" color touchscreen.
- Calibration is not required.
- Sonogtapher not required.
- Test tool included for functional verification.
- Removable memory.
Product Specifications
| Volume Range: | 0 - 1000 ml. |
|---|---|
| Accuracy: | ±10%. |
| Probe Frequency: | 2.35 MHz. |
| Scanning Method: | Sector, 180 degrees. |
| Rotation Positions: | Up to 24 rotating positions. |
| Sweep Angle: | 120 degrees. |
| Detection Depth: | 100, 160 or 230 mm. |
|---|---|
| Probe Dimensions: | 8.7 x 7.8 x 3.1 inches. |
| Power Consumption: | 0.5 A @ 5 V. |
| Display: | 7" color touch screen. |
| Storage Temperature: | -22° F to +122° F. |
| Printer: | Standard 58 mm (2 1/4 inches) Thermal. |
