Medical Body Composition Analyzer with Ultrasonic Height Measurement
In Stock
Usually ships in 1 - 3 Days
Sale:
$9,139.00
1
/ Each
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description

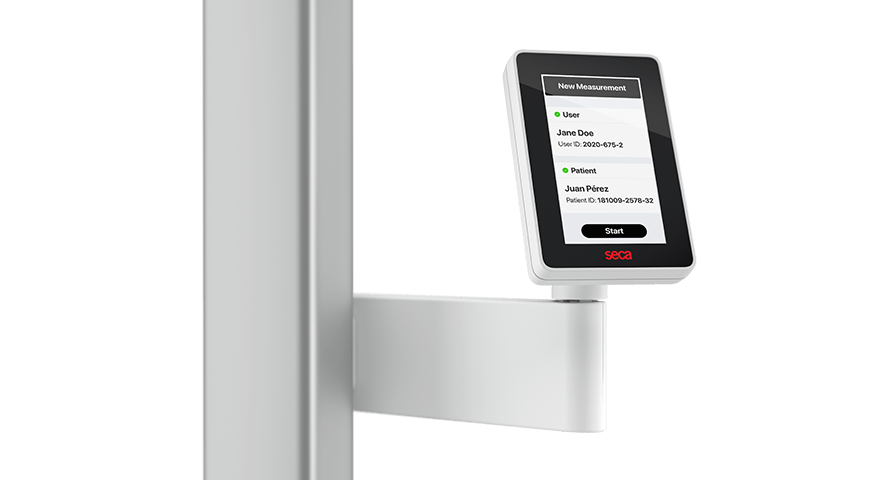

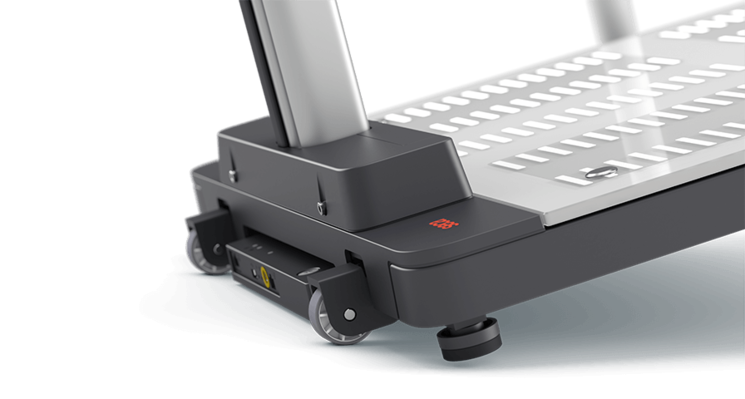

The seca mBCA 554 is the BIA solution for the exceptionally accurate and user-friendly determination of body composition. Its unique validation against whole-body MRI (skeletal muscle mass) and 4C model (fat mass) ensures reliable and medically relevant results. The cloud-based software takes on all administrative tasks for you, thus allowing full focus on your patients. The handrail with fixed grip positions guarantees the reproducibility of the measurement conditions.
Features
- Unique accuracy through whole body MRI validation (skeletal muscle mass) and 4C model (fat mass)
- Handrail with fixed handle positions: Measurements are reproducible and reliable
- Validation studies are bundled and transparently published in the European Journal of Clinical Nutrition 2013/2017, among others
- Comprehensive, personalized normal ranges based on over 3,000 multiethnic subjects
- Foot-mounted LEDs embedded in the platform show the various positions and give patients a sense of safety and orientation
- Cloud-based software with easy understandable graphics guarantees a complete picture of the body composition
- Precise and contactless height measurement in seconds using the latest ultrasonic technology
- EMR-validated: transmit measured data directly to any electronic medical record system or printer
Product Specifications
| Capacity: | 360 kg / 800 lbs |
|---|---|
| Graduation: | 50 g / 0.1 lb |
| Power supply: | Power adapter |
| Net weight: | 67.2 lbs / 30.5 kg |
| Options: | Ultrasonic height measurement |
| Ports: | LAN / USB bar code scanner / Wi-Fi |
| Product width: | 33.0 in / 839 mm |
| Product height: | 94.0 in / 2,387 mm |
| Product depth: | 25.6 in / 650 mm |
| Platform width: | 23.6 in / 600 mm |
|---|---|
| Platform height: | 2.8 in / 70 mm |
| Platform depth: | 18.4 in / 467 mm |
| Measuring range with attached handrail: | 40 - 87 in / 100 - 220 cm |
| BIA measuring method: | 8-point Bioelectrical Impedance Analysis |
| BIA measuring frequency: | 1; 2; 5; 10; 20; 50; 100; 200; 500 kHz |
| BIA measurement segments: | Right arm, left arm, right leg, left leg, right half of body, left half of body, torso |
| BIA measuring electricity: | 100 µA |
| BIA measuring period: | 24 seconds |
