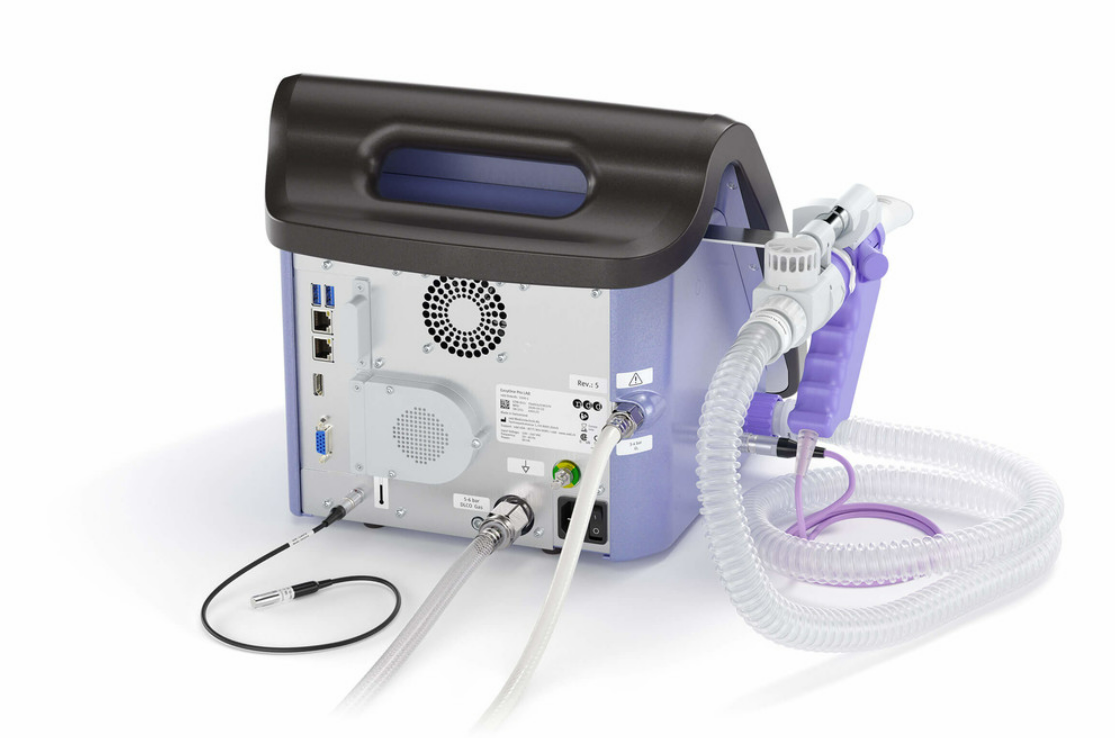

EasyOne Pro LAB
In Stock
Usually ships in Drop Ship
Sale:
$30,515.00
1
/ Each
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description

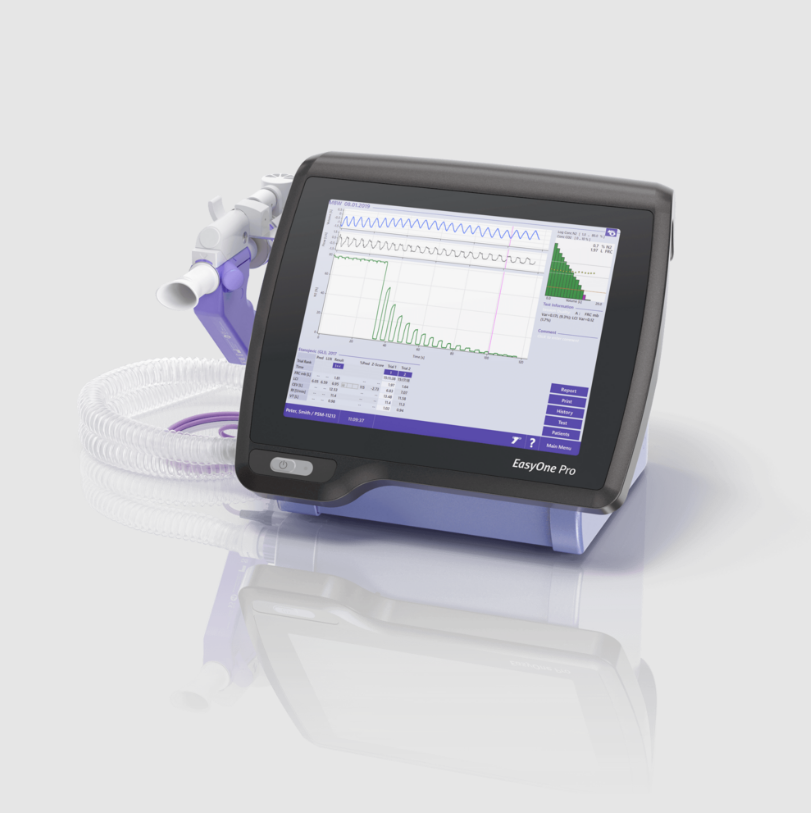

EasyOne Pro LAB provides the most efficient and accurate way to complete lung function testing. With EasyOne Pro LAB you can accurately measure the Lung Clearance Index (LCI) using Multiple Breath Nitrogen Washout (MBW) in various settings. Engineered using our patented TrueFlow and TrueCheck technology, the EasyOne Pro LAB eliminates all common sources of error and saves time. No need for a Body Box.
Patient and User-centered Design
The EasyOne Pro LAB is both patient-friendly and easy to maintain. For MBW you only need an oxygen supply, no expensive SF6 gas is required. Medical professionals can perform annual maintenance themselves in only 10 minutes.
Calibration-free TrueFlow Technology
Extremely robust and accurate flow results are delivered without calibration thanks to our TrueFlow technology integrated into the EasyOne Pro LAB.
Self-Quality Control through TrueCheck Technology
With EasyOne Pro LAB you can fully focus on the patient. TrueCheck ensures that each gas measurement is accurate without calibration and warm-up time.
Compact & Lightweight Design
Weighing only 18 lbs. (9kg), the EasyOne Pro LAB is compact & durable – without compromising quality. It easily fits in any office setting.
Features
- Always safe & ready to test with TrueCheck.
- Diffusion capacity results in 3 minutes.
- User- and patient-friendly design.
- Ideal also for claustrophobic and obese patients.
- Quality grades based on NLHEP and ATS/ERS 2005 and 2019 for all tests.
- ATS/ERS interpretation decision tree.
- GOLD/Hardie, NICE, JRS and NLHEP.
- Diagnose Asthma, COPD, Emphysema and pulmonary vascular disorders.
- Build your own provocation protocols.
- Modify existing provocation protocols.
- Export and load protocols onto other devices.
- Calibration-free with proven long-term stability.
- Checks gas-sensor linearity and delay.
- Checks for leaks and gas concentration.
- Patented technology.
- Proven long-term stability.
- Contact and resistance-free measurement.
- Excellent accuracy and robustness.
- Patented technology.
- The filter keeps the ambient environment clean for technicians and patients
- The Spirette protects the flow sensor from contamination.
- Fully passes 24 Waveform tests as required by the ATS/ERS standard.
- All parts exposed to the patient's breath are single-patient-use.
- Sensor is protected from contamination by ndd breathing mouthpiece.
- Only simple surface cleaning required of the device.
- No special storage conditions required for single-patient use Spirettes and adapters.
- Integrated into all major EMR/EHR systems via HL7, XML, GDT or API.
- References for integration available on request.
- Simple local or SQL server database.
- Review test results from any PC using EasyOne Connect.
- USB / Network printer compatibility.
- Easily integrate into any network.
- USB, HDMI, Ethernet.
- Optional WiFi dongle.
- Windows Defender Antivirus and Firewall.
- Operating system updates.
- Encrypted database export.
- User authentication with automatic log off.
- FDA Approval in 2017 with cyber security documentation.
- Access and measure raw data.
- Advanced Data Analysis.
- Fully integrated.
- Fully conformant to ATS/ERS 2005 and 2019 and ISO standards.
- Worldwide approvals.
- CE Approval.
- FDA Approval.
- Japan Approval.
Product Specifications
| Country of Origin: | Switzerland |
|---|---|
| Flow Rate: | ± 16 l/s |
| UNSPSC Code: | 42271602 |
| Quality, Medical Devices & Electrical: | ISO 13485, ISO 14971, IEC 62366, IEC 62304, ISO 26782, ISO 23747, IEC60601-1, IEC 60601-2, ISO 10993-1 |
| FDA: | 510(k) market clearance |
| MDD 93/42/EEC: | CE marked |
| Associations & Institutes: | ATS/ERS 2019 and 2005, NIOSH/ OSHA, SSA Disability |
| Graphical user interface: | Brazilian Portuguese, Chinese, Croatian, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Vietnamese |
| DLCO: | 9% to 11% medical grade helium; 0.27% to 0.33% medical grade carbon monoxide; 18% to 25% medical grade oxygen, balance nitrogen; The DLCO test requires a gas mixture within an accuracy range of <2% |
| MBW: | Oxygen for hospital use |
| Printing options: | PCL standard, direct-to-printer or over the network |
| Data management: | EasyOne Connect (SQLite, MS SQL Server) |
|---|---|
| Export/EMR: | HL7, XML, GDT, via USB, LAN Network |
| Hardware Interface: | Ethernet port, USB, possibility to upgrade to WLAN |
| No. of tests: | > 10‘000 tests |
| Age range: | Spirometry > 4 years, DLCO > 6 years, MBW > 4 years or > 18 kg |
| Dimensions: | 27 H x 33.5 W x 27 D cm3 |
| Weight: | 8 kg |
| Device classification: | Protection class I, Type BF applied part |
| Operating conditions: | Temp 10-40 °C/ 50-104 °F, Rel. Humidity 30-75%, no condensation, Atmosph. Pressure 700 - 1060 hPa |
| Power Consumption: | Up to 80 VA |
See any errors on this page? Let us know
Videos for this product
Frequently Asked Questions (FAQs)
The EasyOne Pro LAB is exactly the same as the EasyOne Pro, except that it has the capability to perform the multi-breath washout (MBW) test. This test requires additional sensors and the use of 100% Oxygen.
You can find the product specification on the respective product pages. The specification contains a list of all supported normal values.
The DLCO value can be adjusted for hemoglobin, altitude and the COHb concentration and CO back pressure.
Our research software WBreath can be used to perform a slope analysis.
BTPS Correction is used to convert flow and volume measured at ambient conditions to the conditions within the lungs. Ambient conditions are called ATP (ambient temperature, pressure); the conditions within the lungs are called BTPS (body temperature, pressure, water vapor saturated).
Yes. Connecting the device to your network allows several additional benefits.
All EasyOne products are designed to require no calibration and minimal maintenance. The device is designed to remain in calibration throughout its lifetime. No calibration procedures are required prior to testing. Our TrueFlow ultrasonic technology assures accurate volume and flow measurements every time. And our unique automated TrueCheck process assures that all gas measurements are accurate for each test. You may choose to use the optional 3-liter calibration syringe to verify volume and flow accuracy, as recommended by ATS/ERS.
Yes. ndd’s products are all completely HL7 compatible enabling connectivity to virtually all EMRs. We would be happy to work with you to configure an interface for your particular EMR system. We are also constantly working to expand our library of dedicated integrations. For more information on connectivity with your particular EMR contact our Technical Support team.
A PFT session including spirometry and DLCO generally takes less than 20 minutes.
The EasyOne Pro/LAB is compatible with virtually all PC-style USB printers, without the need for external driver installation. The printer can be connected directly to a USB port on the rear of the device. We can sell you a printer with the device, or you can supply your own.
Spirette: Each test performed requires the use of a spirette. This is a single-patient-use mouthpiece which ensures that no contamination can reach the internal flow path of the device. This means that no cleaning is required between patients, and no calibration, ever. Simply toss the spirette after each test session.
The device itself is self-contained and measures only 270 x 335 x 270 mm (10.6 x 13.2 x 10.6 inches) (h x w x d). No additional PC, monitor, keyboard or control unit is required. This allows it to easily fit on a counter. You will also need to allow for storage of the gas tank(s) which come in a variety of sizes, and can usually fit comfortably in a corner, or under the counter.
The EasyOne Pro/LAB is designed to require minimal maintenance. The annual replacement of four external components is ALL that is required to keep the system running smoothly. These components are available as a convenient kit. Installation is done in minutes and requires no special tools.
Data can safely be exported by using the “Export Data” feature or “Backup” feature within the Storage tab in the configuration.
