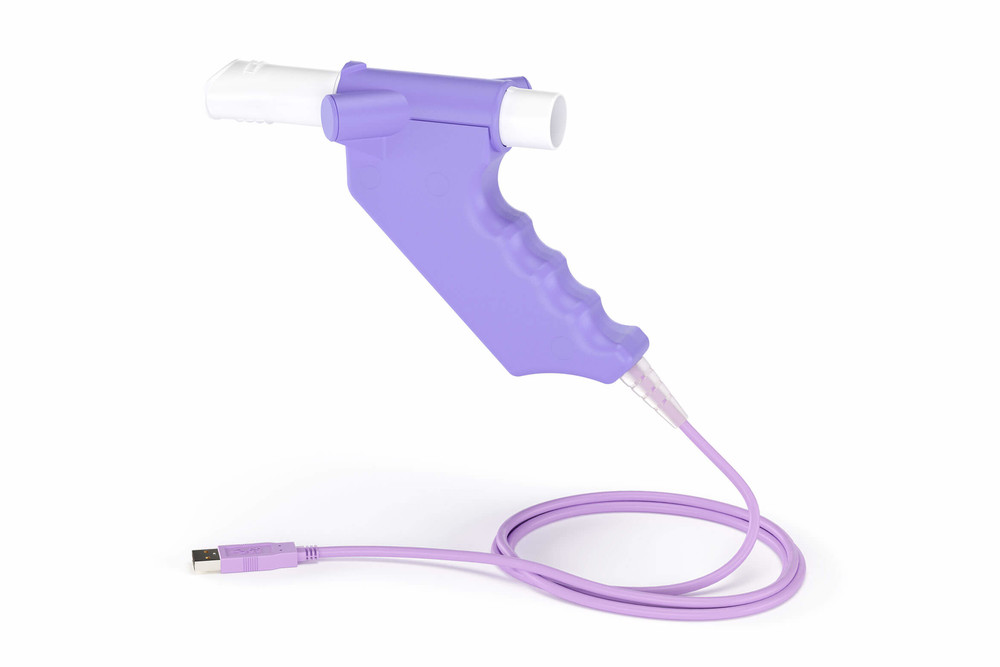

Easy On PC Spirometry System
In Stock
Usually ships in Drop Ship
Sale:
$1,872.50
1
/ Kit
Frequently Bought Together
Total Price:
$1,992.55
Ask an expert
Buy with confidence.
Contact our experts today.
Buy with confidence.
Contact our experts today.
Description
NDD Easy on-PC Spirometry System provides a truly advanced solution for spirometric measurements combining exceptional portability and excellent functionality. The unit is intended for the use of patients of 4 years and older in hospitals, as well as frontline applications such as pharmacies or first aid centers.

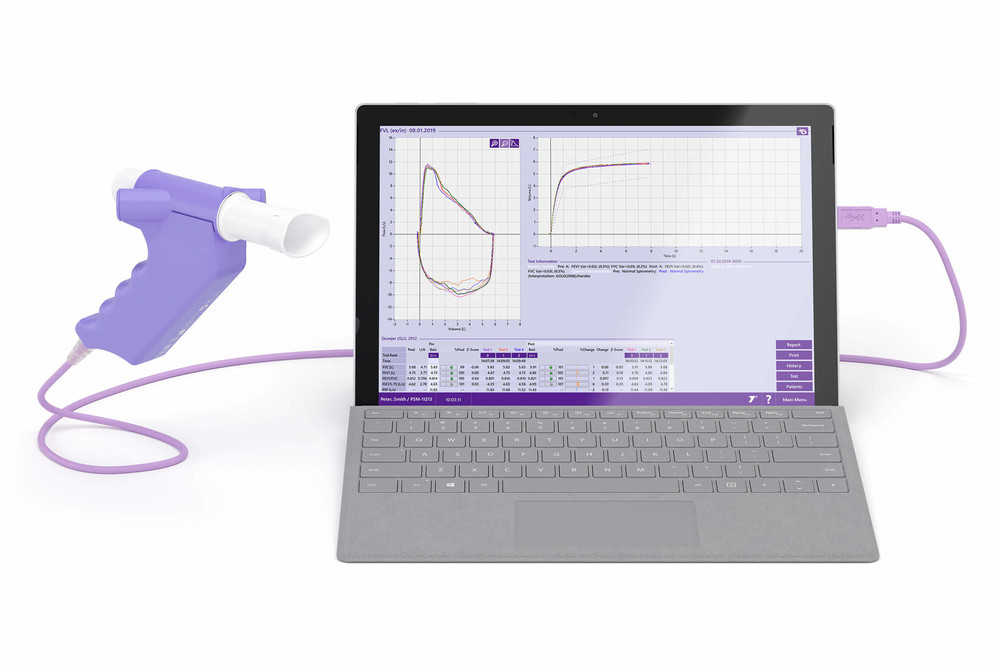

Extended Flexibility: The Easy on-PC Spirometry System is truly simple and extremely convenient to use. It includes a spirometry sensor that utilizes TrueFlow technology and comprehensive software. The Sensor connects to a PC, laptop, or tablet via a USB port and operates as a full-capacity Spirometry System. The Easy on-PC software contains data management functions such as displaying, reporting, and exporting of test data. For enhanced diagnosis capability, the trending function allows for inspiratory and expiratory real-time curve display. The Easy on-PC System offers a comprehensive list of selectable predicted values and an automated interpretation that can be activated or deactivated at the user’s choice. In addition, the Easy on-PC software comprises a report function that allows printing test reports in A4 format. A variety of incentive screens help facilitate a smooth testing process when working with pediatric patients. For even greater flexibility, the System is multilingual.
Revolutionary TrueFlow Technology: The Easy on-PC Spirometry System has been designed with the implementation of a most advanced TrueFlow ultrasound technology which performance overrides all the available traditional methods of flow measurement. This ultrasound technology mechanism is based on the assessment of the sound pulse traveling time between the two transducers. The transit time of each sound pulse is precisely measured with a digital clock. The gas flow is then calculated based on the measured upstream and downstream transit times. This way the flow measurements are independent of gas composition, pressure, temperature, and humidity thus eliminating errors due to these variables. The TrueFlow technology eliminates moving parts in the Spirometer construction, does not require code entry or screens to catch sputum, and does not include any disposables that might require calibration. As a result, TrueFlow technology delivers a matchless gain to the end user and helps facilitate FVC, FVL, SVL, MVV, post-testing, and tidal breathing functions.
Features
- Includes Spirometry and challenge Testing.
- Calibration-Free TrueFlow Technology.
- Comprehensive Software for Data Display, Storage, and transfer.
- Automatic ATS/ERS Interpretations.
- Real-Time Data Trending Capacity.
Product Specifications
| Usage: | Single Use |
|---|---|
| User: | Adult / Child |
| Valve Type: | Ultrasonic transit time |
| Test Type: | FVC, FVL, SVL, MVV, post-testing, tidal breathing |
| Report Type: | A4 |
| Volume Range: | ±12 l |
| Flow Range: | ±16 l/s |
| Accuracy: | Volume |
| Sensor Type: | Ultrasound time-tracking |
| Interpretation: | Automated ATS/ERS |
|---|---|
| Parameters: | FVC, FVL, slow VC, MVV, Pre/Post, FVC, MVV6, FEV6, FEV1, FEV1/FVC, FEV1/VCmax, FEV1/FEV6, FEF25 (MEF75), FEF50 (MEF50), FEF75 (MEF25), FEF25-75% (MEF25-75%), PEF, FET, FIVC, PIF, ERV, IRV, Pre/Post % variation, lung age (only the most important parameters are listed) |
| Predictive Norms (Adults): | NHANES-III, Knudson_83, Knudson_76, Crapo, Morris, ERS (ECCS/EGKS), Forche (Austria), Sapaldia (Switzerland), Roca (Spain), Berglund, Gulsvik, Hedenström, Gore, Cherniak (for MVV only) |
| Predictive Norms (Children): | Dockery (Harvard), Hsu, Zapletal, Polgar, Hibbert |
| Connectivity: | USB |
| EHR Compatibility: | Yes |
| Requirements Operating system: | Windows XP SP3, Windows Vista, Windows 7 Windows 8 (32 and 64 bit); Processor |
| Standards & Certifications: | CE Declaration of Conformity |
| Warranty: | 3 Years |
See any errors on this page? Let us know
Frequently Asked Questions (FAQs)
You can find the product specifications on the respective product pages. The specification contains a list of all supported normal values.
BTPS Correction is used to convert flow and volume measured at ambient conditions to the conditions within the lungs. Ambient conditions are called ATP (ambient temperature, pressure); the conditions within the lungs are called BTPS (body temperature, pressure, water vapor saturated).
Yes, the EasyOne Connect software can be downloaded onto as many laptop, PC, or tablet devices as desired. There are no license requirements.
No, a laptop, PC, or tablet must be purchased separately. The device specifications can be found in the Requirements PC/Laptop section under Specifications on the Easy on-PC page.
Please consult Section 1.11 in the manual here for the latest computer requirements. Note that for the Easy on-PC latest version, V02.02.00.14 or greater, the following operating systems are no longer supported: Windows XP SP3 and Windows Vista.
The EasyOne Connect software for the Easy on-PC offers a variety of animated screens for children as well as adults. These incentive screens, in addition to the real-time curves, encourage the patients to help them achieve high quality spirometry results.
Data can safely be exported by using the “Export Data” feature or “Backup” feature within the Storage tab in the configuration.
No. All EasyOne products are designed to not require calibration. ndd’s patented TrueFlow technology is the only technology proven to remain stable over its lifetime. A number of independent papers have been published that confirm this long-term stability.
Yes, ndd’s products are all completely HL7 compatible through EasyOne Connect, the free companion PC software, enabling connectivity to virtually all EMRs. We would be happy to work with you to configure an interface for your particular EMR system. We are also constantly working to expand our library of dedicated integrations.
